Dimensions:

Length To Fork Face: 21.49ft in
Ground Clearance: 1.67ft in
Width Over Tires: 8.26ft in
Overall Height: 8.31ft in
Wheelbase: 10.67ft in
Height - Top Of Hood: 81.12in
Height: 8.31ft in
Length - Front Of Tire: 17.03ft in
Turning Radius - Over Tires: 12.47ft in
Turning Radius Outside Tires: 12.47ft in
Wheel Base: 10.66ft in
Width: 8.25 ft
Length - Fork Face: 19.61ft in
Rear - Overhang: 4.17 ft
Turning Radius - Over Forks: 17.9ft in

Lift:

Max Lift Height: 44.3ft in
Max Forward Reach: 30.19ft in
Max Load At Max Height: 8818.5lb
Max Load At Max Reach: 3306.94lb
Max Lift Capacity: 8818.5lb

Specifications:

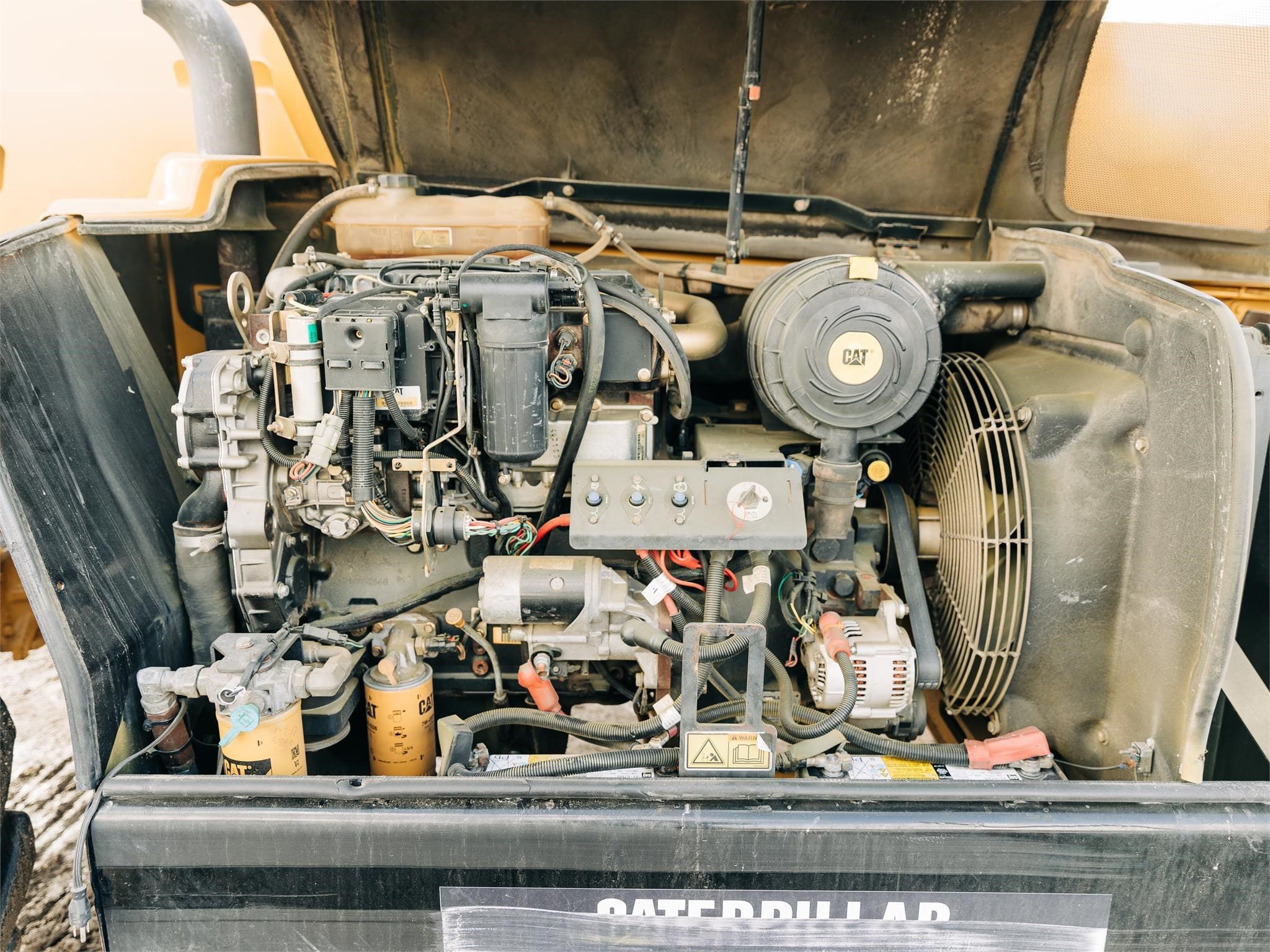

Engine:

Engine Make: 2236
Engine Model: 3054E
Gross Power: 99hp
Net Power: 94.9hp
Power Measured @: 2200rpm
Max Torque: 302.5lb ft
Torque Measured @: 1400rpm
Displacement: 268cu in
Bore: 4in
Stroke: 5in
Engine Model: Cat 3054E
Maximum Torque: 303lb ft

Operational:

Operating Weight: 23148.6lb
Fuel Capacity: 26.5gal
Hydraulic System Fluid Capacity: 17.2gal
Operating Voltage: 12V
Alternator Supplied Amperage: 90amps

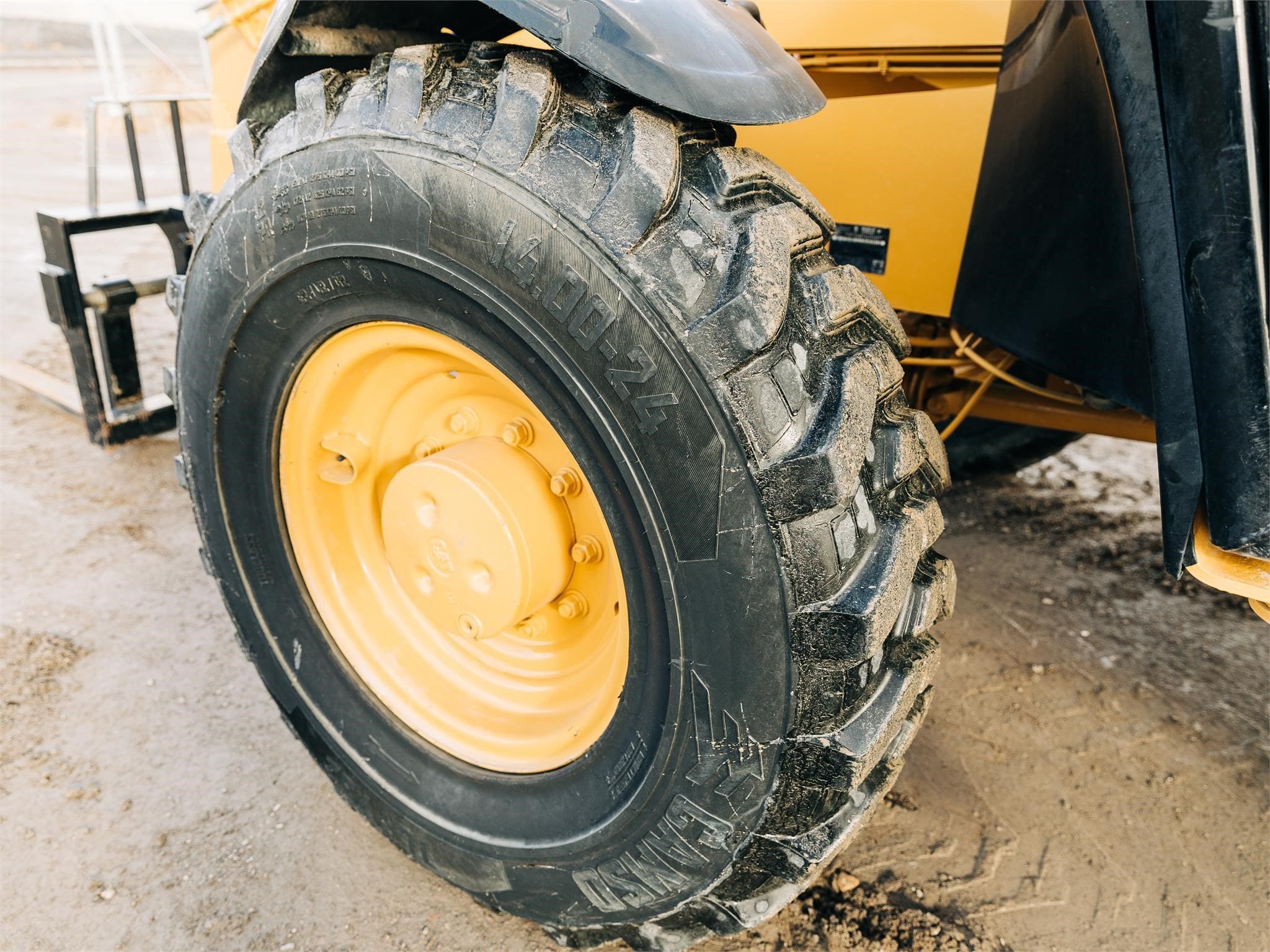

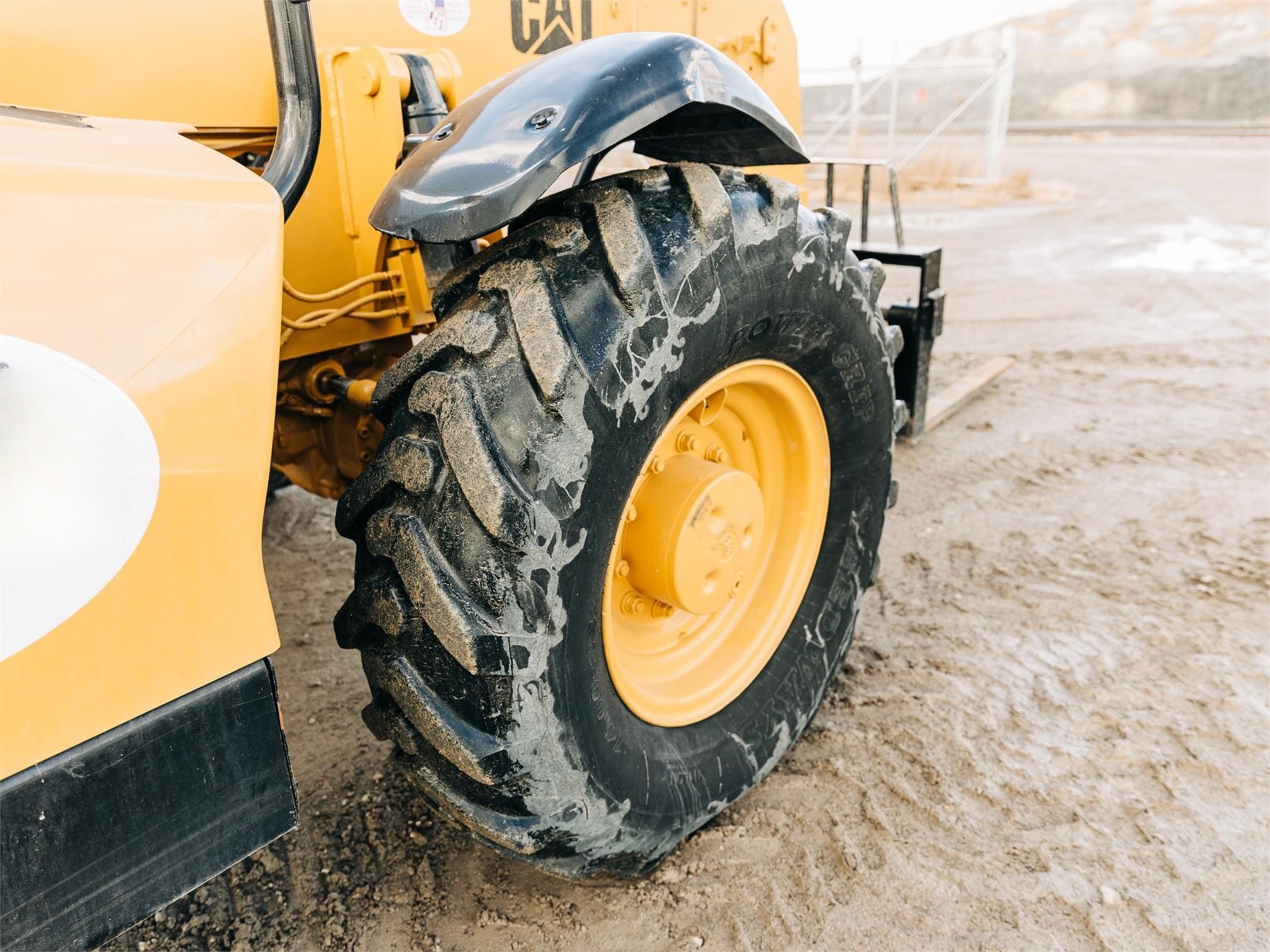

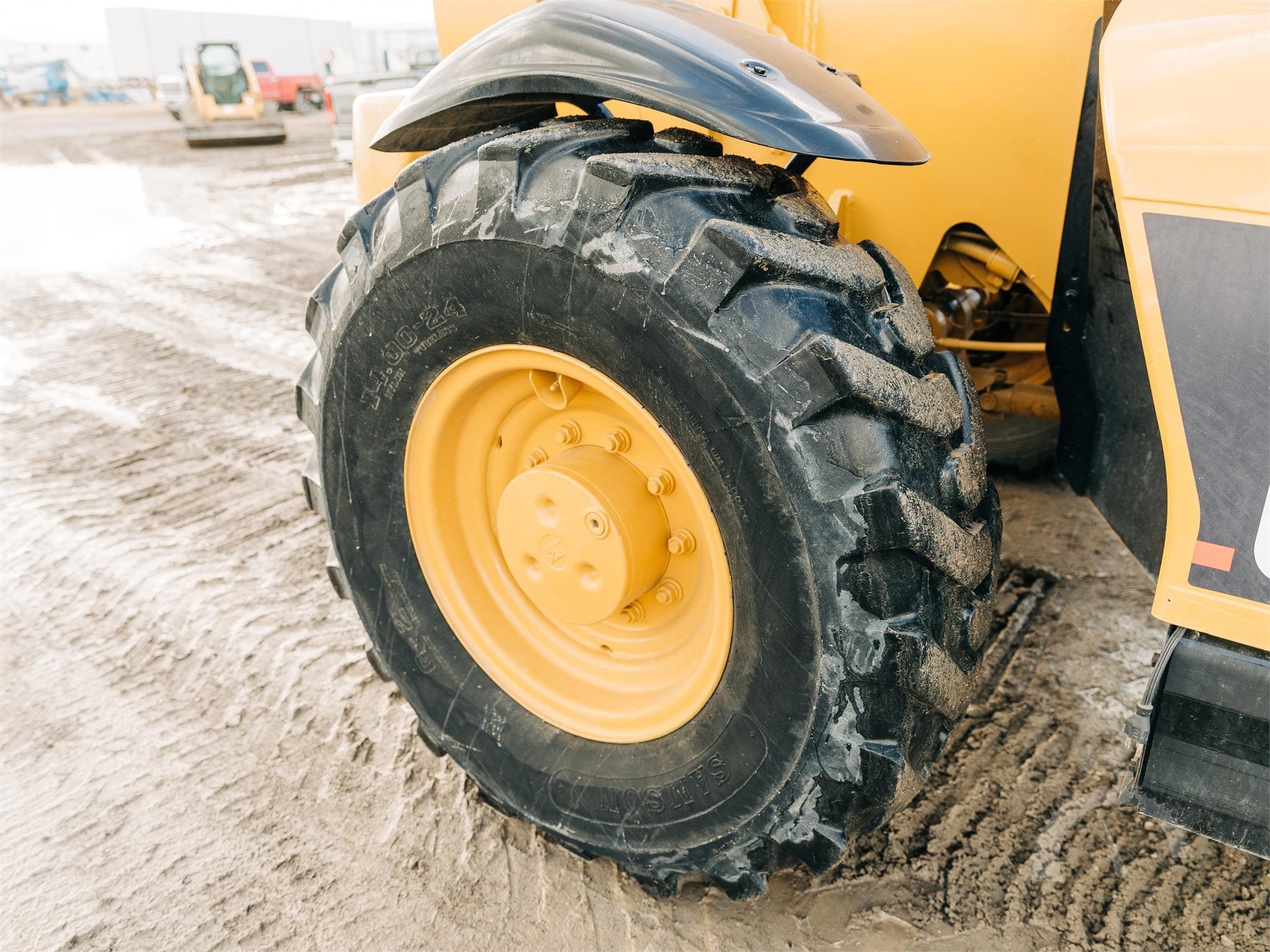

Tire Size: 14.00-24

Transmission:

Number Of Forward Gears: 4
Number Of Reverse Gears: 3
Max Speed - Forward: 19.9mph
Max Speed - Reverse: 12.5mph

Weights:

Operating Weight: 24978lb

Hydraulic:

Pump Flow Capacity: 29.9gal/min
Relief Valve Pressure: 3626psi

Hydraulic System:

Pump Type: Variable Displacement Axial Piston Pump
Maximum System Pressure: 3625 psi
Maximum Pump Flow: 40 gal/min
Auxiliary Hydraulic Supply: 24 gal/min

Brakes:

Foot Brake: 4-wheel

Operating Specifications:

Rated Load Capacity: 9000lb
Maximum Lift Height: 44.3ft in
Maximum Forward Reach: 30.2ft in
Top Travel Speed: 25mph
Load At Maximum Reach - No Stabilizers: 1700lb
Load At Maximum Height - No Stabilizers: 3000lb
Load At Maximum Height - Stabilizers Up: 3000lb
Load At Maximum Height - Stabilizers Down: 9000lb
Load At Maximum Reach - Stabilizers Up: 1700lb
Load At Maximum Reach - Stabilizers Down: 4000lb

Service Refill Capacities:

Fuel Tank: 23gal
Hydraulic Tank: 15gal

Boom Performance:

Boom Up: 17 s
Boom Down: 13 s
Tele In: 14 s
Tele Out: 14 s
Crowd Forward - Dump: 3 s
Crowd Backward: 3 s
Combined - Up And Out: 36 s
Combined - Down And In: 20 s

Transmission Speeds:

Forward - 4: 25mph
Forward - 1: 4mph
Forward - 2: 7mph
Forward - 3: 13mph
Reverse - 1: 4mph
Reverse - 2: 7mph
Reverse - 3: 13mph
