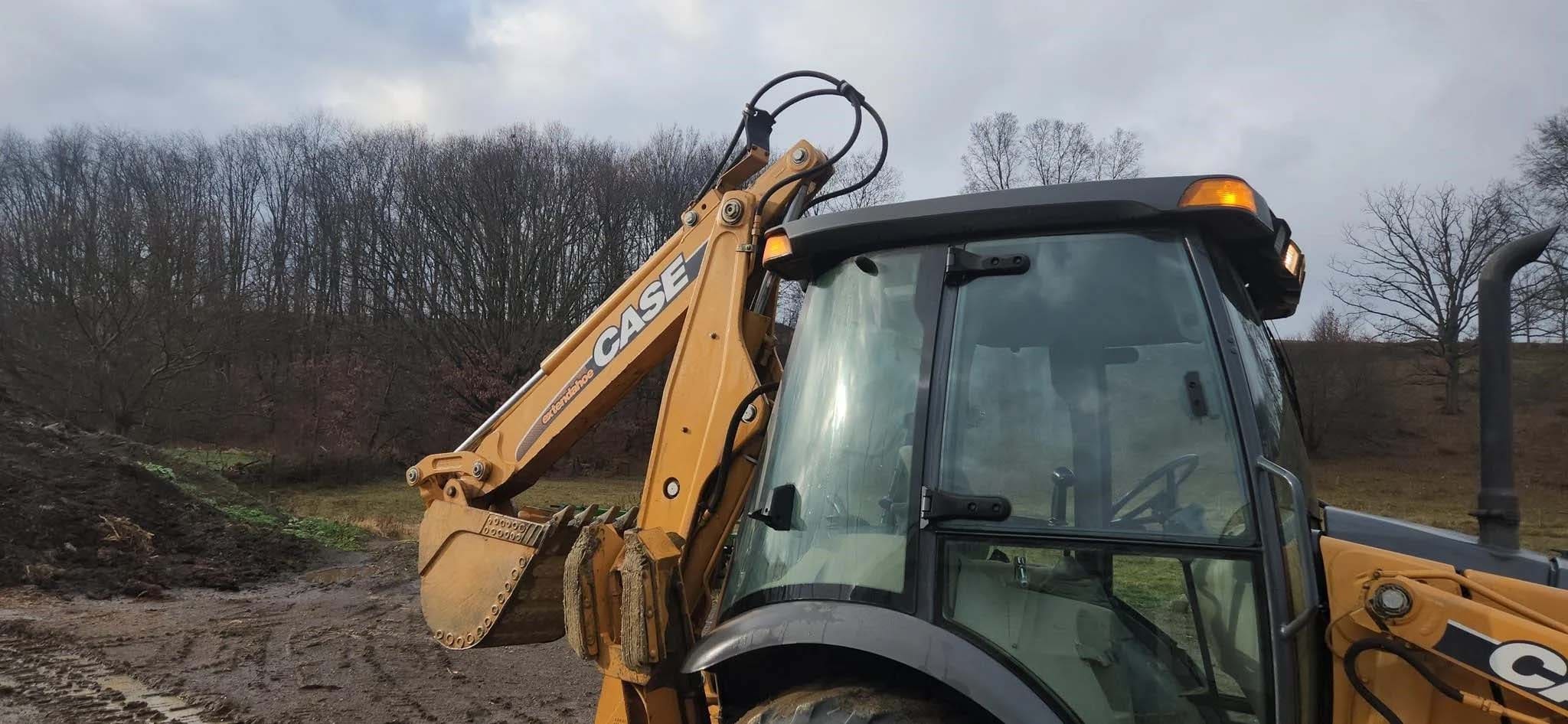

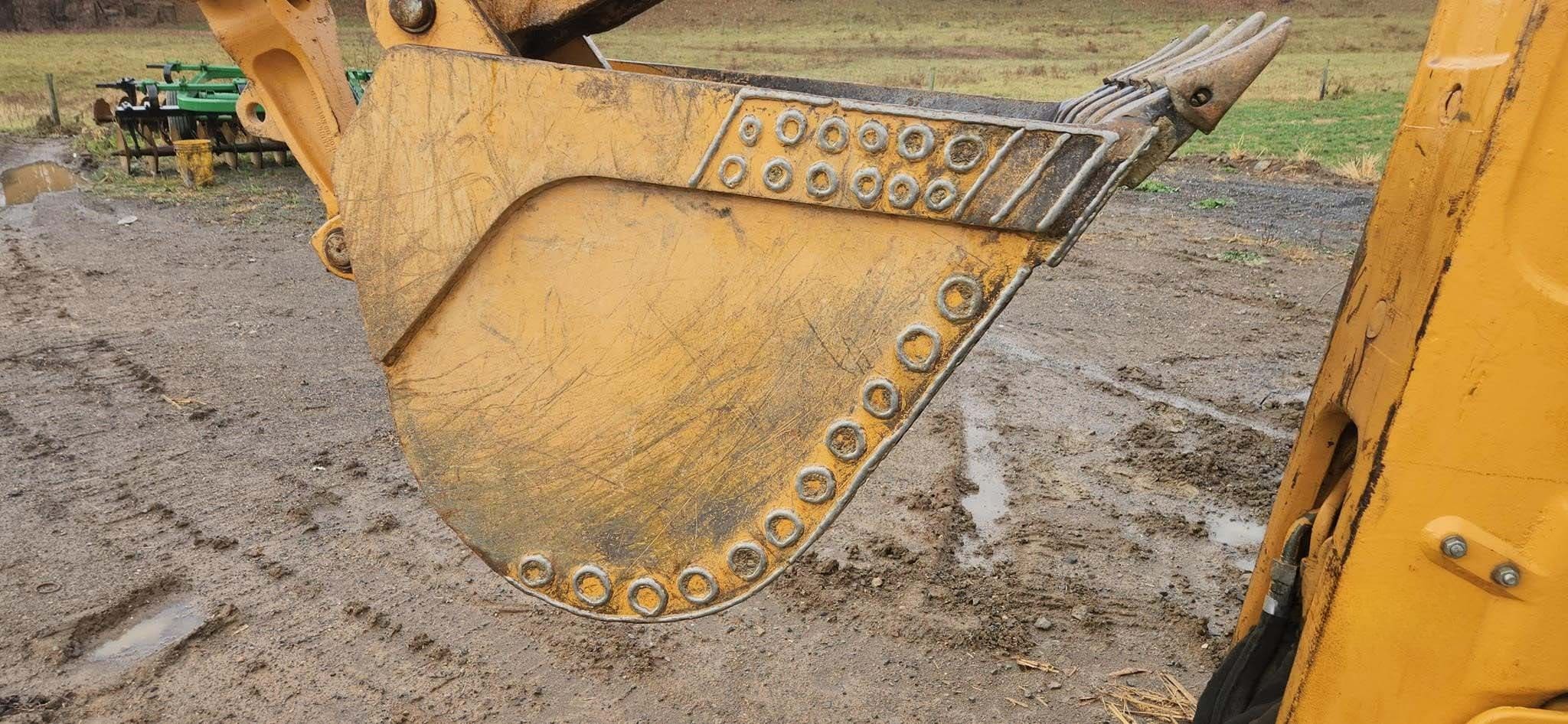

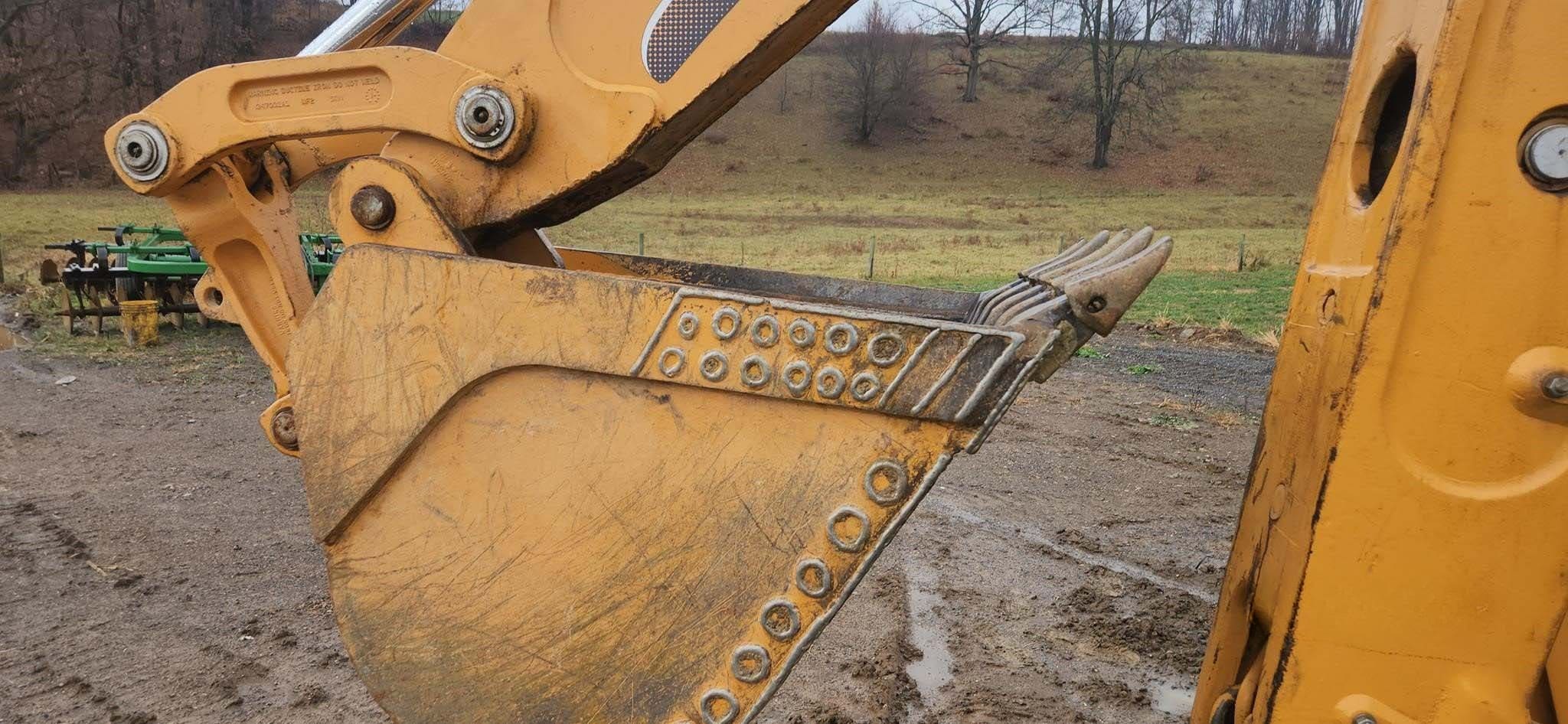

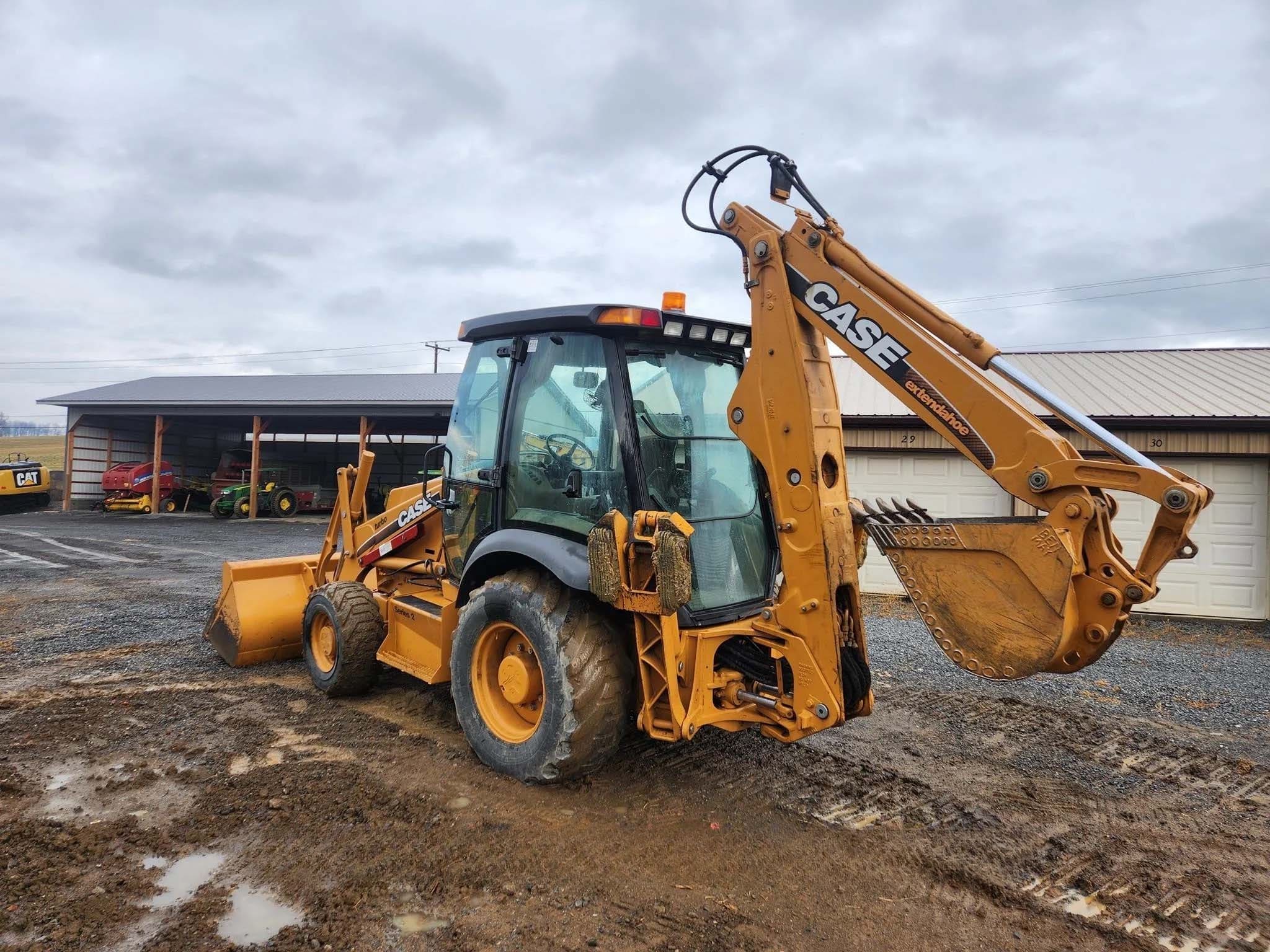

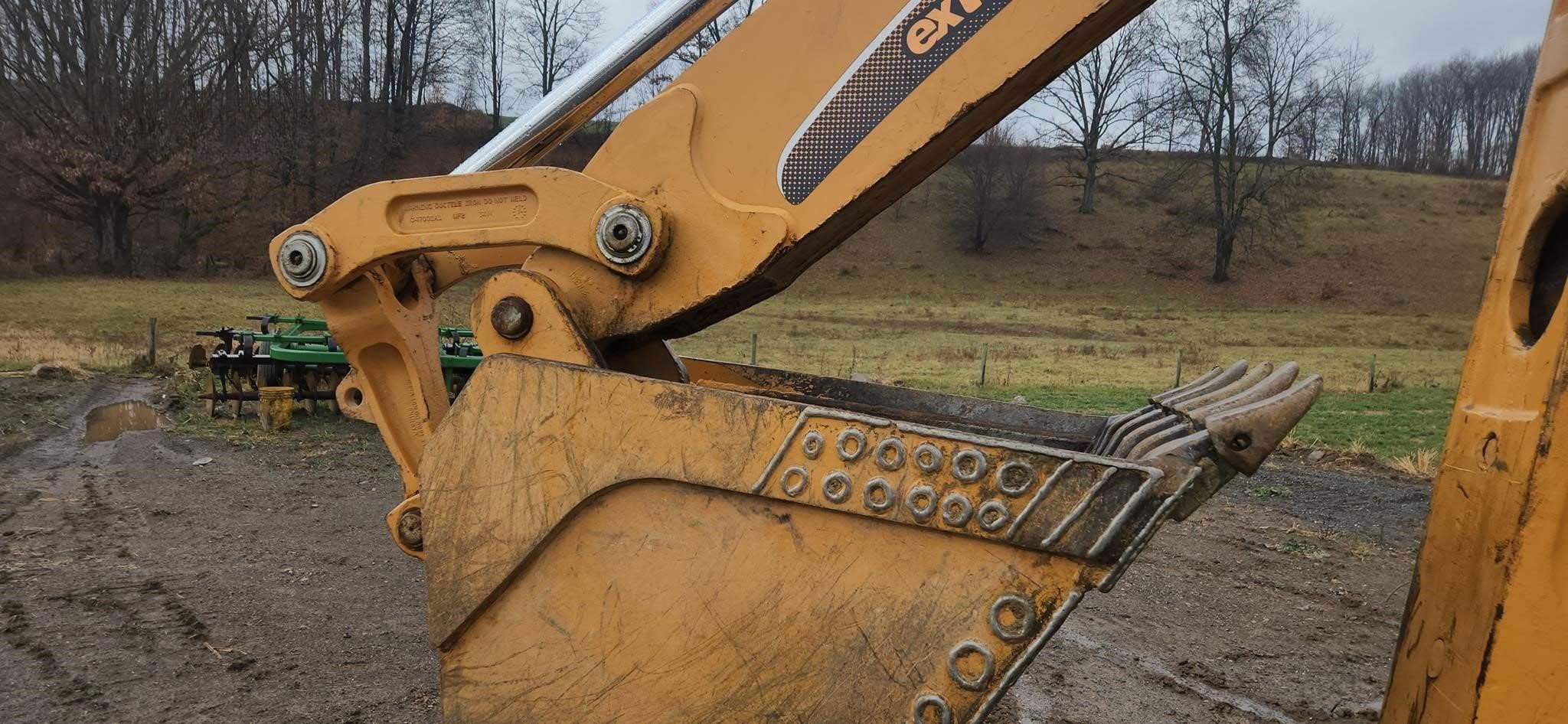

Backhoe

Bucket Dig Force: 12821 lbs (5,816 kg)
Bucket Dig Force - Extended: 12821 lbs (5,816 kg)
Dig Depth: 14.5 ft (4 m)
Dig Depth - Extended: 18.3 ft (5 m)
Load Height: 8.8 ft (2 m)
Load Height - Extended: 13.3 ft (4 m)
Loading Height: 11.2 ft (3 m)
Max Digging Depth: 14.4 ft (4 m)
Reach at Load Height - Extended: 11.5 ft (3 m)
Reach From Swivel: 18.1 ft (5 m)
Reach From Swivel - Extended: 21.9 ft (6 m)

Dimensions

Ground Clearance: 1.3 ft (0 m)
Height to Top of Suspended Cab: 8.9 ft (2 m)
Transport Length: 22.9 ft (7 m)
Transport Width: 7.2 ft (2 m)
Wheelbase: 7.1 ft (2 m)

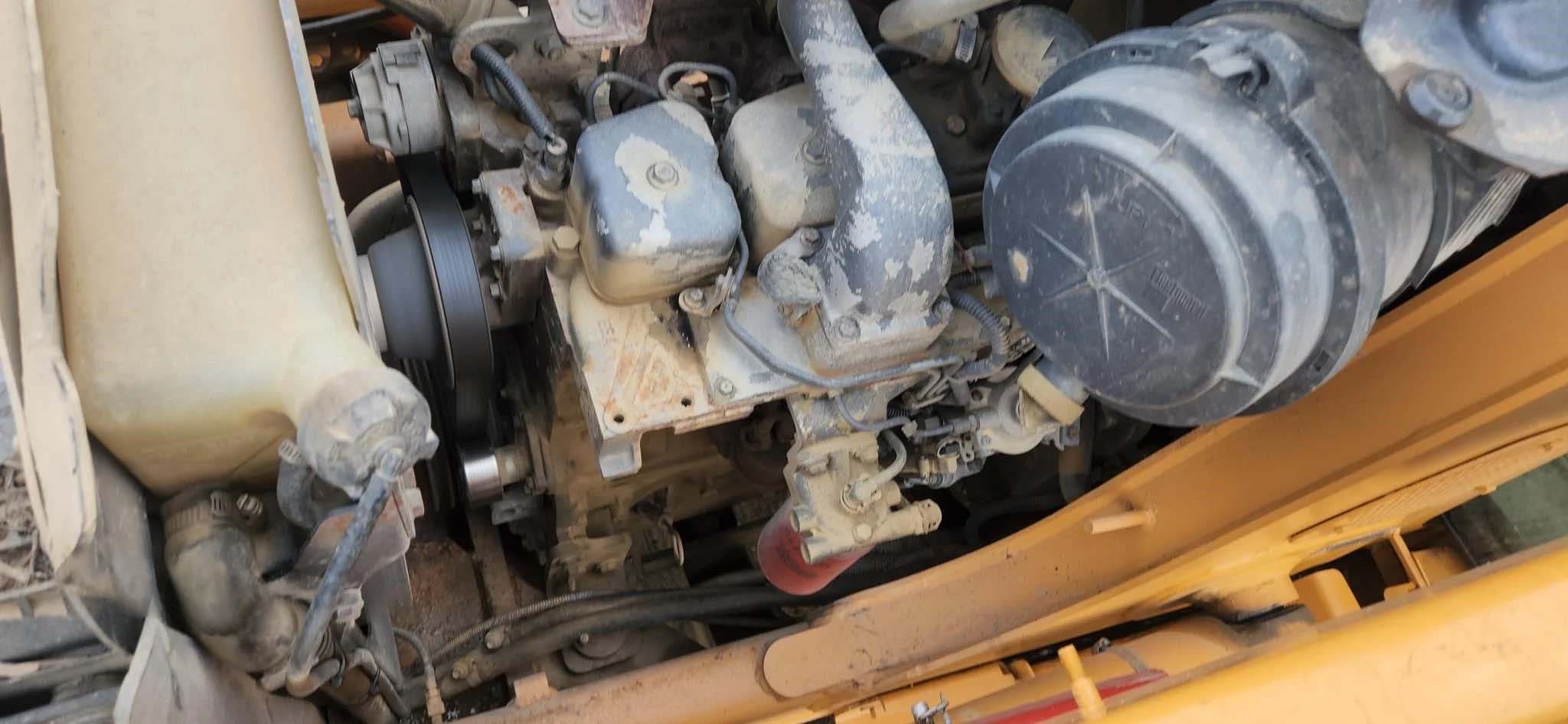

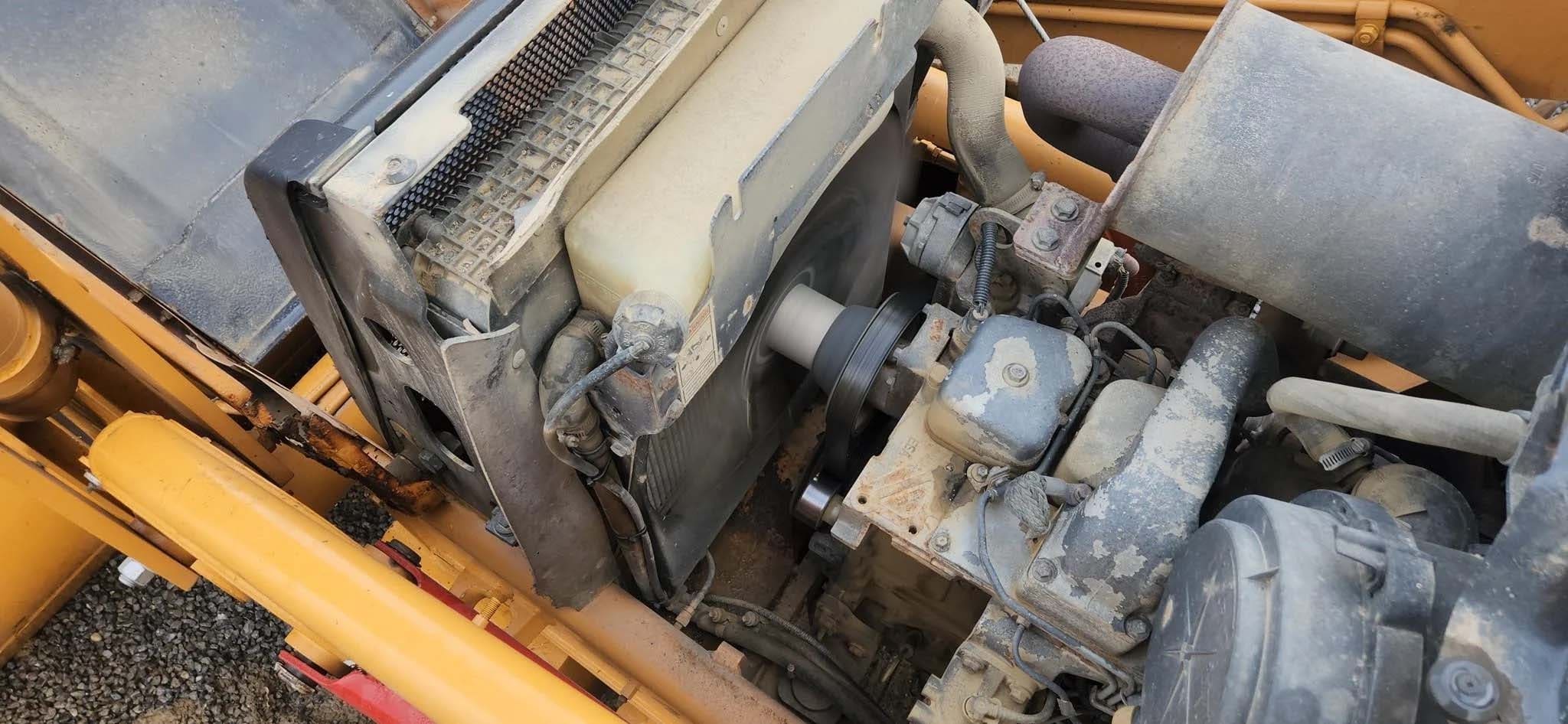

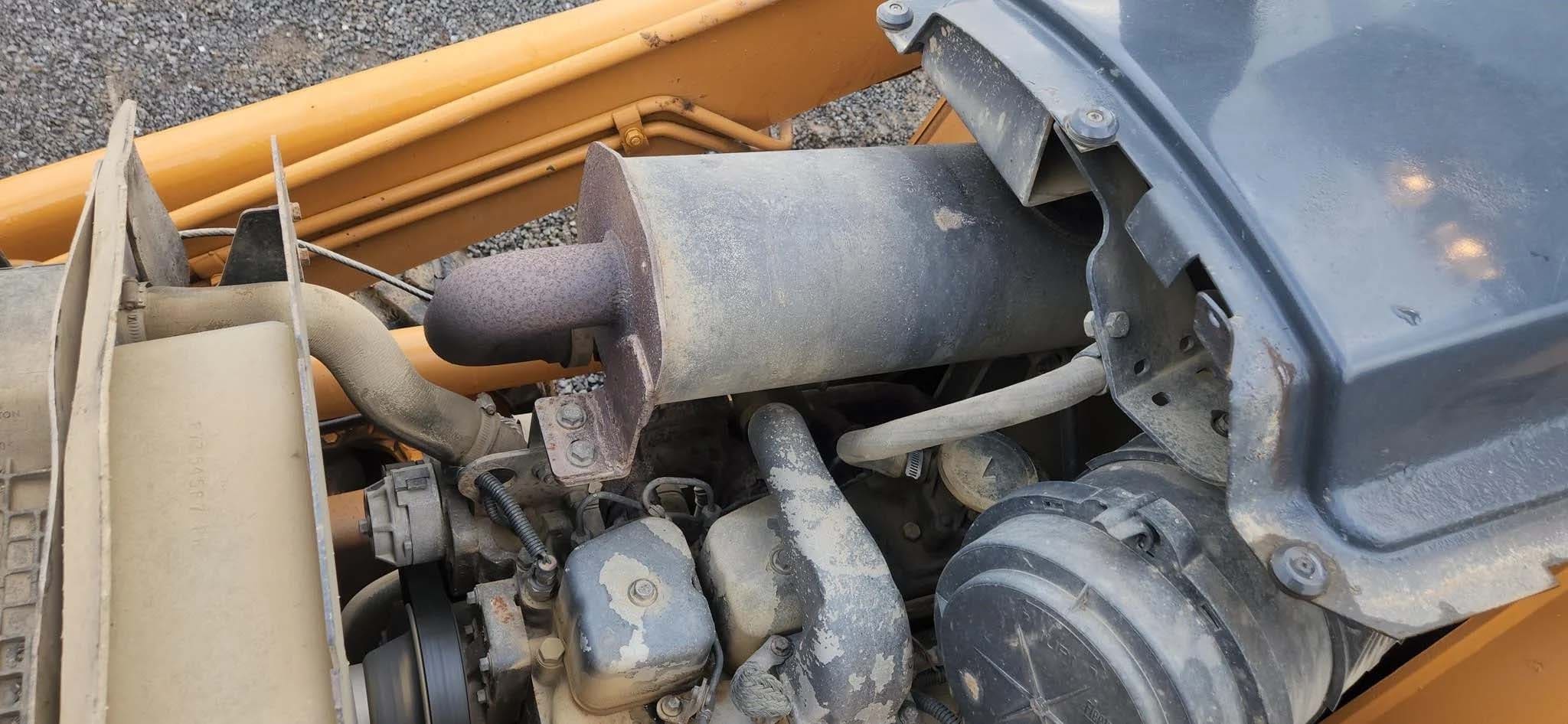

Engine

Aspiration: turbocharged
Displacement: 272 cu in (0 m)
Engine Model: Family III 445T/M2, Tier II certified
Gross Power: 95 hp (71 kw)
Net Max Torque: 289 lbs/ft
Net Power: 90 hp (67 kw)
Net Torque Rise: 0.29
Number of Cylinders: 4
Power Measured @: 2200 rpm
Torque Measured @: 1500 rpm

Hydraulic System

Pump Flow Capacity: 28.5 gal/min (106 l/min)
Pump Type: gear-type, transmission driven
Relief Valve Pressure: 3050 psi

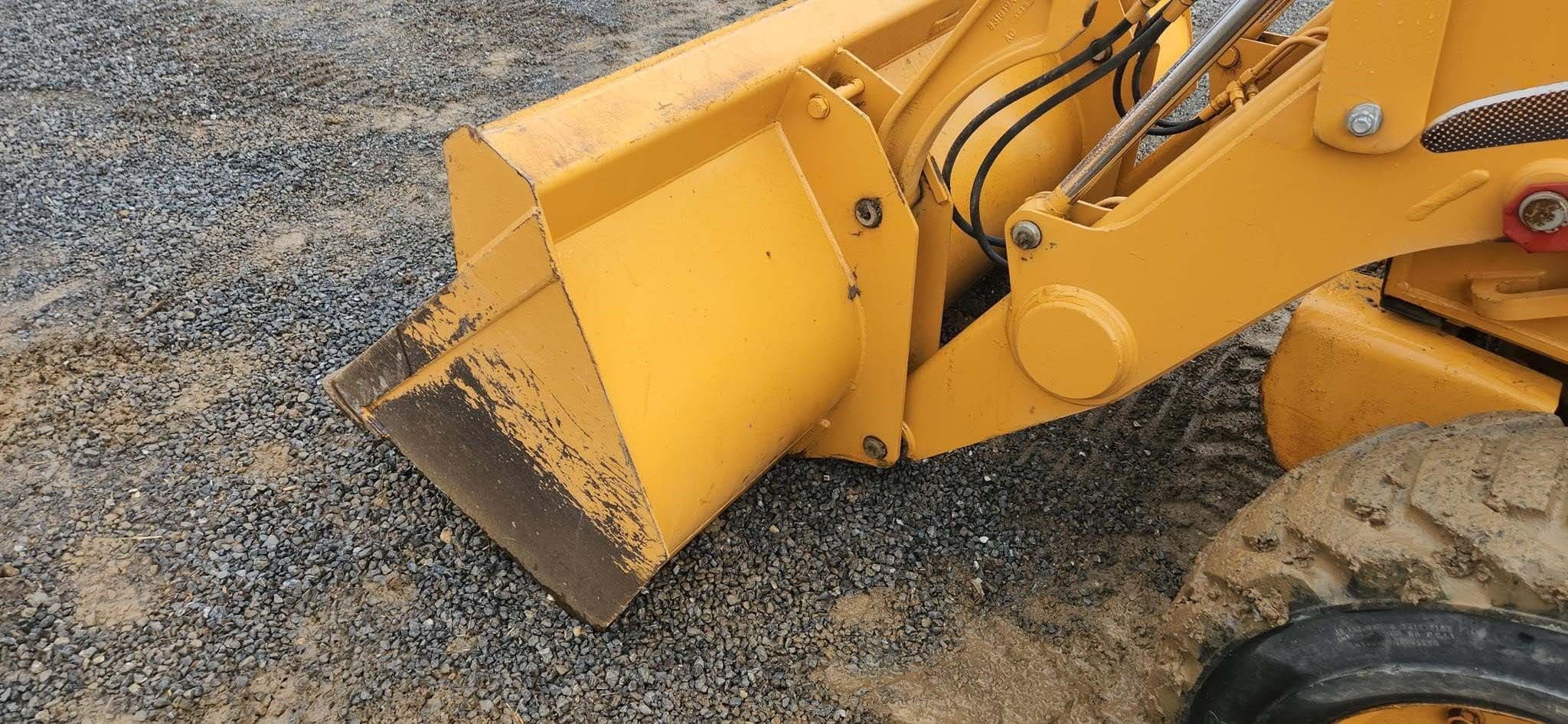

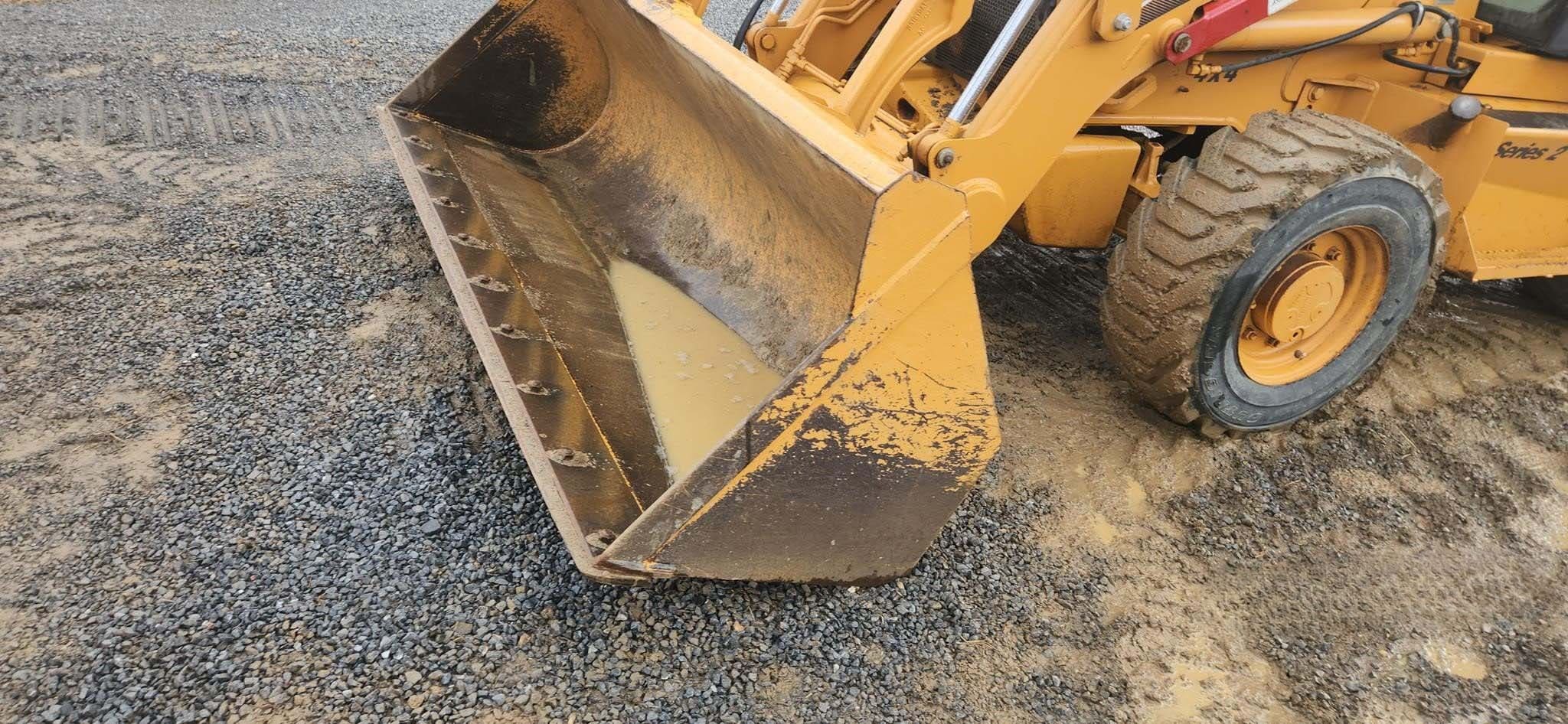

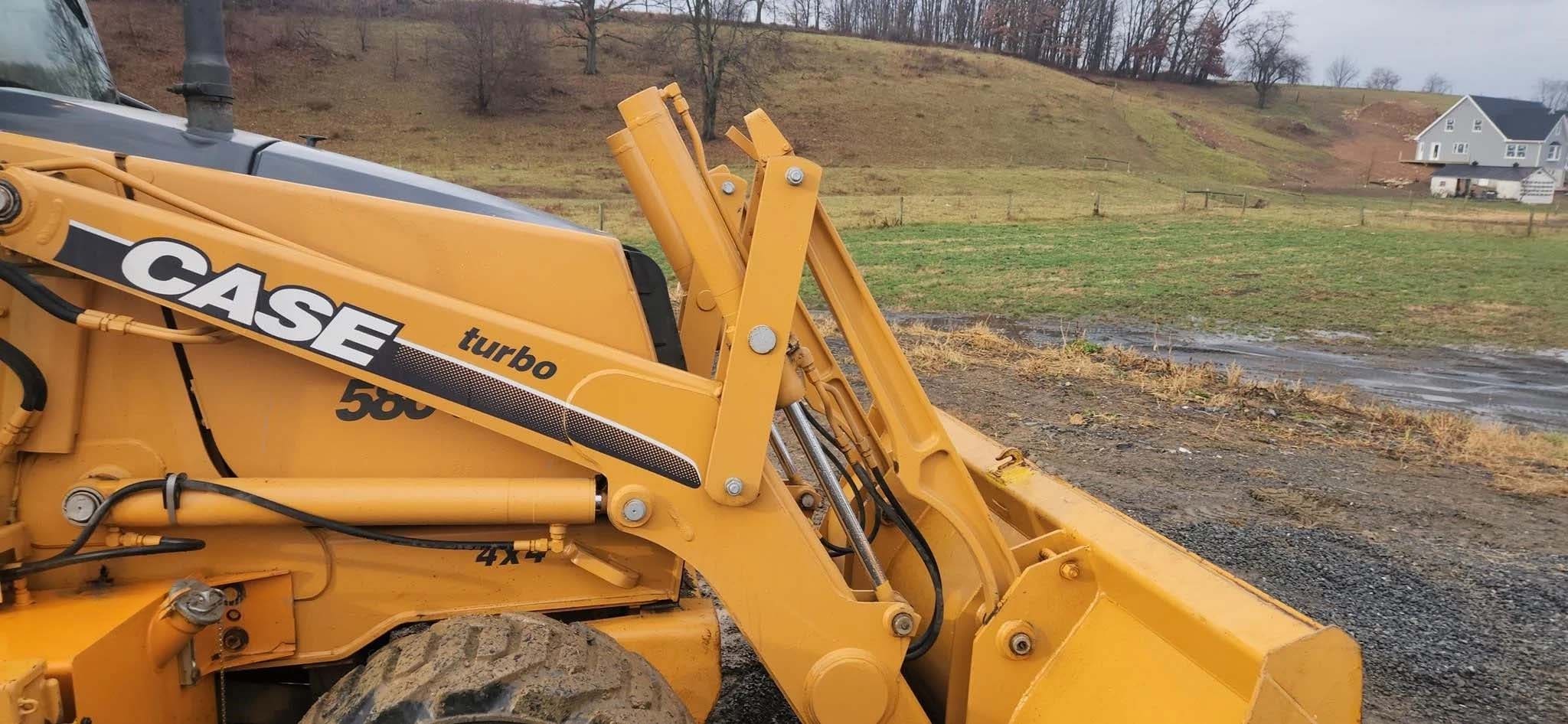

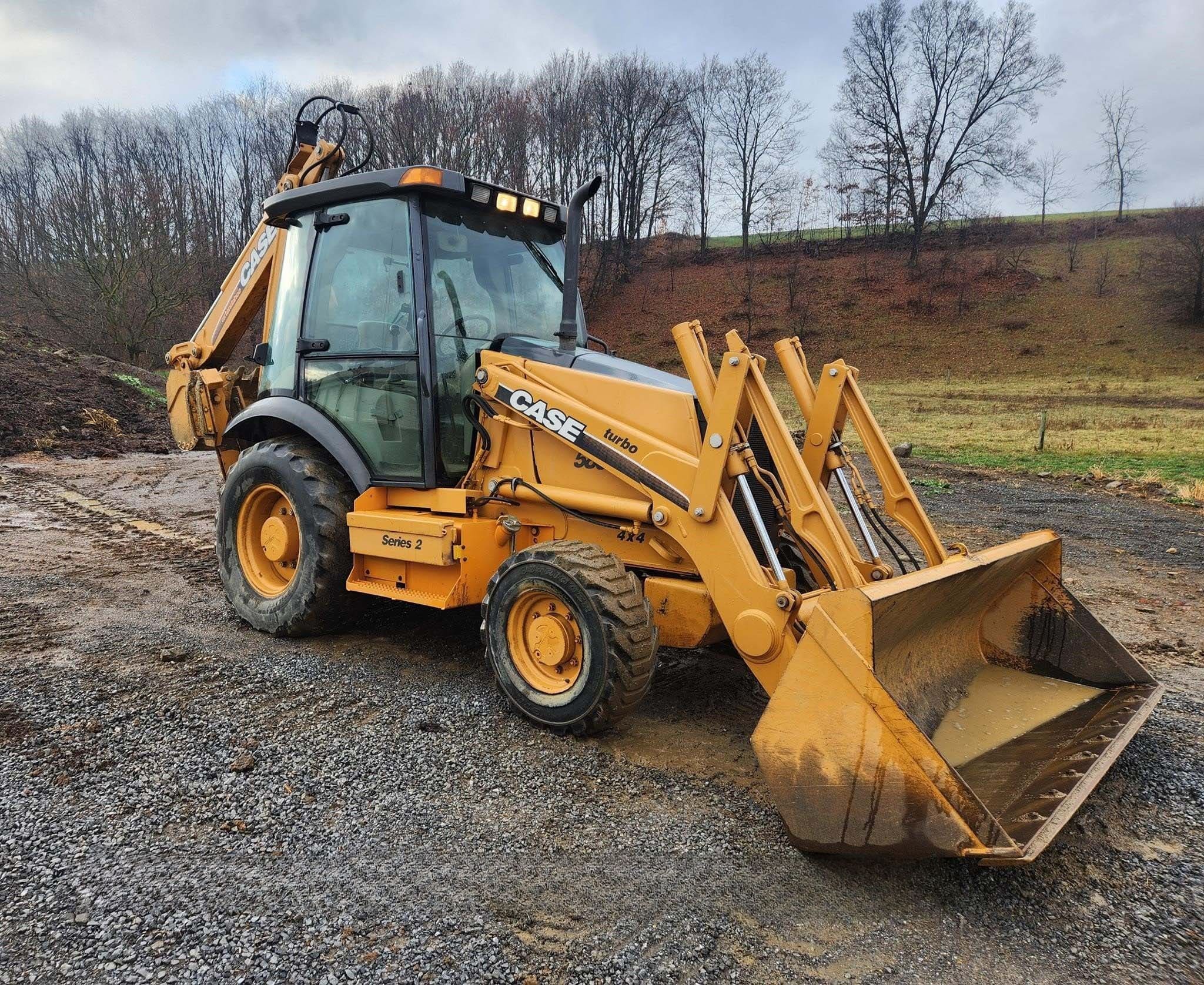

Loader

Breakout Force: 9164 lbs (4,157 kg)
Bucket Breakout Force: 9164 lbs (4,157 kg)
Bucket Capacity: 0.9 cu yds (0 m)
Bucket Width: 82 in (208 cm)
Clearance at Max Dump Height: 8.9 ft (2 m)
Dig Depth: 5.9 in (13 cm)
Lift Capacity: 1350 lbs (612 kg)
Reach at Max Dump Height: 2.5 ft (1 m)
SAE - Net: 90 hp (67 kw)

Operating Specifications

Alternator Supplied Amperage: 90 A
Cooling System Fluid Capacity: 4.8 gal (15 l)
Front Axle Fluid Capacity: 1.5 gal (4 l)
Fuel Capacity: 31.4 gal (117 l)
Hydraulic System Fluid Capacity: 31.5 gal (117 l)
Max Weight: 17545 lbs (7,958 kg)
Oil System Fluid Capacity: 3.6 gal (11 l)
Operating Voltage: 12 VV
Operating Weight: 14250 lbs (6,464 kg)
Operating Weight 2wd: 14285 lbs (6,480 kg)
Rear Axle Fluid Capacity: 3.8 gal (11 l)
Tire Size Front - 2wd / 4wd: 11Lx16.1/12x16.5
Transmission Fluid Capacity: 5.5 gal (19 l)
Turning Radius: 11 ft (3 m)

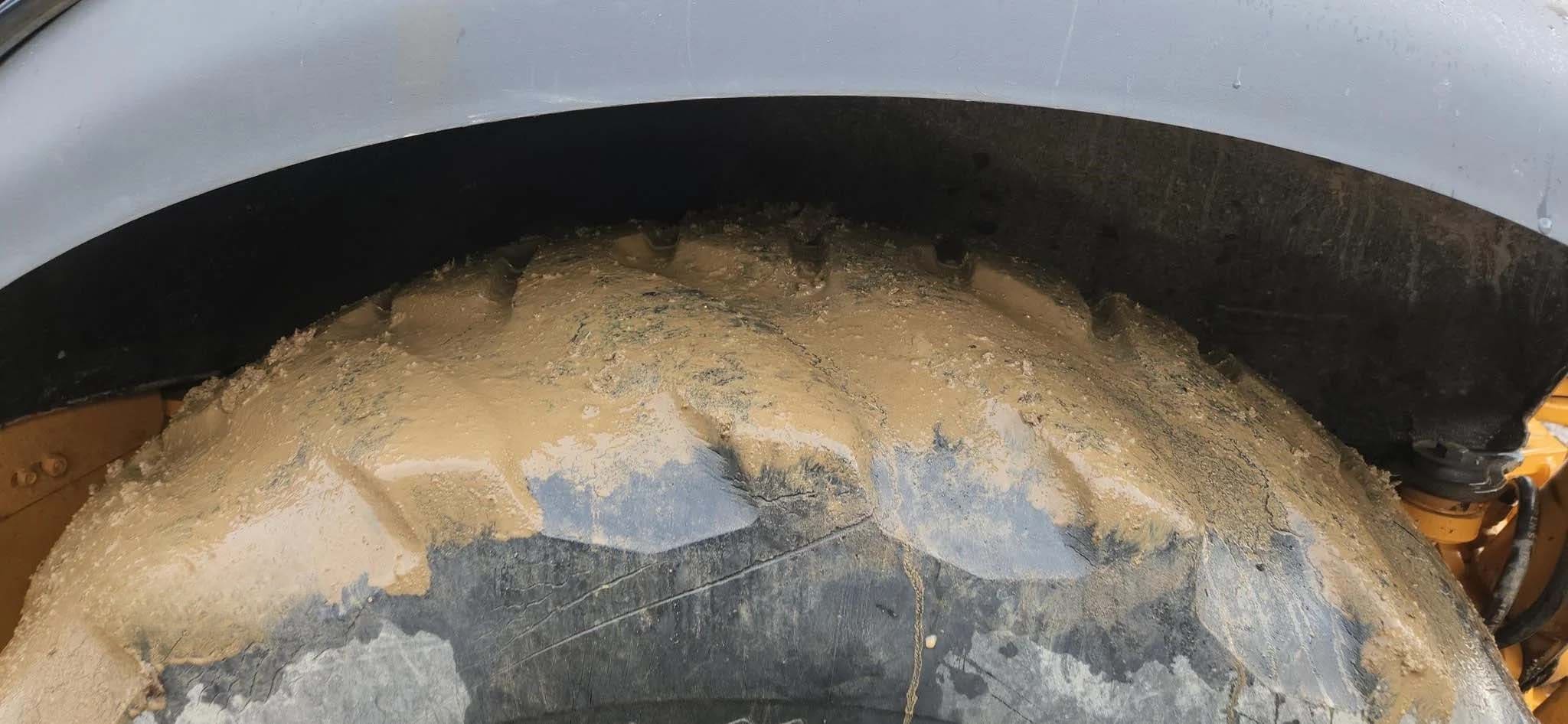

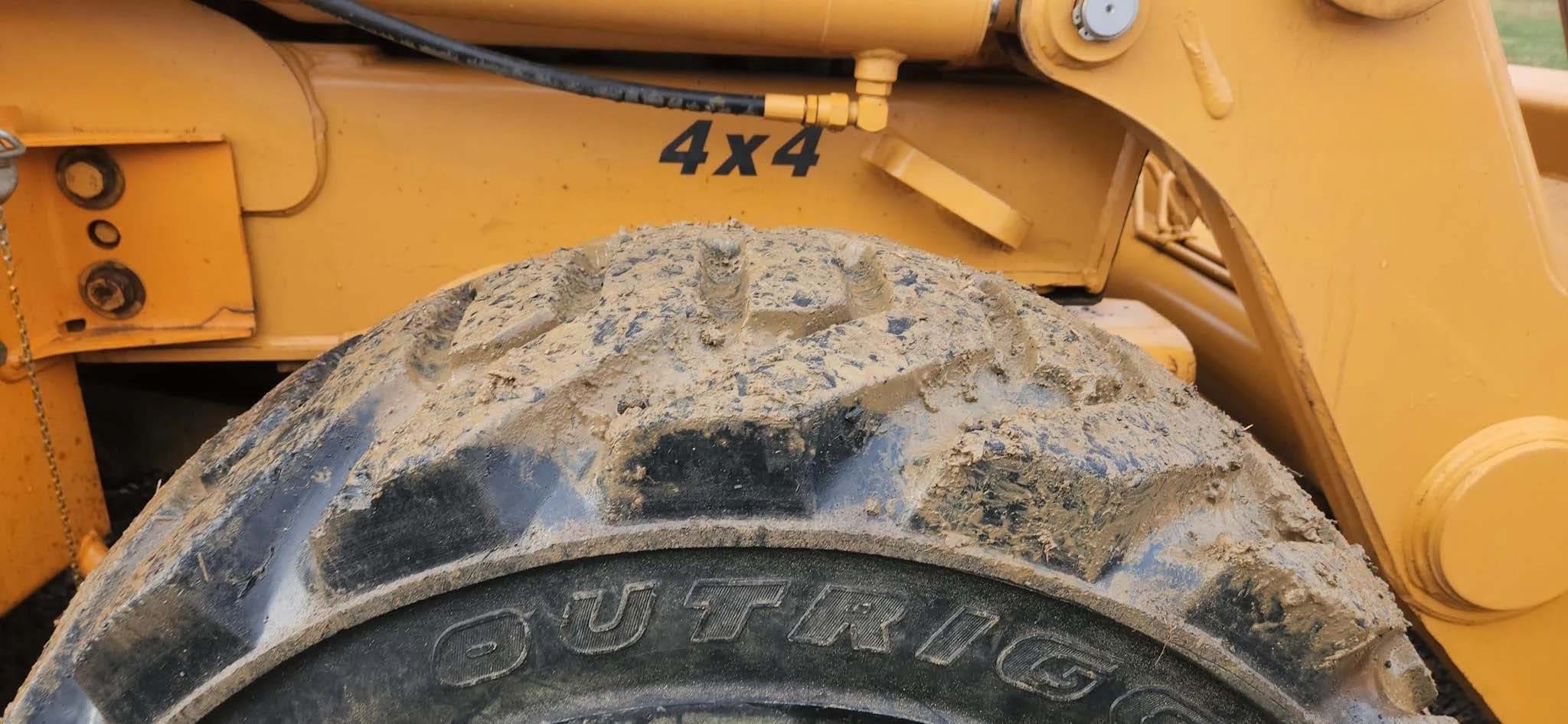

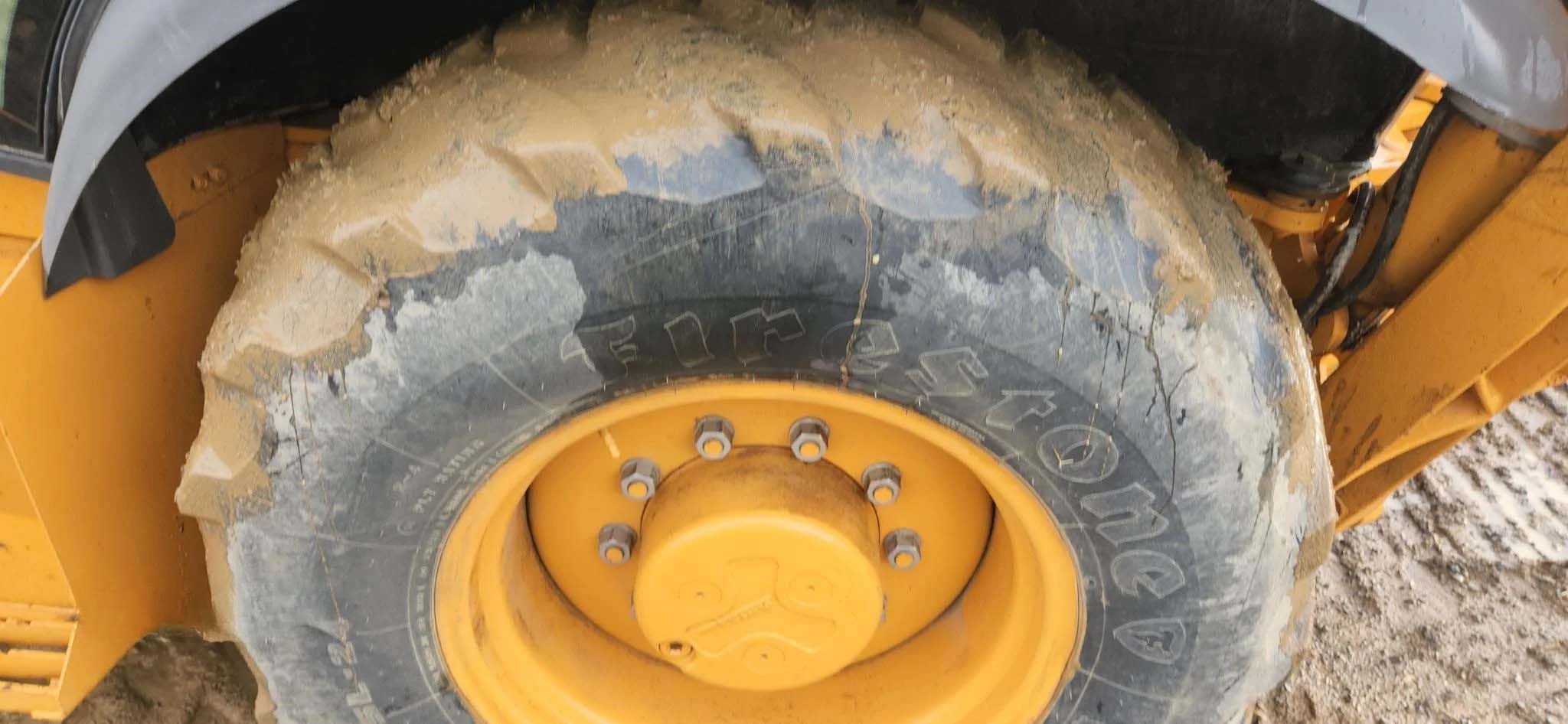

Tires

Rear Tires Size: 17.5Lx24/19.5x24

Transmission

Max Speed: 25.5 mph (40 kph)
Max Speed - Reverse: 30.8 mph (48 kph)
Number of Forward Gears: 4
Number of Reverse Gears: 4
Transmission Type: 4-speed synchromesh with hydraulically actuated clutches

Travel Speed

4Th Gear Fwd: 25.1 mph (40 kph)
