Boom/Stick Excavator Option 1:

Max Cutting Height: 29 ft (9 m)
Max Digging Depth: 19 ft (6 m)
Max Loading Height: 20 ft (6 m)
Max Reach Along Ground: 30 ft (9 m)
Max Vertical Wall Digging Depth: 16 ft (5 m)
Shipping Height of Unit: 10 ft (3 m)
Shipping Length of Unit: 28 ft (9 m)

Boom/Stick Excavator Option 2:

Max Cutting Height: 29 ft (9 m)
Max Digging Depth: 20 ft (6 m)
Max Loading Height: 8 ft (2 m)
Max Reach Along Ground: 29 ft (9 m)
Max Vertical Wall Digging Depth: 18 ft (5 m)
Shipping Height of Unit: 10 ft (3 m)
Shipping Length of Unit: 28 ft (9 m)

Boom/Stick Excavator Option 3:

Max Cutting Height: 29 ft (9 m)
Max Digging Depth: 21 ft (6 m)
Max Loading Height: 21 ft (6 m)
Max Reach Along Ground: 29 ft (9 m)
Max Vertical Wall Digging Depth: 18 ft (5 m)
Shipping Length of Unit: 28 ft (9 m)

Boom/Stick Excavator Option 4:

Max Cutting Height: 30 ft (9 m)
Max Digging Depth: 22 ft (7 m)
Max Loading Height: 22 ft (7 m)
Max Reach Along Ground: 30 ft (9 m)
Max Vertical Wall Dig Depth: 19 ft (6 m)
Shipping Length of Unit: 28 ft (9 m)

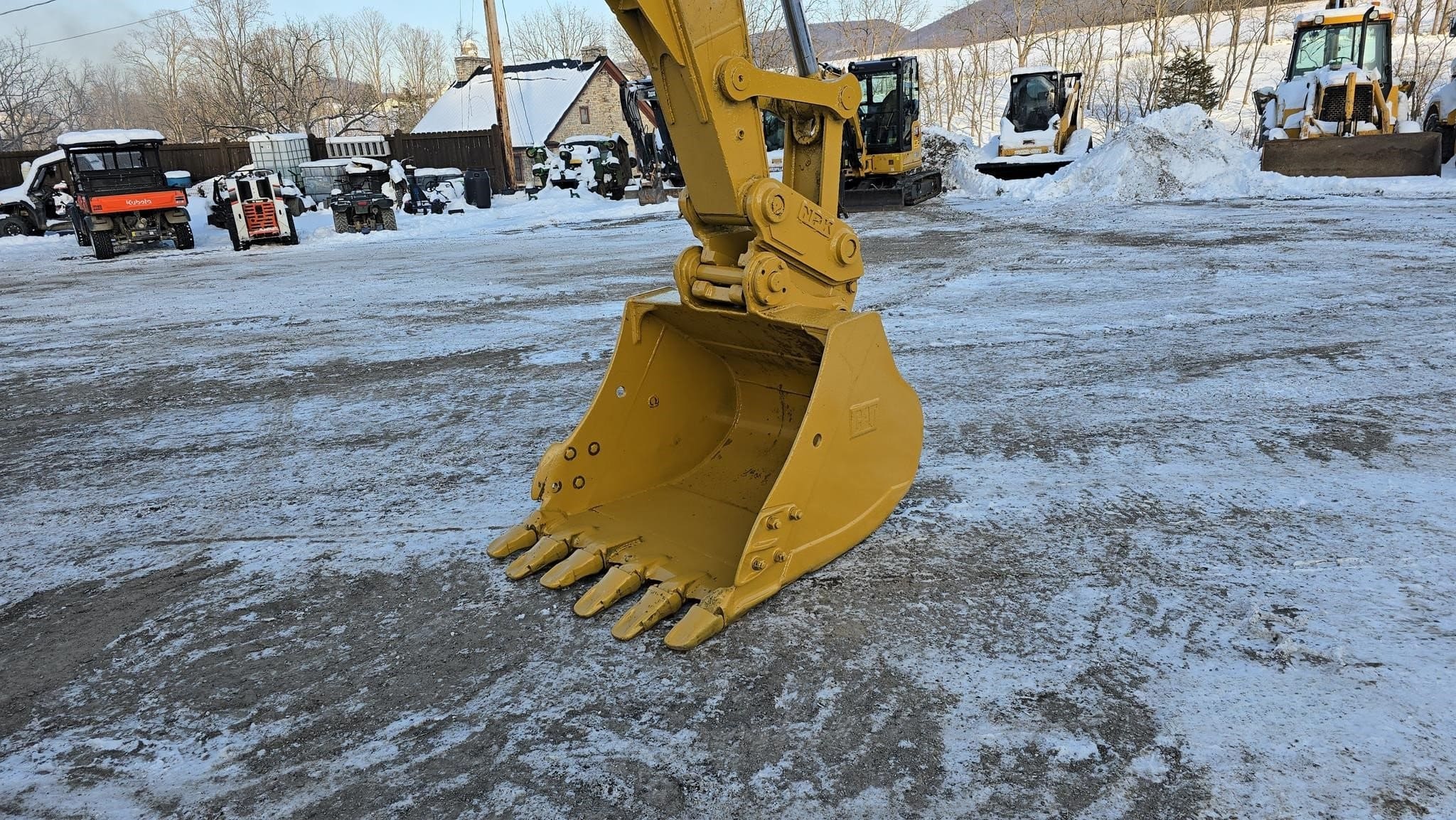

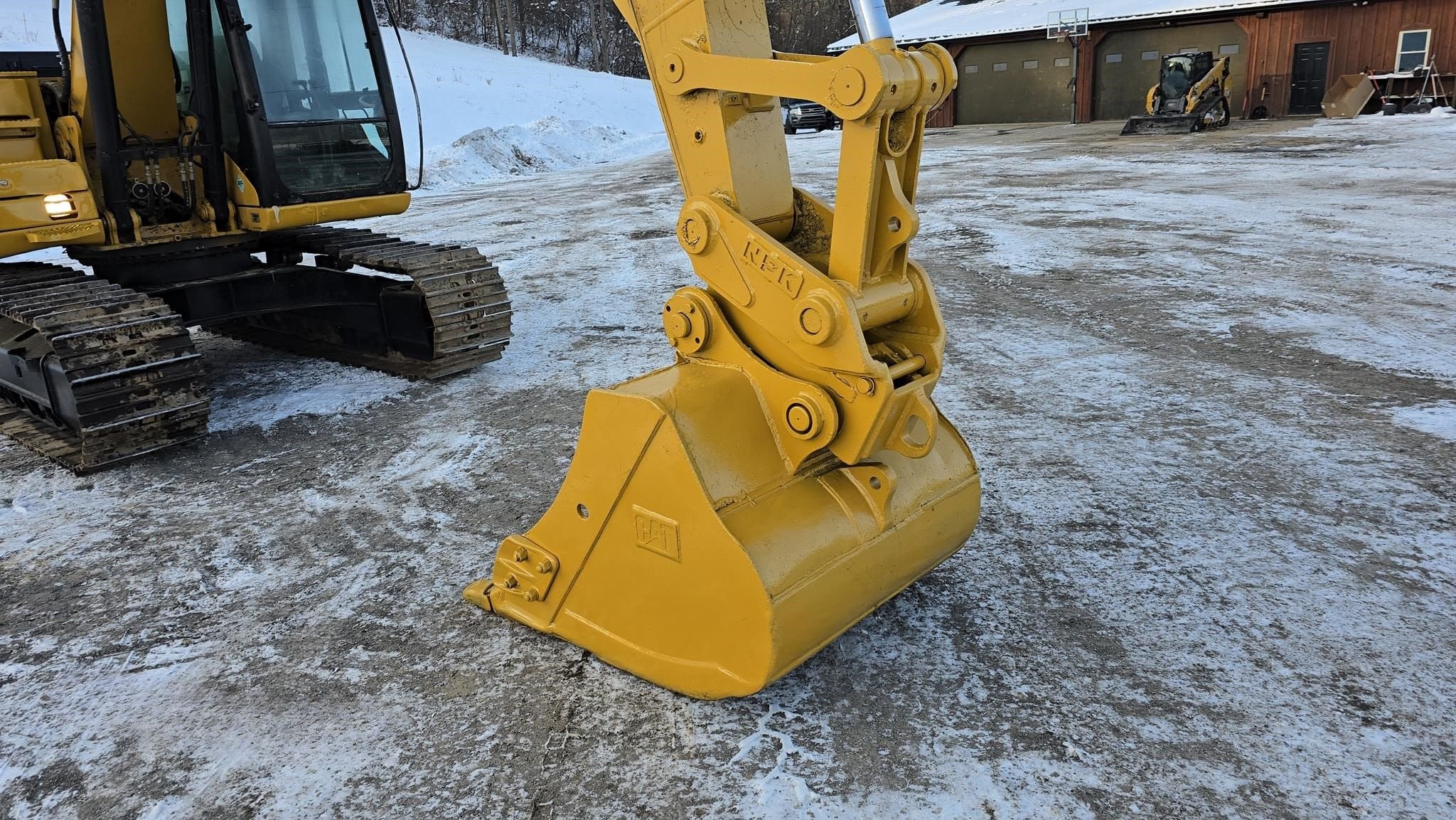

Bucket:

Maximum Bucket Capacity: 1 cu yd (1 cu m)
Minimum Bucket Capacity: 1 cu yd (0 cu m)
Reference Bucket Capacity: 1 cu yd (1 cu m)

Dimensions:

Ground Clearance: 2 ft (0 m)
Height - Top of Cab: 10 ft (3 m)
Length of Track on Ground: 11 ft (3 m)
Removal Counterweight Clearance: 3 ft (1 m)
Tail Swing Radius: 8 ft (3 m)
Width to Outside of Tracks: 9 ft (3 m)

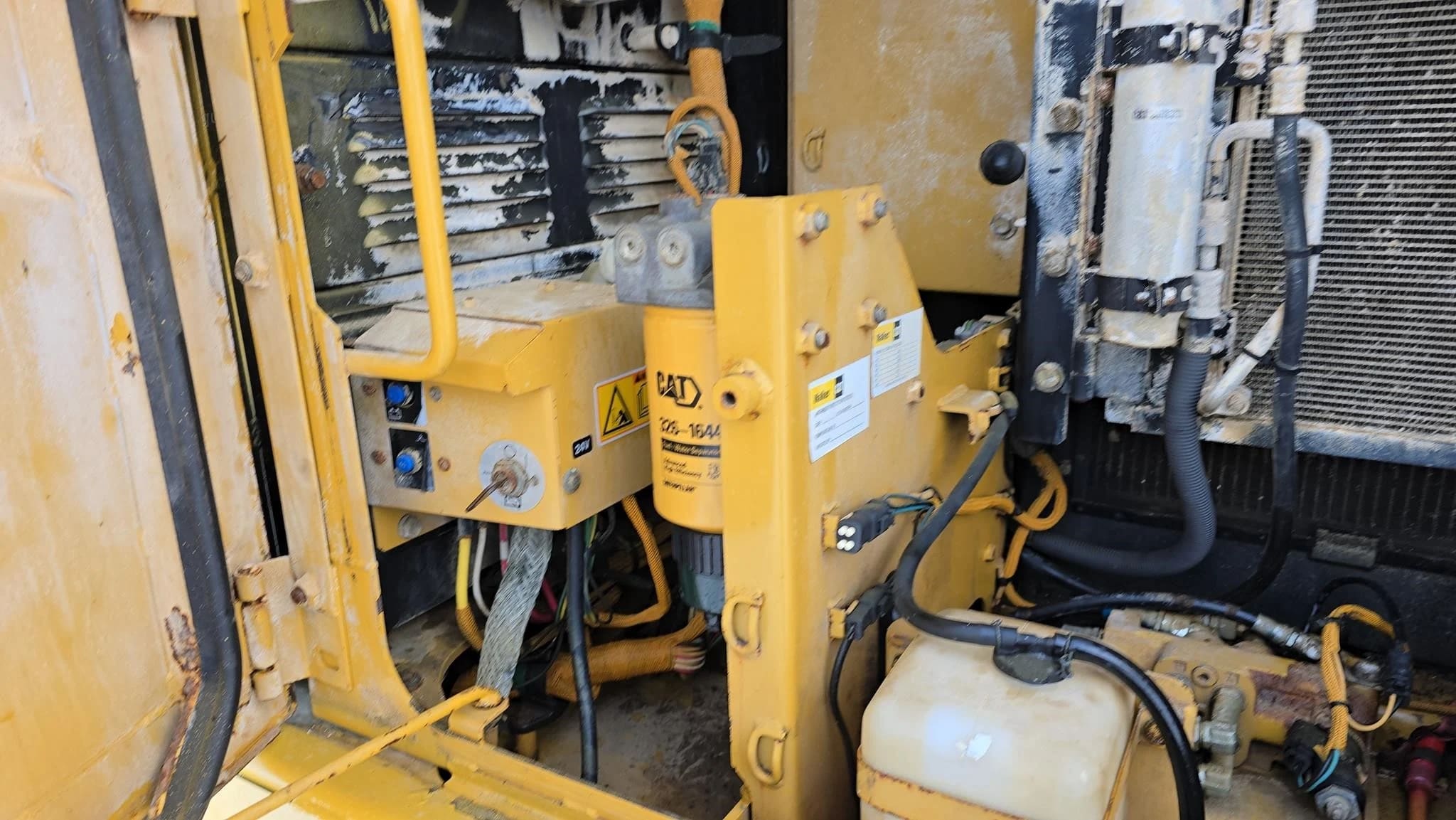

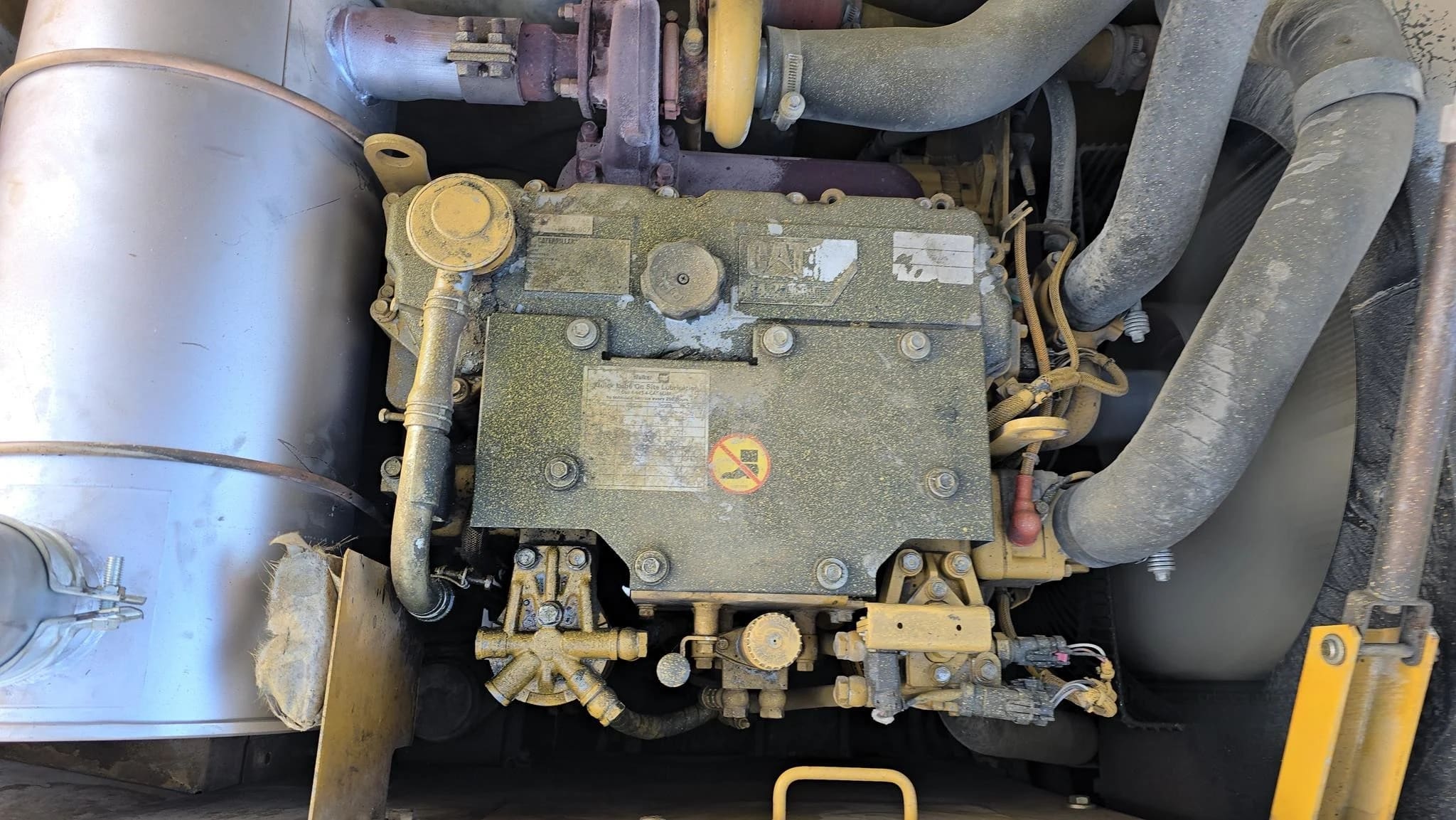

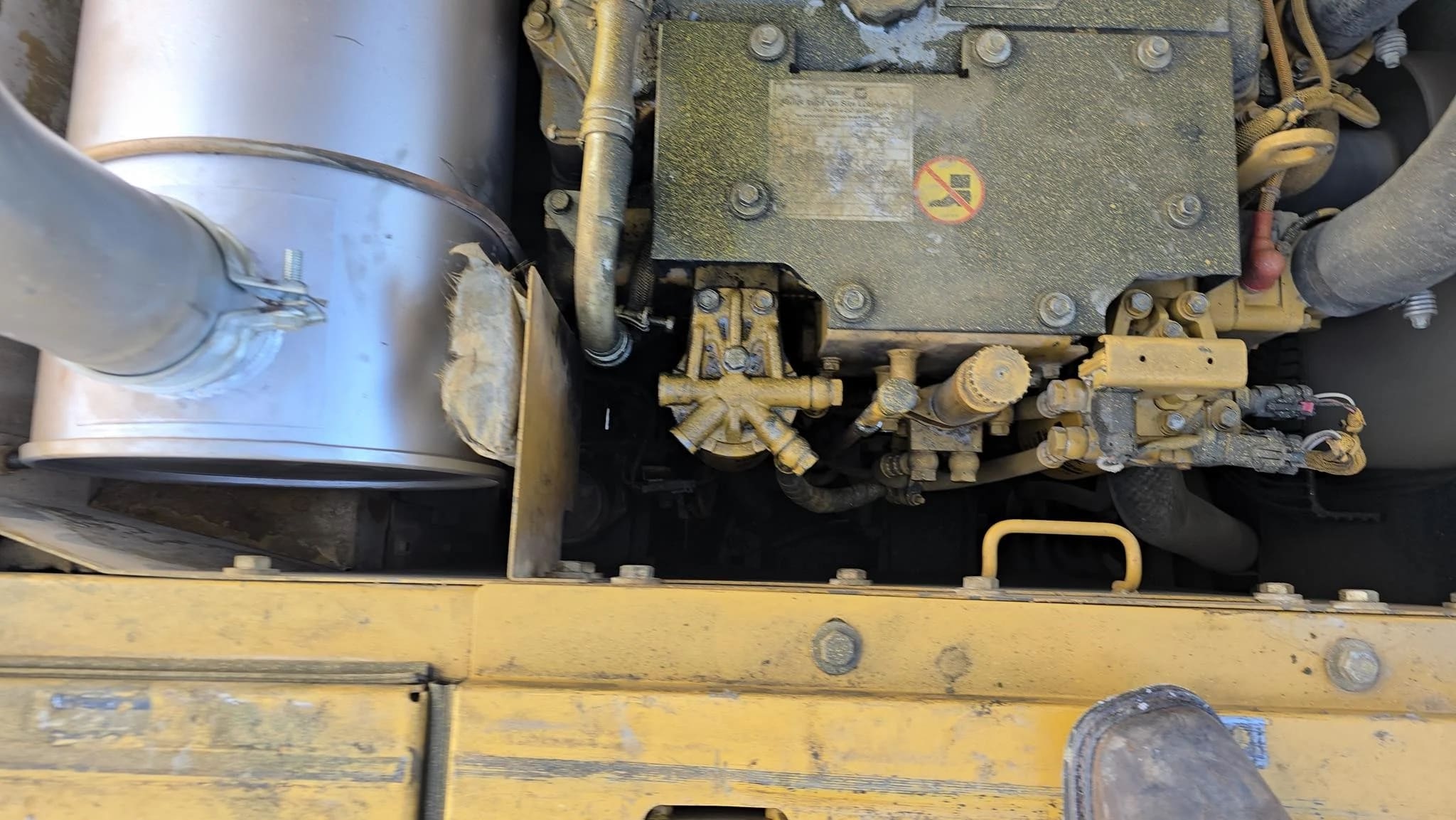

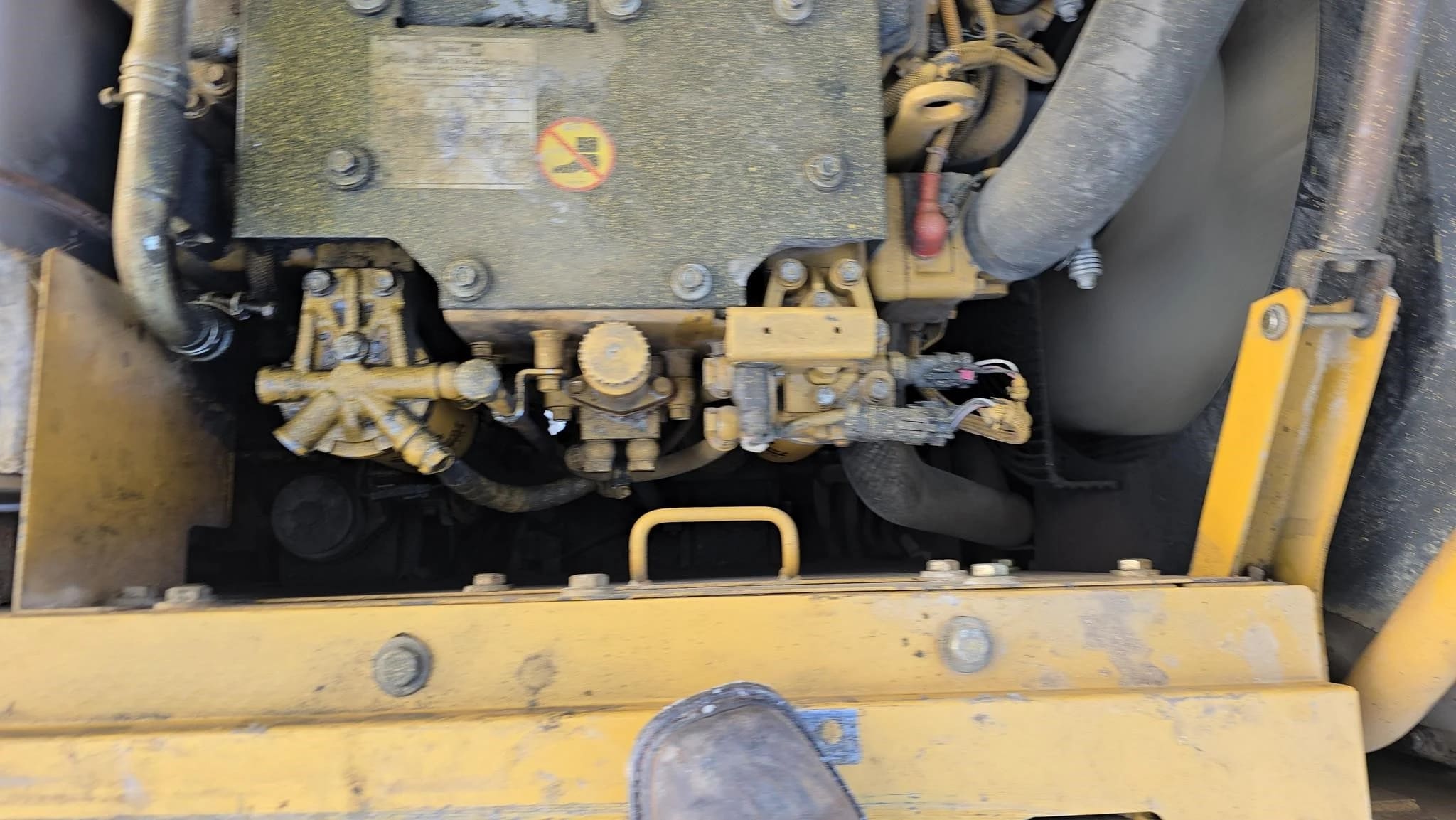

Engine:

Displacement: 259 cu in (4,251 cu cm)
Engine Model: C4.2 ACERT
Flywheel Power: 117 hp (87 kw)
Gross Power: 122 hp (91 kw)
Net Power: 115 hp (86 kw)

Operating Specifications:

Cooling System Fluid Capacity: 6 gal (22 l)
Engine Oil Capacity: 5 gal (18 l)
Fuel Capacity: 79 gal (300 l)

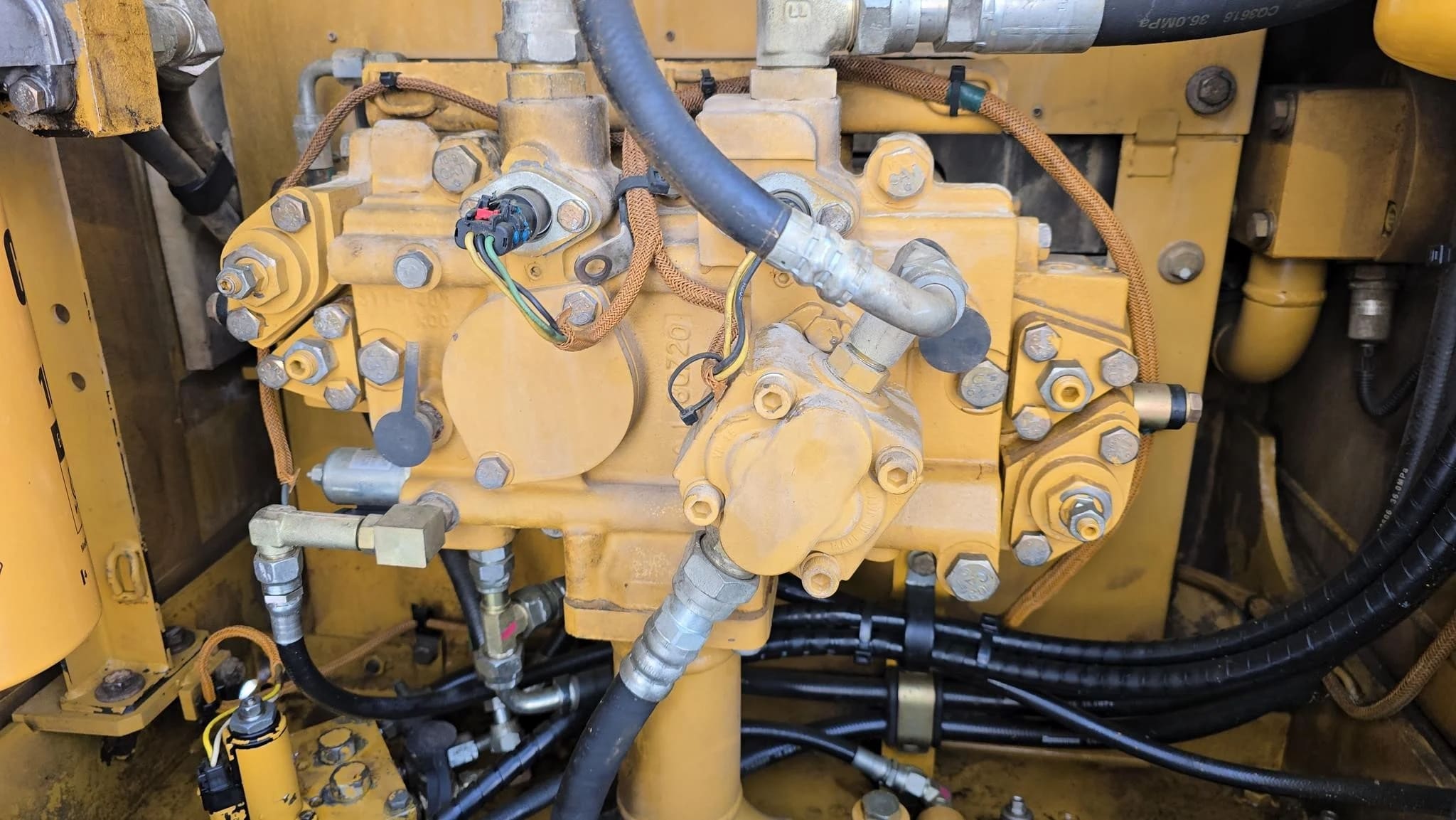

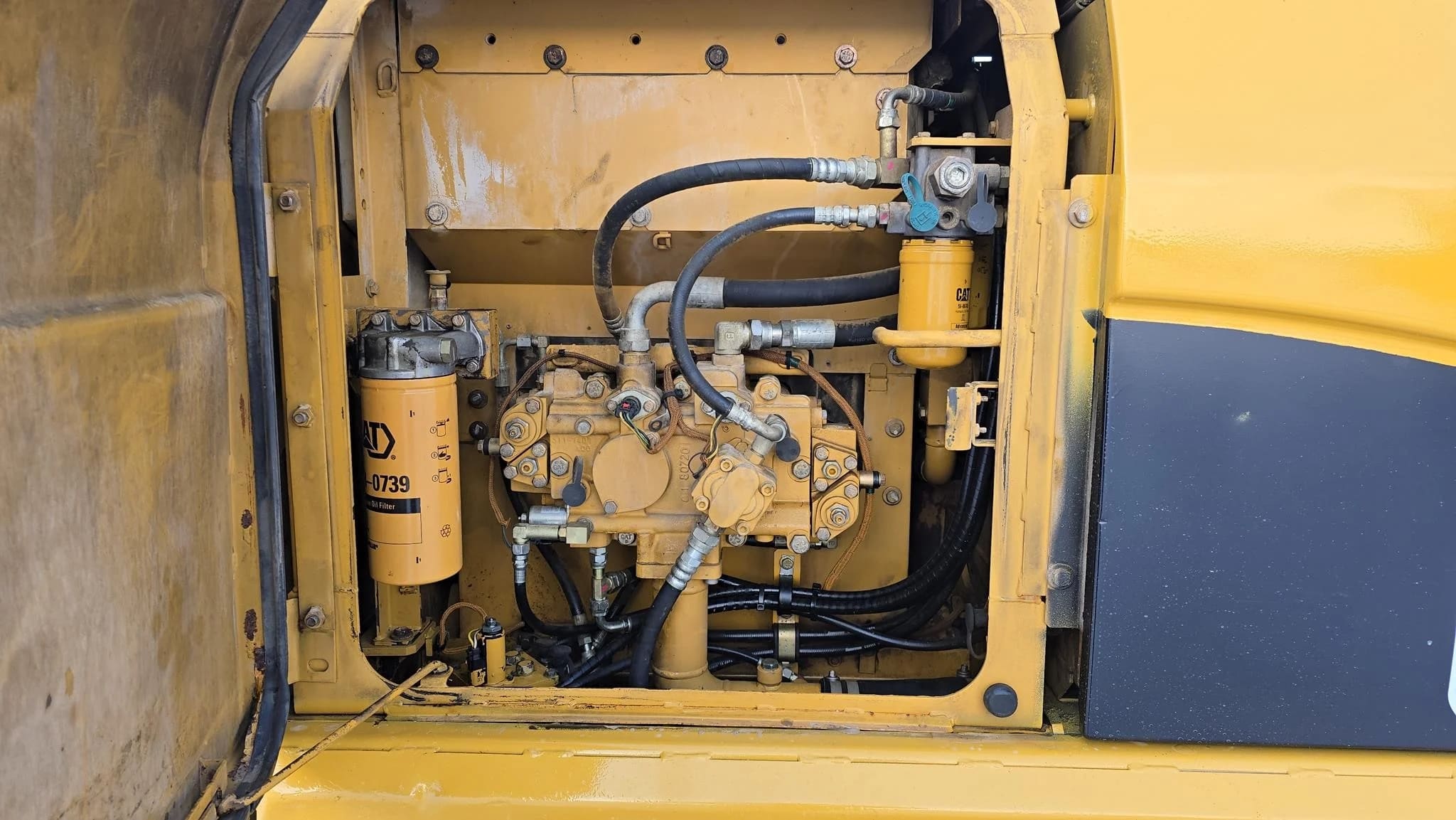

Hydraulic Pump Flow Capacity: 40 gpm (150 lpm)
Hydraulic System Fluid Capacity: 50 gal (190 l)
Hydraulic System Relief Valve Pressure: 5076.4 psi
Operating Weight: 38,096 lbs (17,280 kg)
Swing Drive Fluid Capacity: 1 gal (3 l)

Swing Mechanism:

Swing Speed: 10.2 rpm

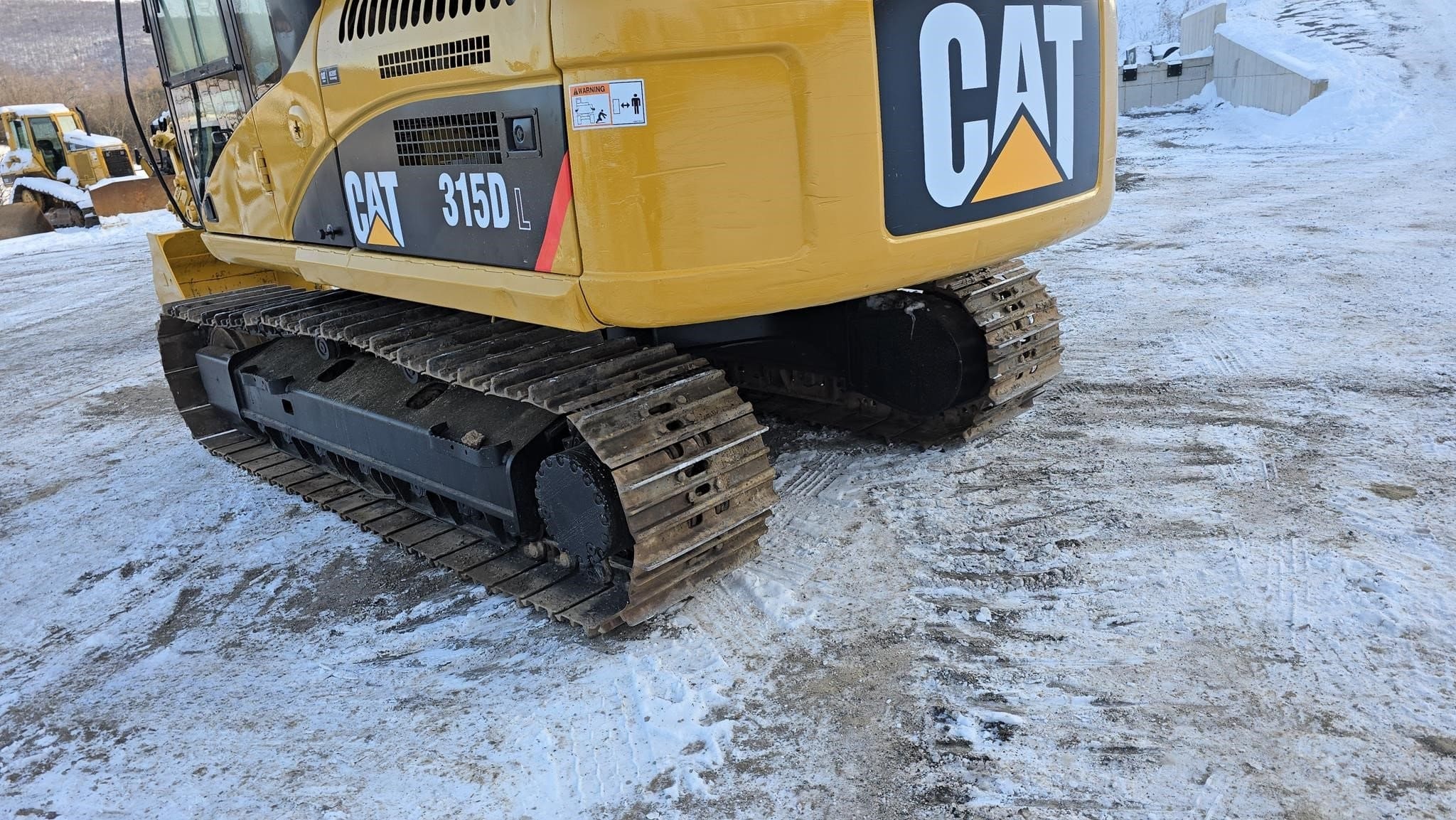

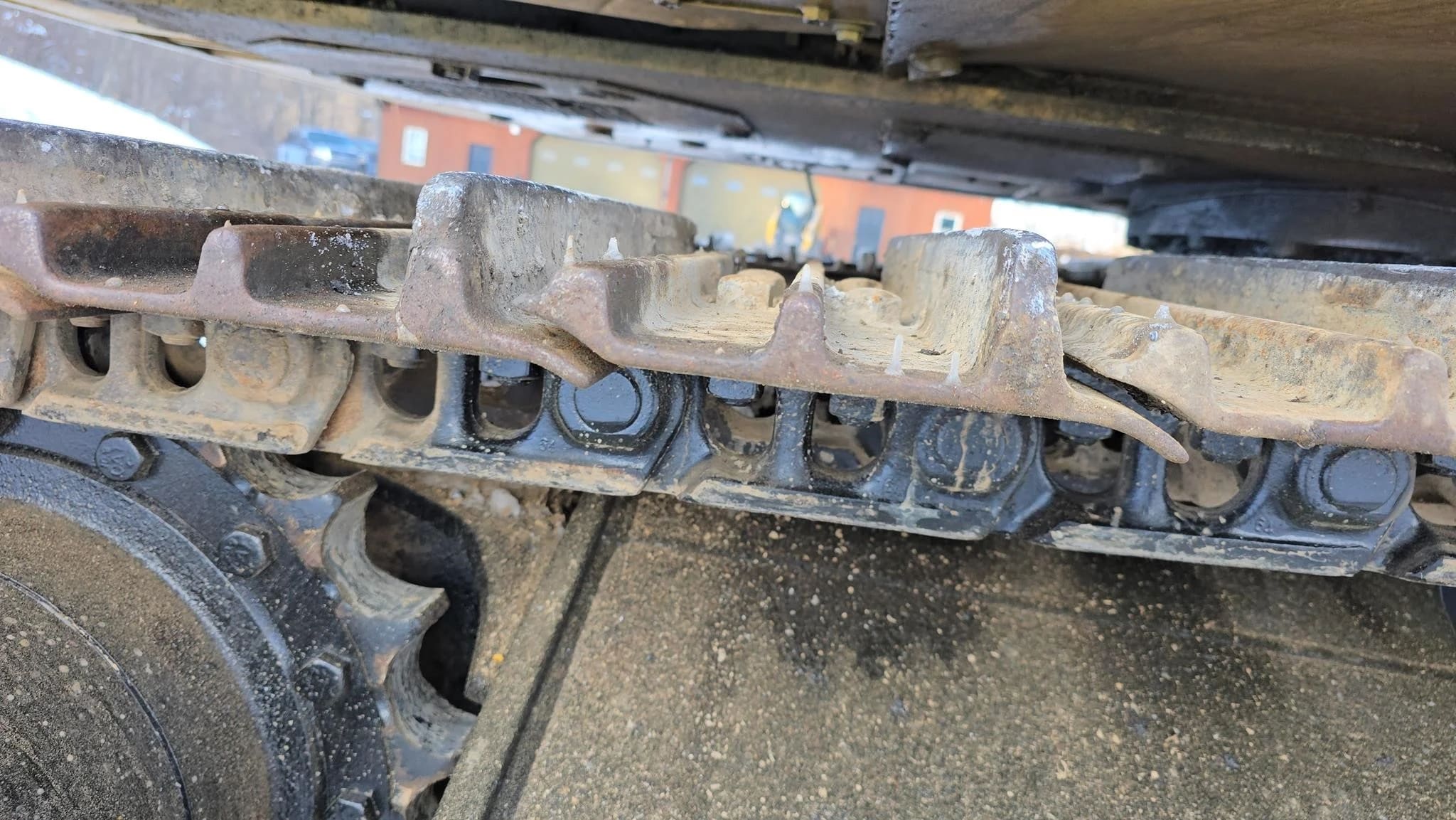

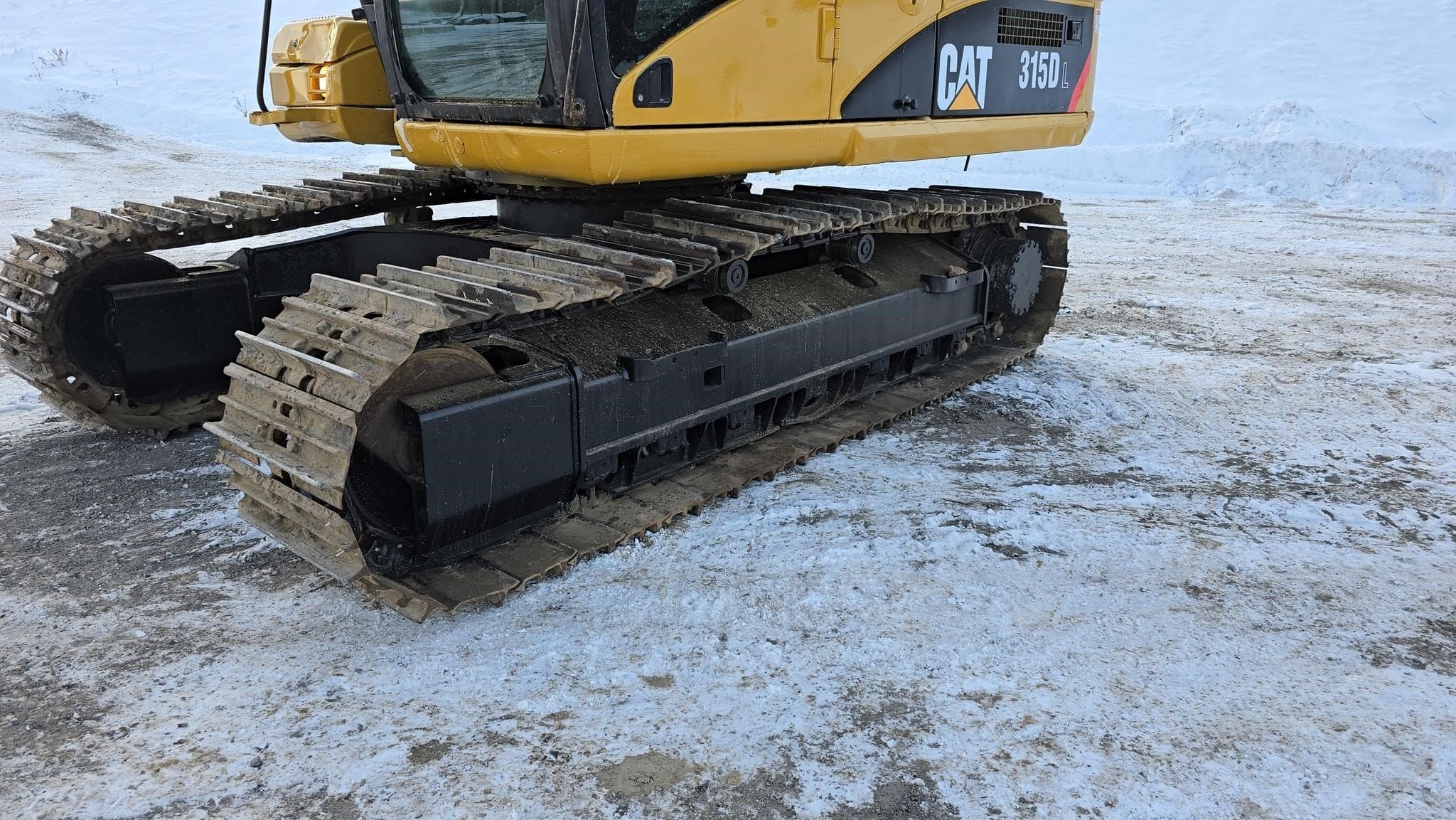

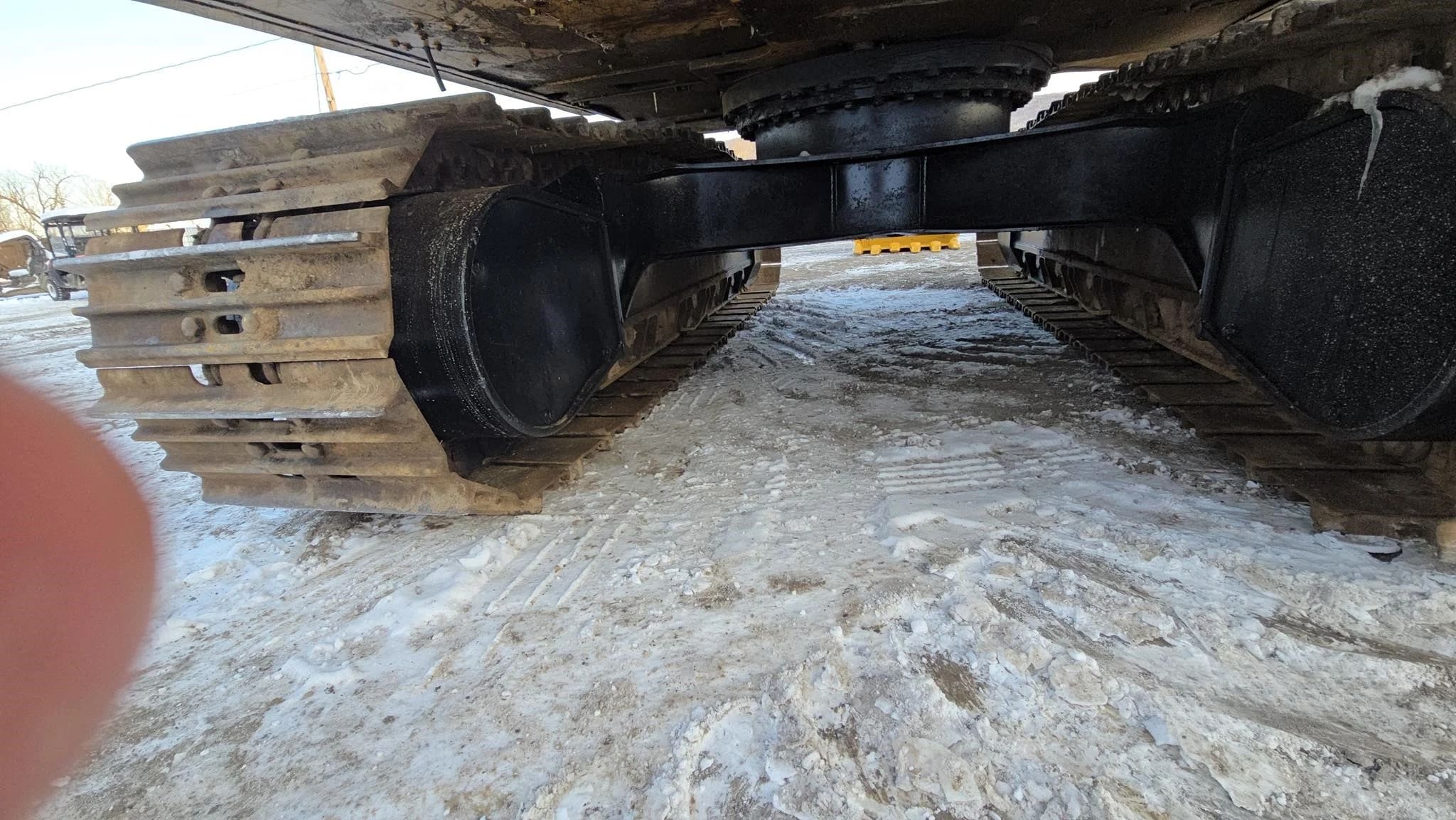

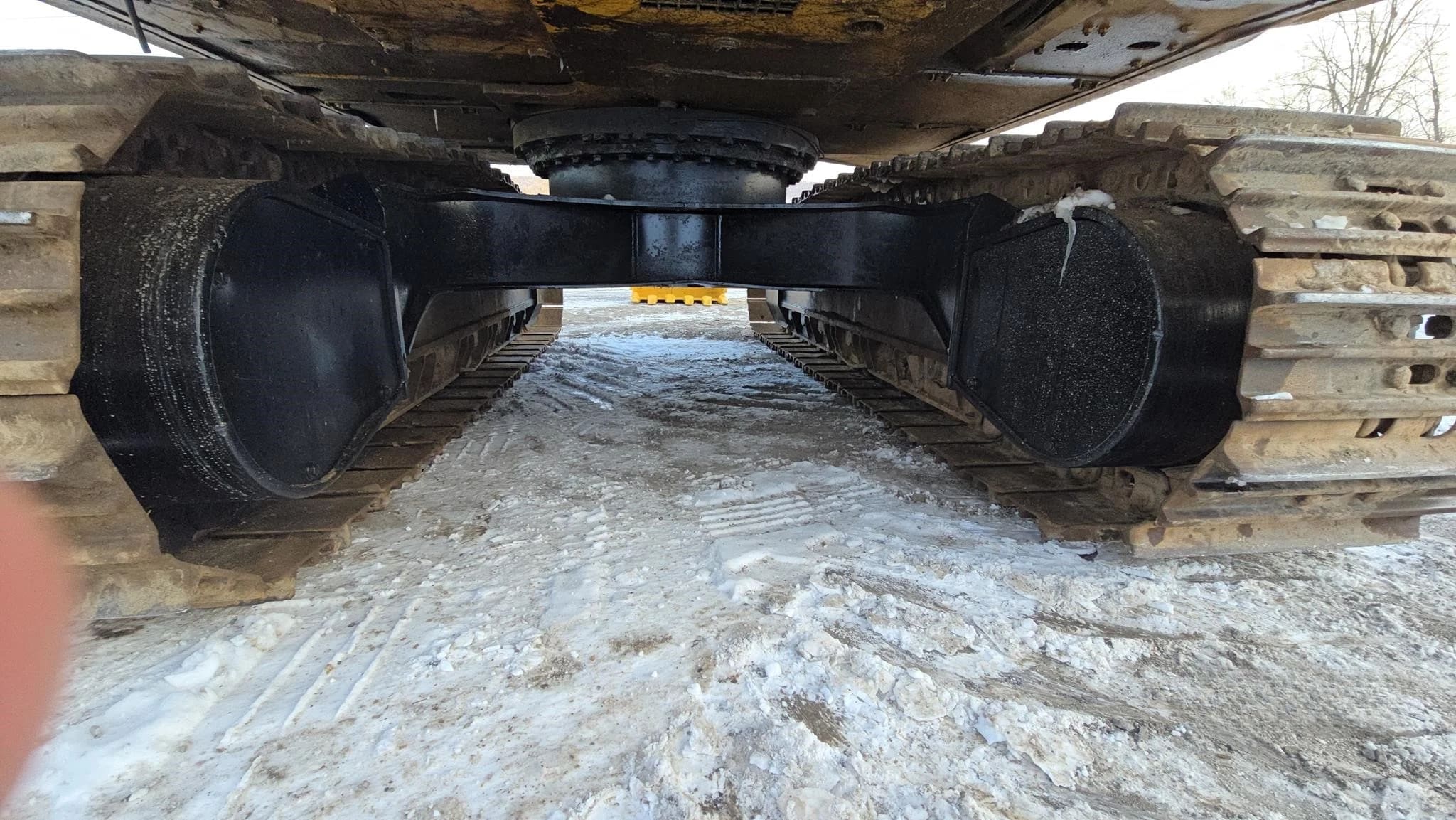

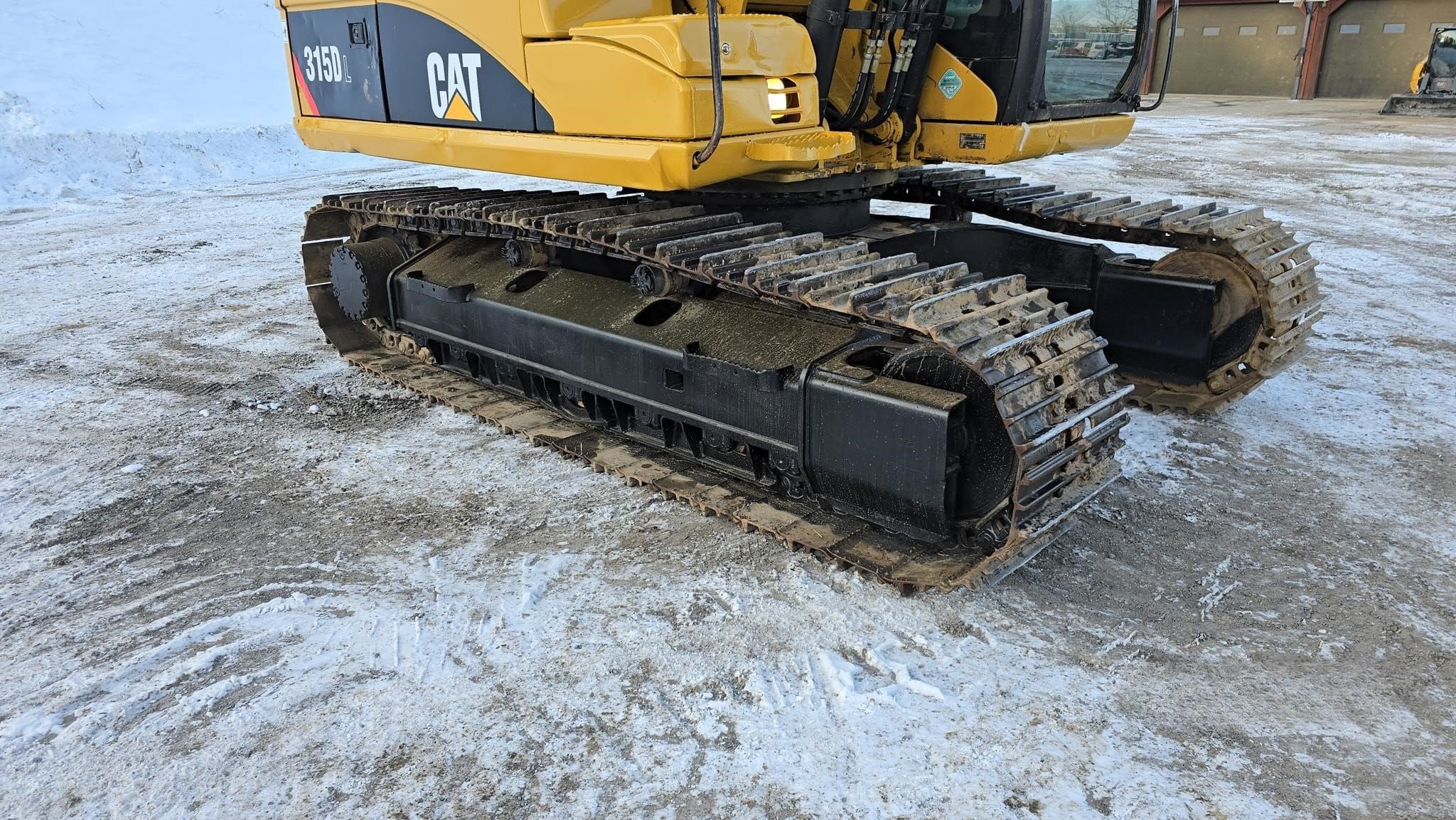

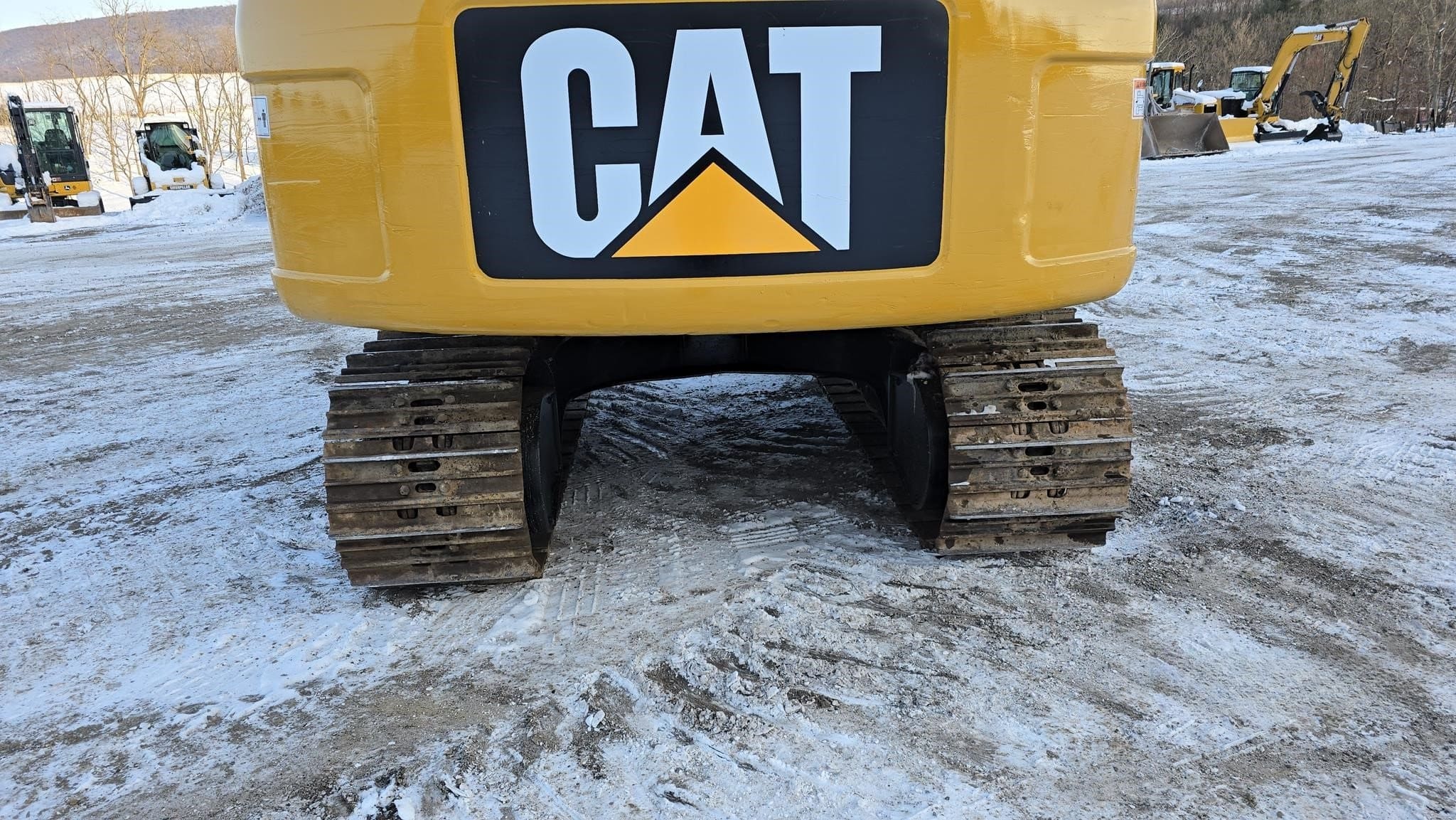

Undercarriage:

Drawbar Pull: 35,295 lbs (16,010 kg)
Ground Pressure: 6 psi
Max Travel Speed: 4 mph (6 kph)

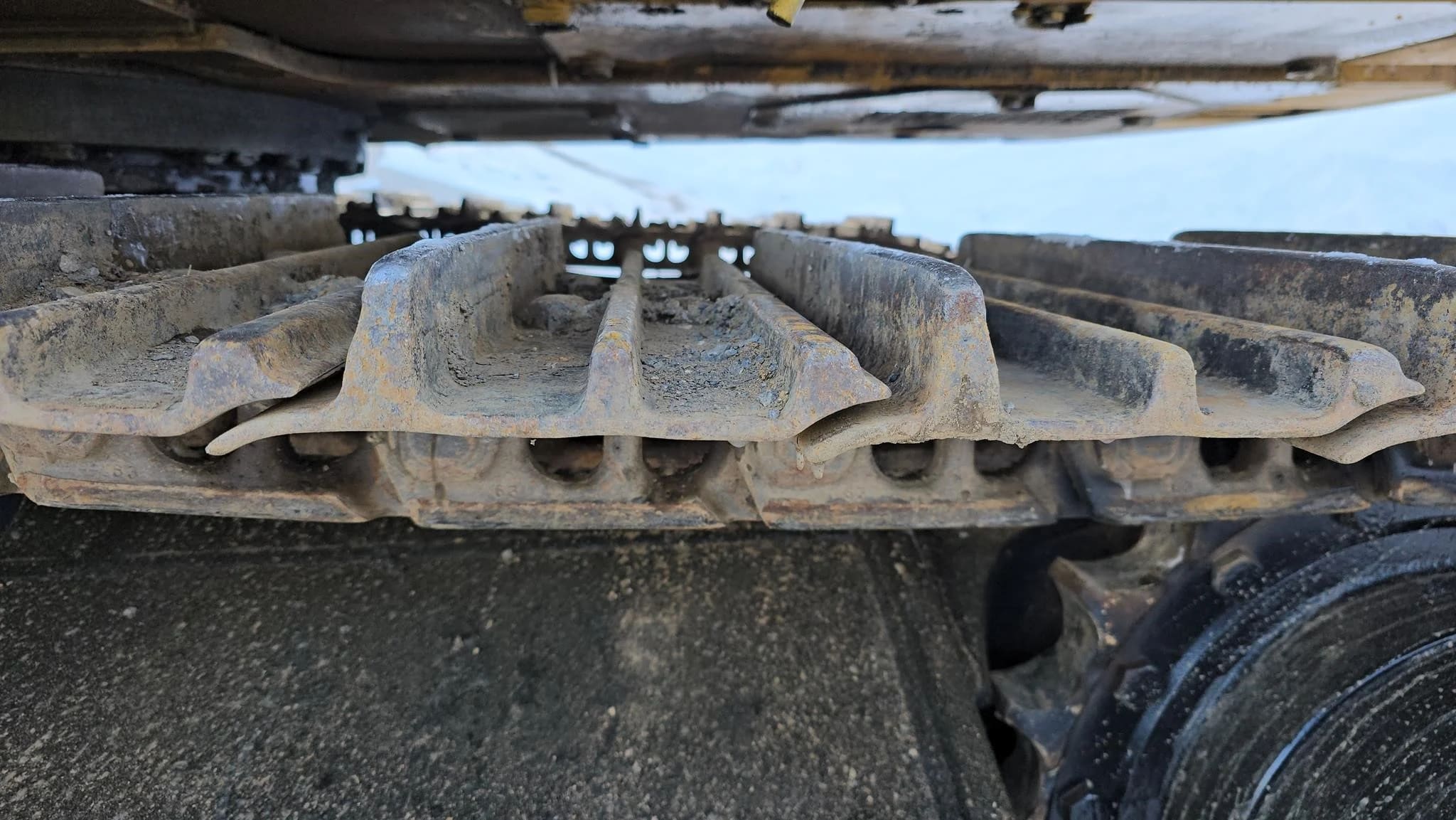

Shoe Size: 24 in (60 cm)
Track Gauge: 7 ft (2 m)

Weights:

Operating Weight: 36,817 lbs (16,700 kg)
