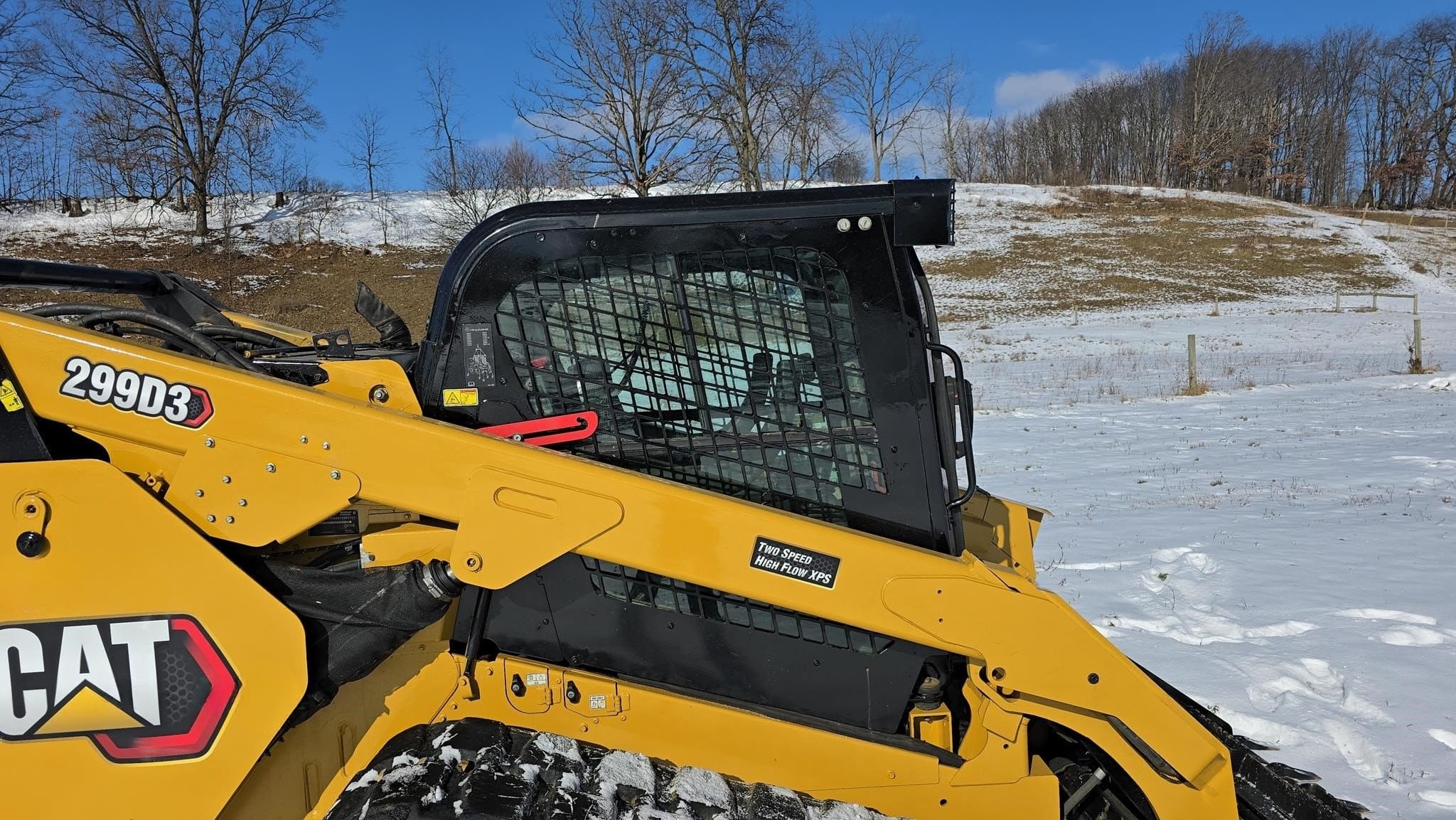

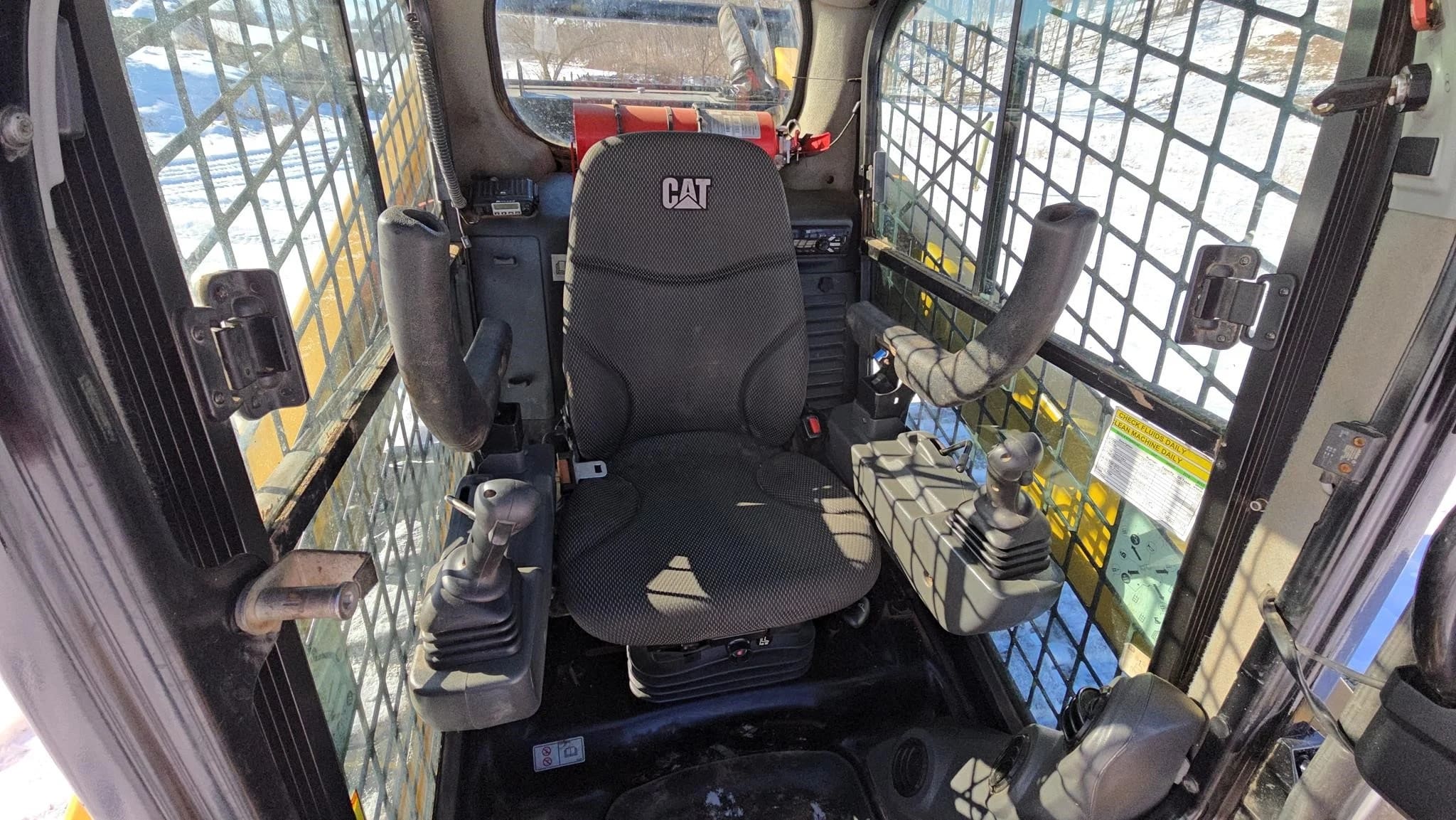

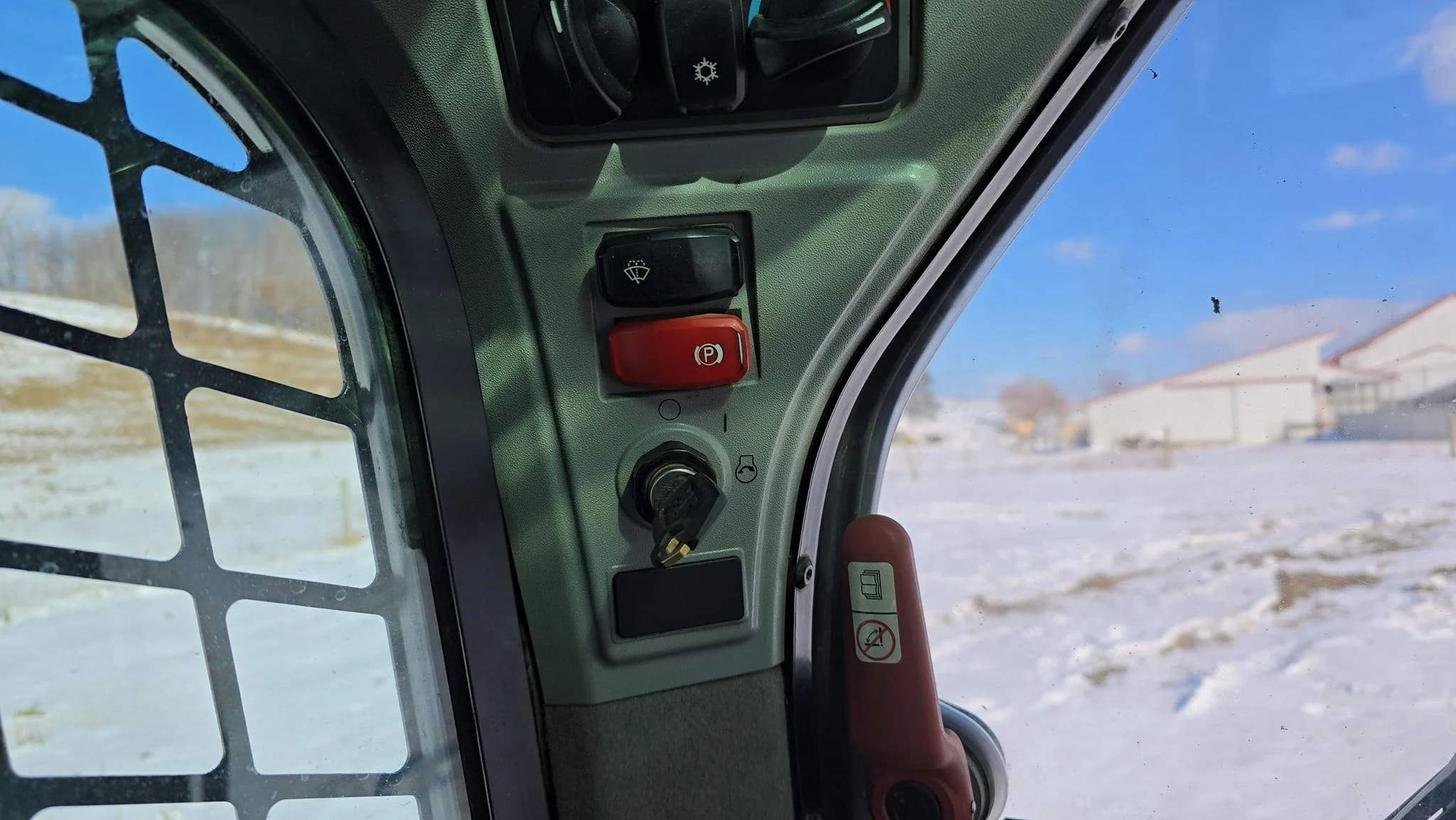

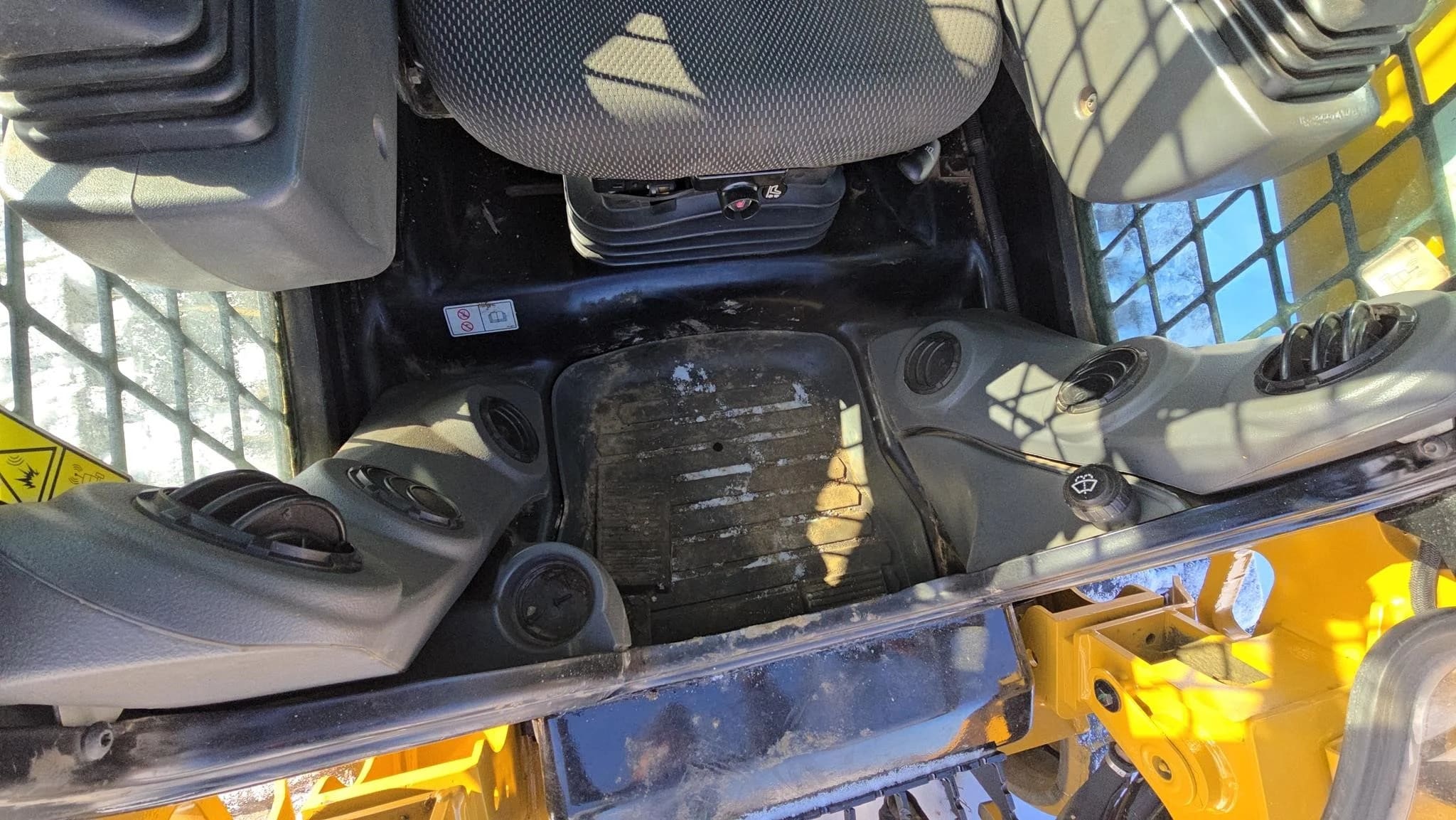

Cab:

FOPS: ISO 3449:2005 Level I
FOPS Level II: ISO 3449:2005 Level II
ROPS: ISO 3471:2008

Dimensions:

Bucket Pin Height - Carry Position: 8 in (20 cm)
Bucket Pin Height - Maximum Lift: 11 ft (3 m)
Bucket Pin Reach - Maximum Lift: 16 in (40 cm)
Clearance at Max Lift and Dump: 8 ft (2 m)
Clearance at Maximum Lift and Dump: 94 in (240 cm)
Departure Angle: 30 degrees
Dump angle: 52 degrees
Ground Clearance: 9 in (22 cm)
Height - Top of Cab: 7 ft (2 m)
Length - with Bucket: 10 ft (3 m)
Length - With Bucket on Ground: 152 in (386 cm)
Maximum Dump Angle: 52 degrees
Maximum Overall Height: 158 in (402 cm)
Maximum Reach - With Arms Parallel: 50 in (128 cm)
Overall height: 13 ft (4 m)
Overall Length - Track: 89 in (227 cm)
Overall Track Length: 8 ft (2 m)
Rack Back Angle - Maximum Height: 83 degrees
Reach at Max Lift and Dump: 3 ft (1 m)
Reach at Maximum Lift/Dump: 31 in (78 cm)
Turn Radius from Center - Bucket: 91 in (232 cm)
Turn Radius from Center - Coupler: 58 in (147 cm)
Turn Radius from Center - Rear: 73 in (186 cm)
Turning Radius from Center - machine rear: 73 in (185 cm)
Vehicle Width: 78 in (198 cm)

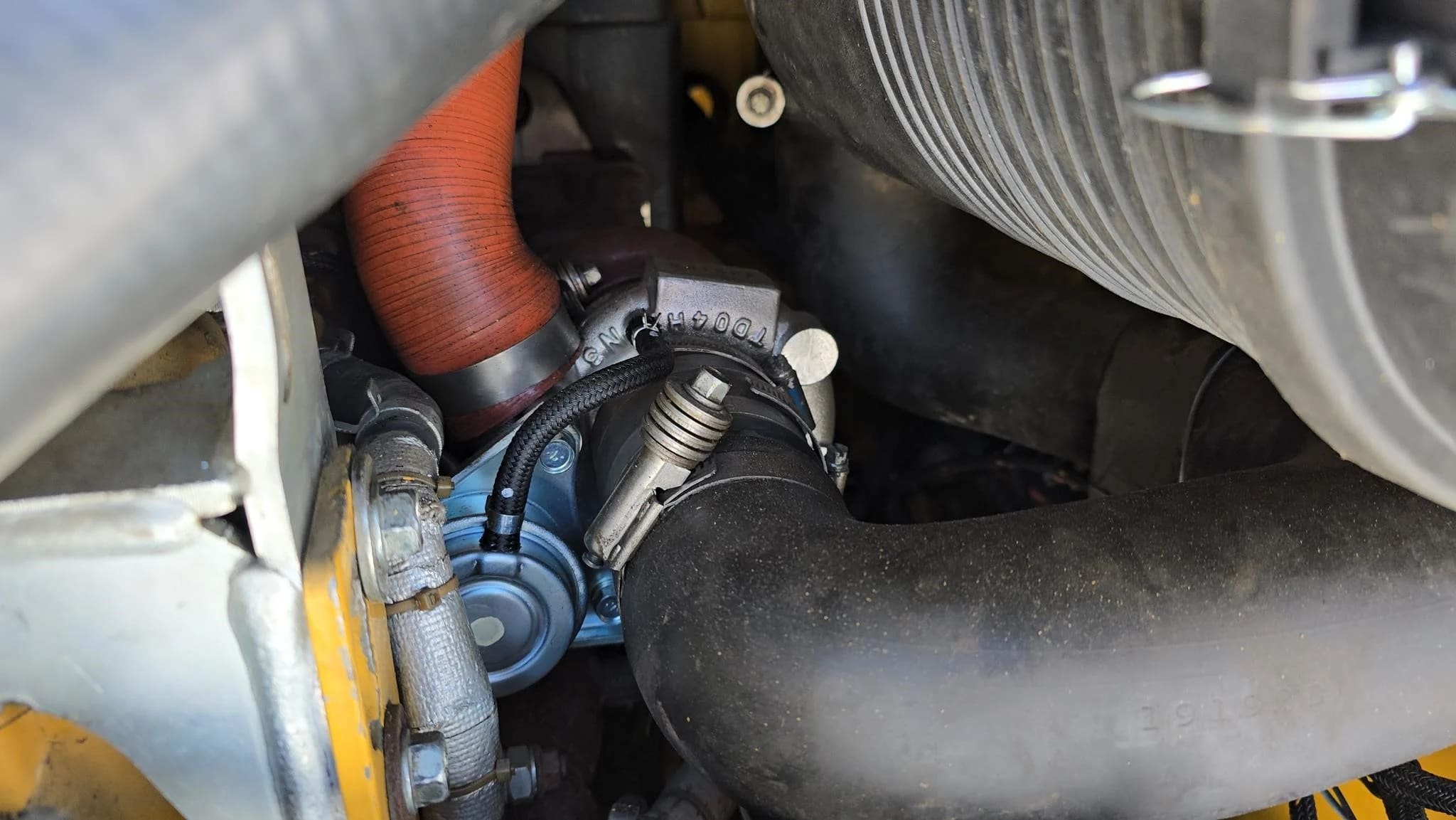

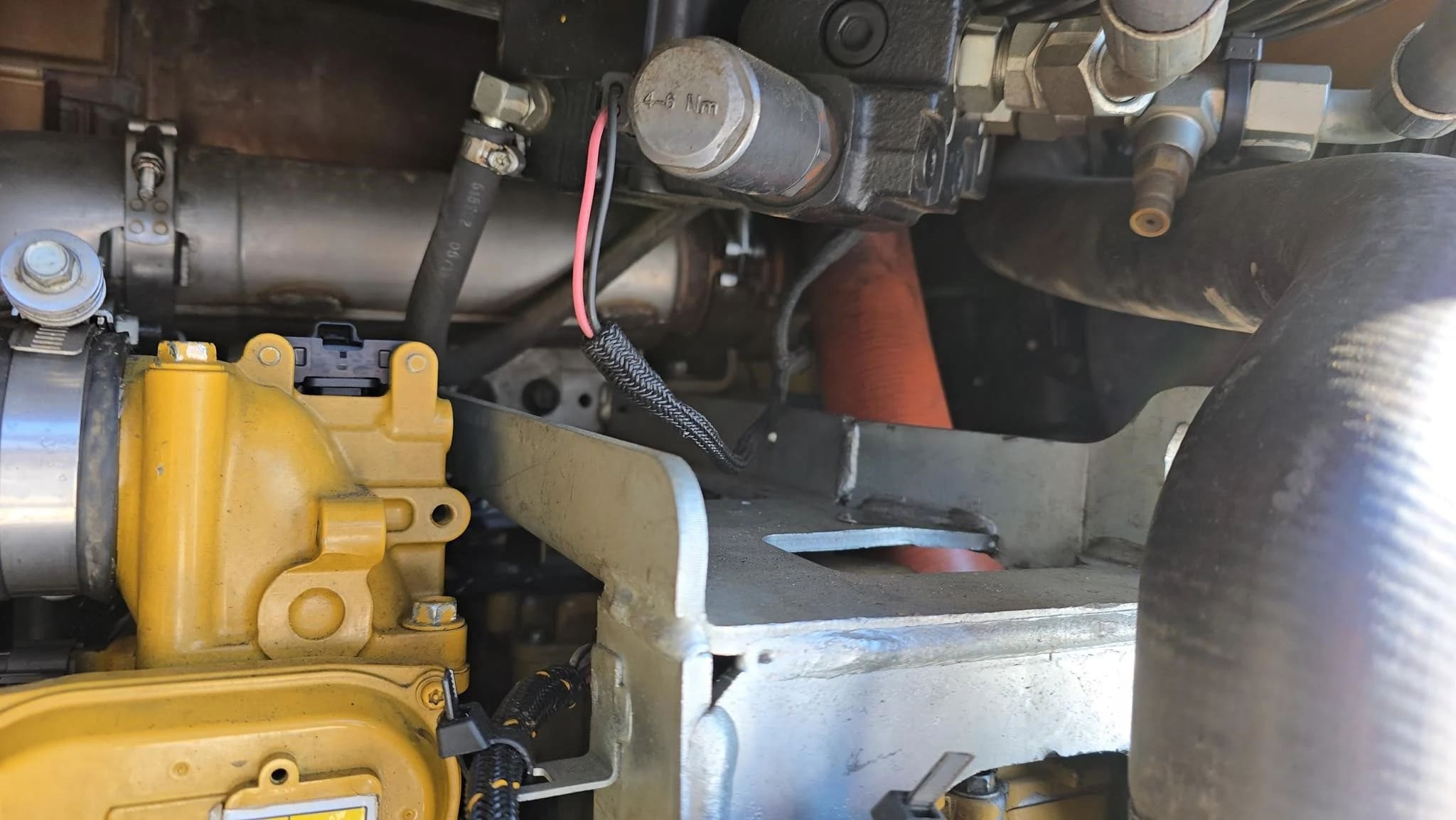

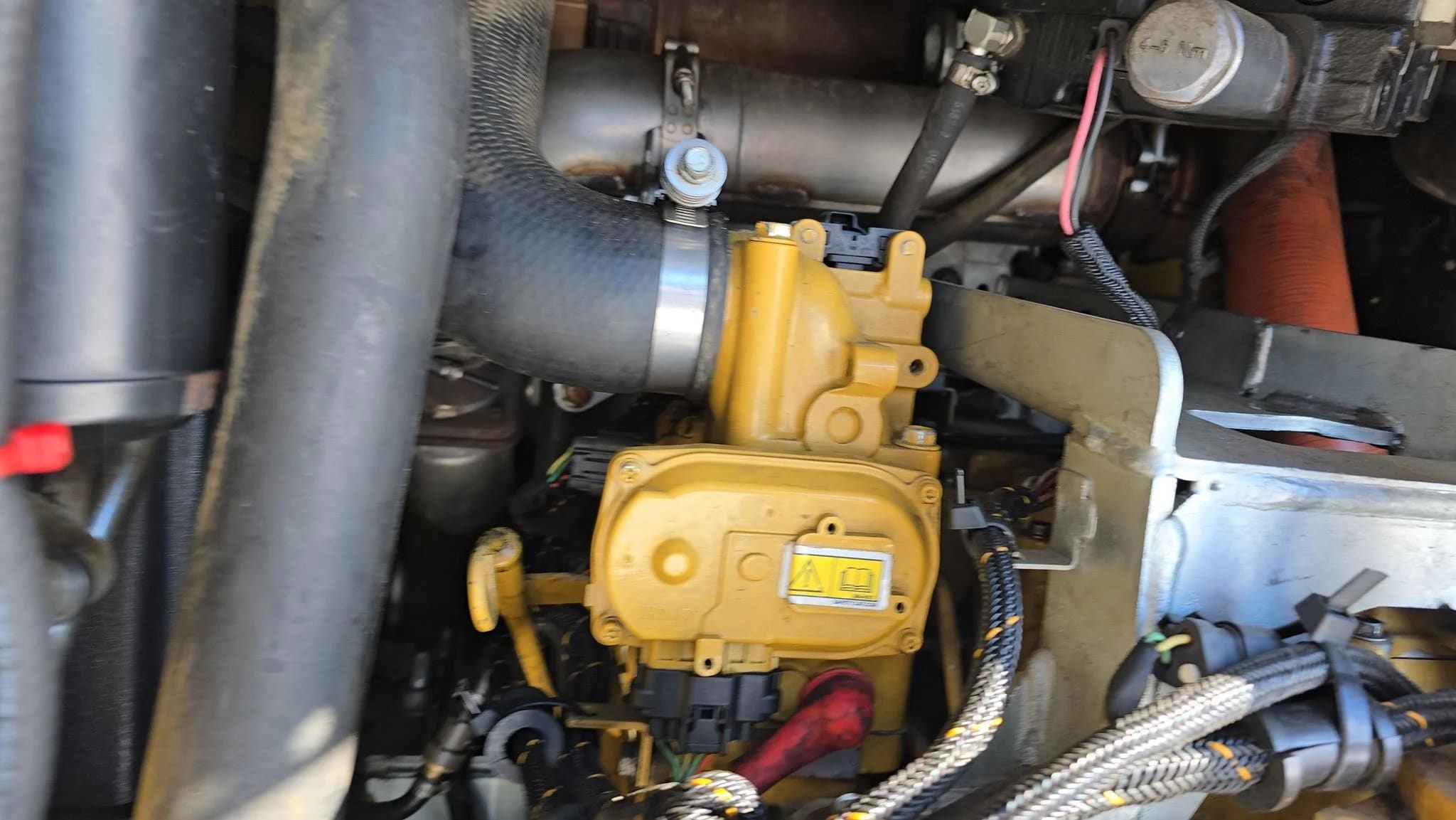

Engine:

Aspiration: Turbocharged
Bore: 4 in (10 cm)
Displacement: 232 cu in (3,802 cu cm)
Engine Model: Cat C3.8 DIT (Turbo)
Gross Power: 98 hp (73 kw)
Gross Power - SAE J1995: 98 hp (73 kw)
Net Power: 95 hp (71 kw)
Net Power - SAE 1349: 95 hp (71 kw)
Stroke: 5 in (12 cm)

Hydraulic System:

Hydraulic Flow (1): Standard
Hydraulic Flow (2): High Flow XPS
Hydraulic Power: 44 hp (33 kw)
Hydraulic Power - Calculated: 76 hp (57 kw)
Loader Hydraulic Flow: 23 gpm (87 lpm)
Loader Hydraulic Pressure: 3335 psi
Maximum Loader Hydraulic Flow: 32 gpm (121 lpm)
Maximum Loader Hydraulic Pressure: 4061 psi
Pump Flow: 23 gpm (87 lpm)

Loader:

Operating Load Rating: 3,225 lbs (1,463 kg)
Operating Load Rating: 2,975 lbs (1,349 kg)
Operating Width: 76 in (193 cm)
Tipping Load: 8,499 lbs (3,855 kg)

Operating Specifications:

Alternator Supplied Amperage: 100 amps
Breakout Force - Lift Cylinder: 6,122 lbs (2,777 kg)
Breakout Force - Tilt Cylinder: 7,552 lbs (3,426 kg)
Cooling System Fluid Capacity: 4 gal (14 l)
Fuel Capacity: 31 gal (117 l)
Ground Contact Area: 2,463 cu in (40,361 cu cm)
Ground Pressure: 4.4 psi
Hydraulic System Fluid Capacity: 16 gal (61 l)
Max Speed - high range: 9 mph (14 kph)
Max Speed - low range: 5 mph (8 kph)
Operating Voltage: 12 volts
Operating Weight: 10,898 lbs (4,943 kg)
Rated Operating Capacities - 35% Tipping Load: 2,975 lbs (1,349 kg)
Rated Operating Capacities - 50% Tipping Load: 4,250 lbs (1,928 kg)
Rated Operating Capacity with Optional Counterweight: 4,500 lbs (2,041 kg)
Tipping Load: 8,500 lbs (3,856 kg)

Power Train:

Travel Speed Forward: 5 mph (8 kph)
Travel Speed Forward - 2-Speed: 8 mph (14 kph)
Travel Speed Reverse: 5 mph (8 kph)
Travel Speed Reverse - 2-Speed: 8 mph (14 kph)

Service Refill Capacities:

Cooling System: 4 gal (16 l)
Engine Crankcase: 4 gal (13 l)
Fuel Tank: 32 gal (122 l)
Hydraulic System: 15 gal (55 l)
Hydraulic Tank: 10 gal (39 l)

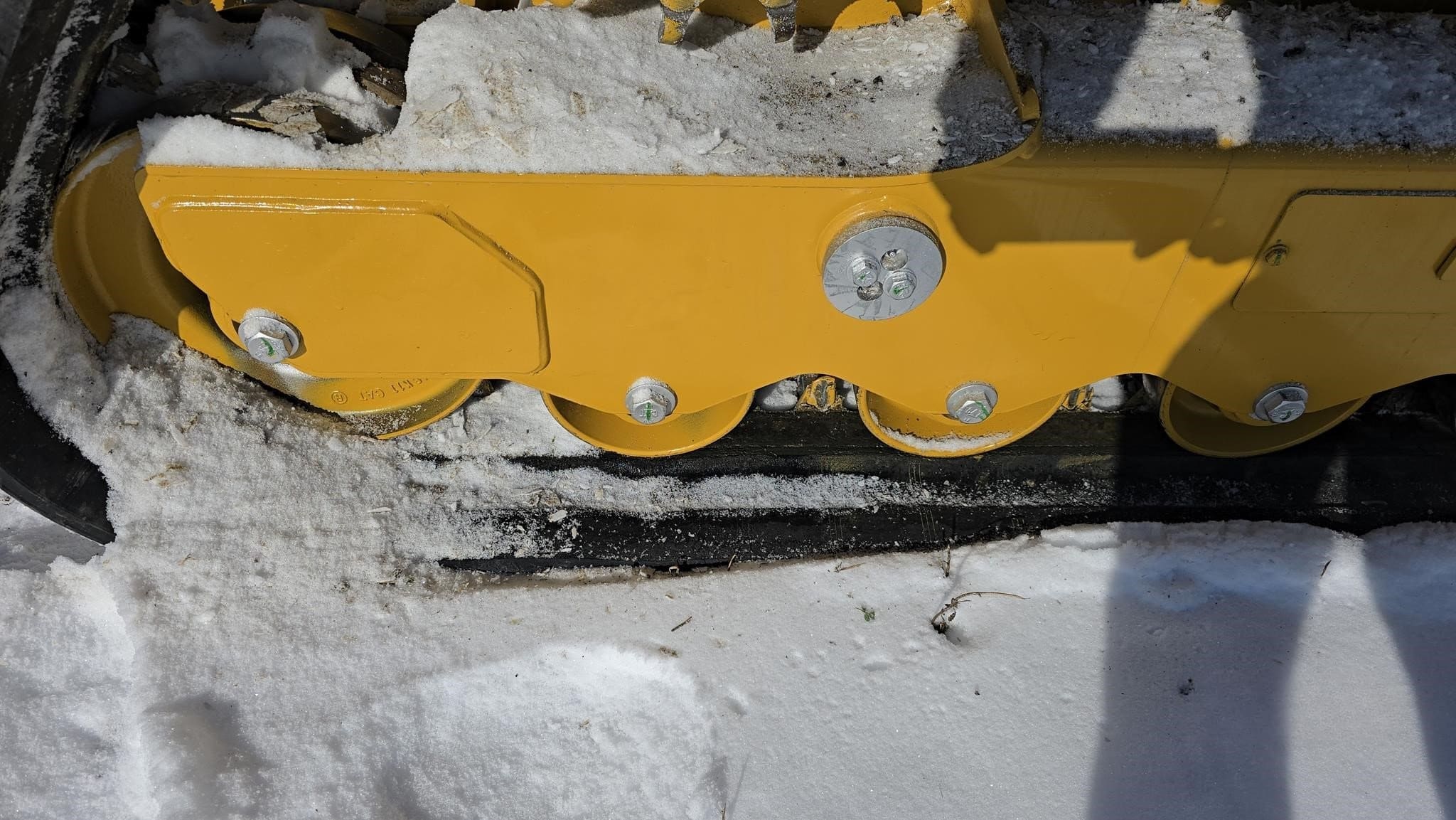

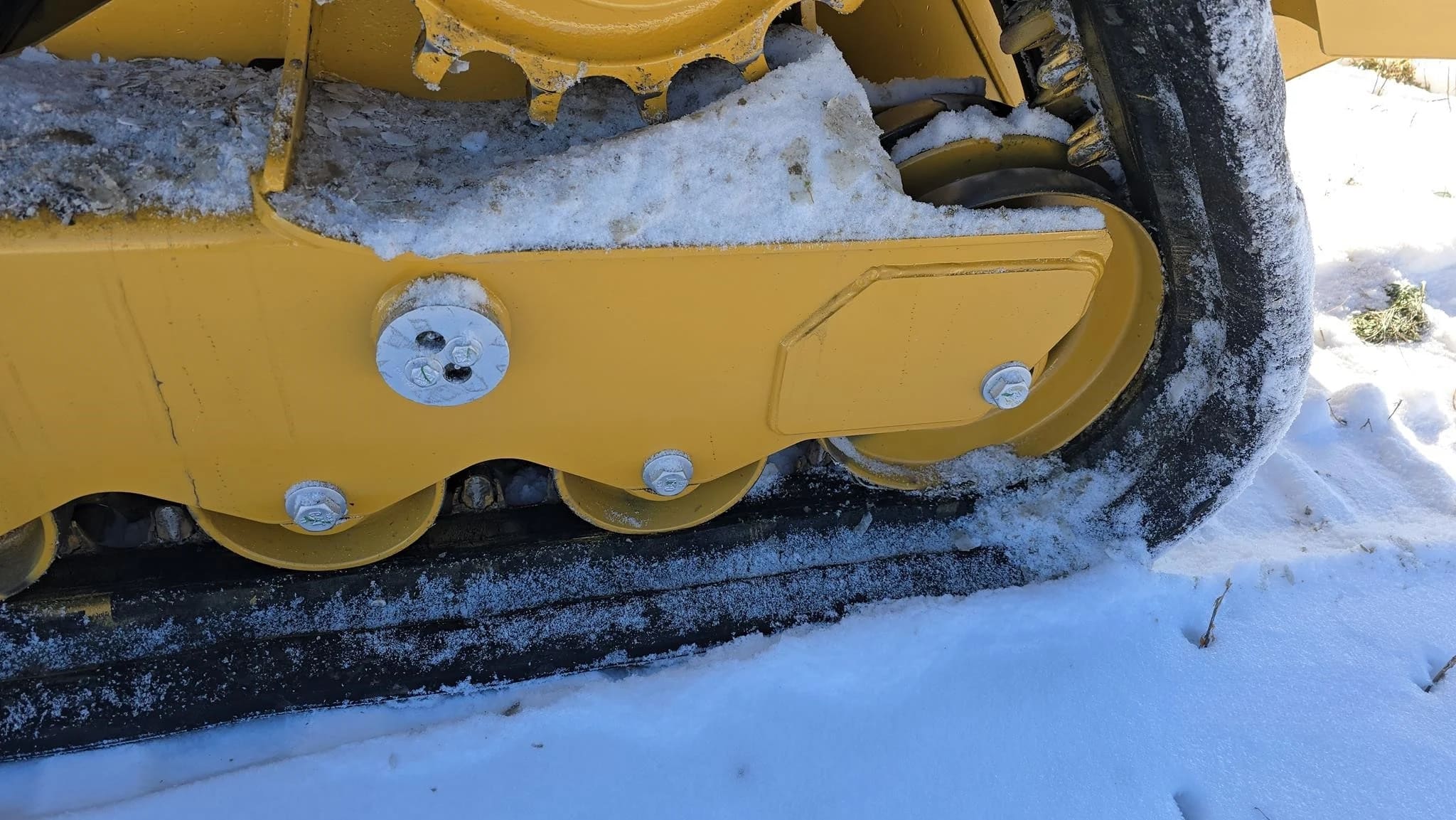

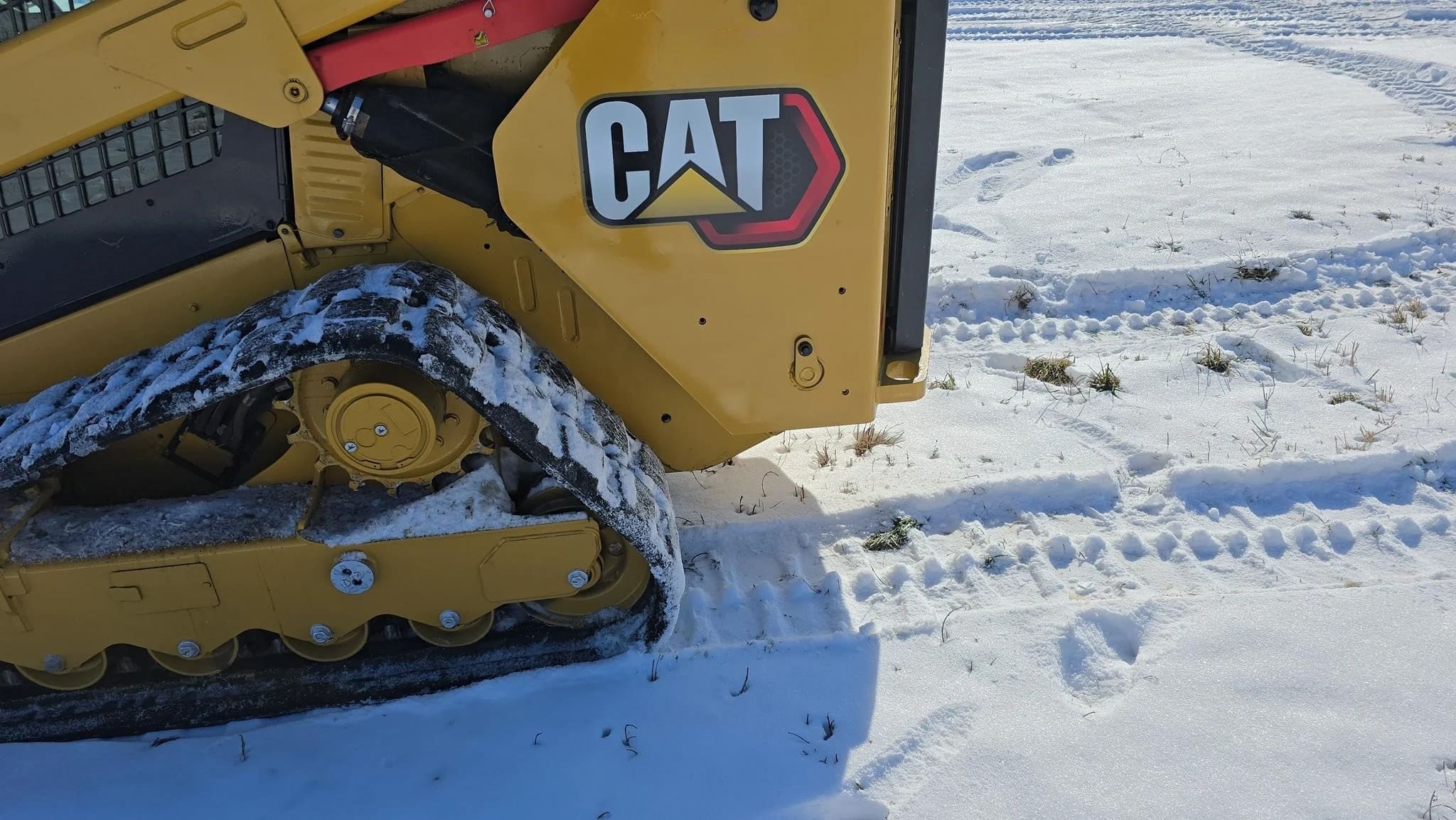

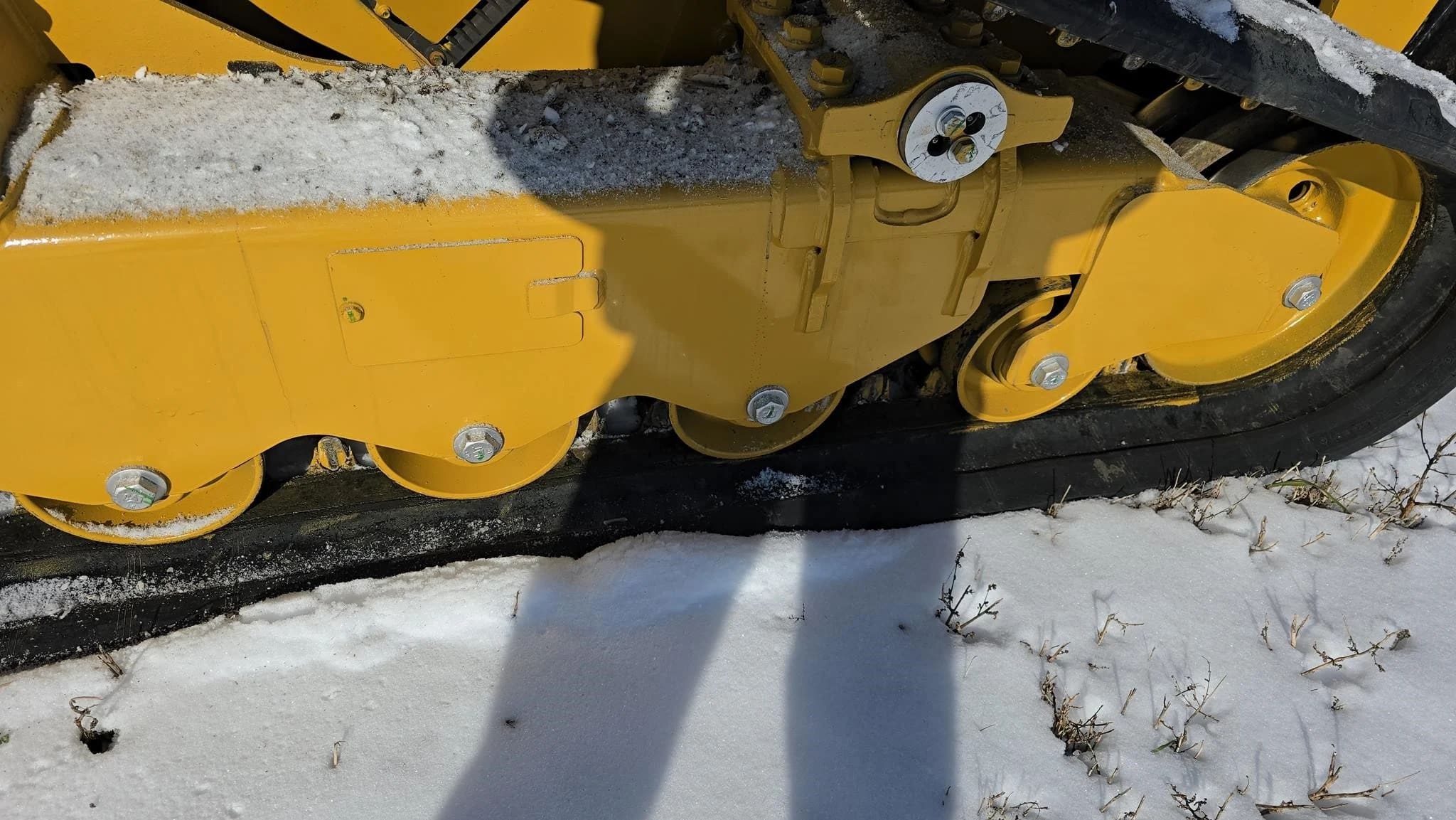

Undercarriage:

Ground Contact Area: 2,463 cu in (40,361 cu cm)
Ground Pressure: 4.4 psi

Weights:

Operating Weight: 10,718 lbs (4,862 kg)
