Dimensions:

Height To Top Of Cab: 6.93ft in
Ground Clearance: 8.9in
Clearance At Max Lift And Dump: 7.5ft in
Reach At Max Lift And Dump: 2ft in
Clearance At Maximum Lift And Dump: 89.9in
Departure Angle: 35 degrees
Dump Angle: 52degrees
Height - Top Of Cab: 6.93ft in
Bucket Pin Height - Carry Position: 7.8in
Bucket Pin Height - Maximum Lift: 10.09ft in
Bucket Pin Reach - Maximum Lift: 9.4in
Turning Radius From Center - Machine Rear: 61.5in
Vehicle Width (320 Mm/12.6 In Tracks): 66in
Vehicle Width (400 Mm/15.7 In Tracks): 69in
Length - Track On Ground: 59in
Length - With Bucket On Ground: 137.31in
Length - Without Bucket: 108.9in
Length With Bucket: 11.44ft in
Length With Out Bucket: 9.08ft in
Maximum Dump Angle: 52 degrees
Maximum Overall Height: 154.1in
Maximum Reach - With Arms Parallel To Ground: 51.4in
Overall Height: 12.85ft in
Overall Length - Track: 78.7in
Overall Track Length: 6.56ft in
Rack Back Angle - Maximum Height: 87 degrees
Reach - Maximum Lift/Dump: 23.9in
Turning Radius From Center - Bucket: 86in
Turning Radius From Center - Coupler: 54.8in

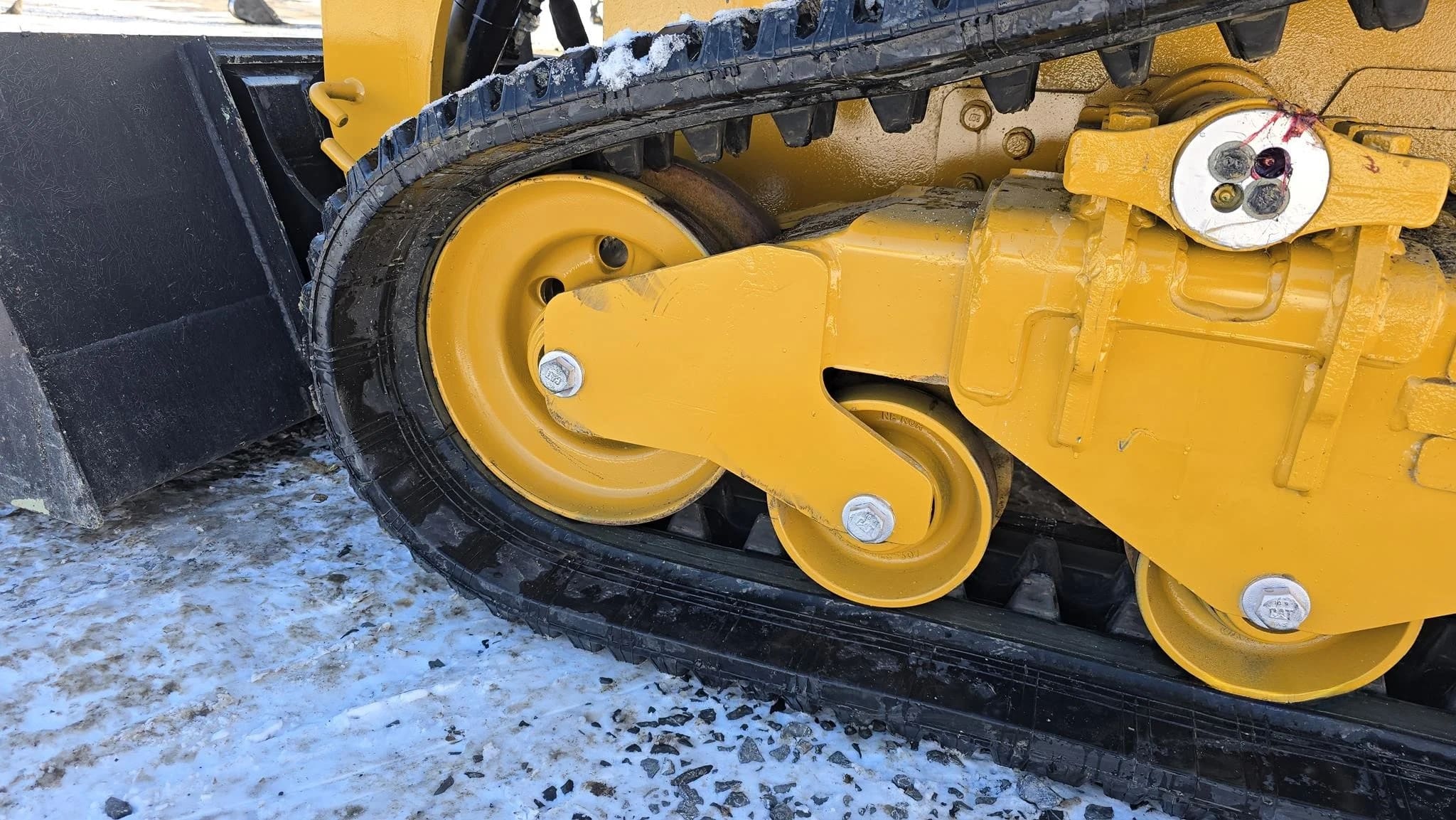

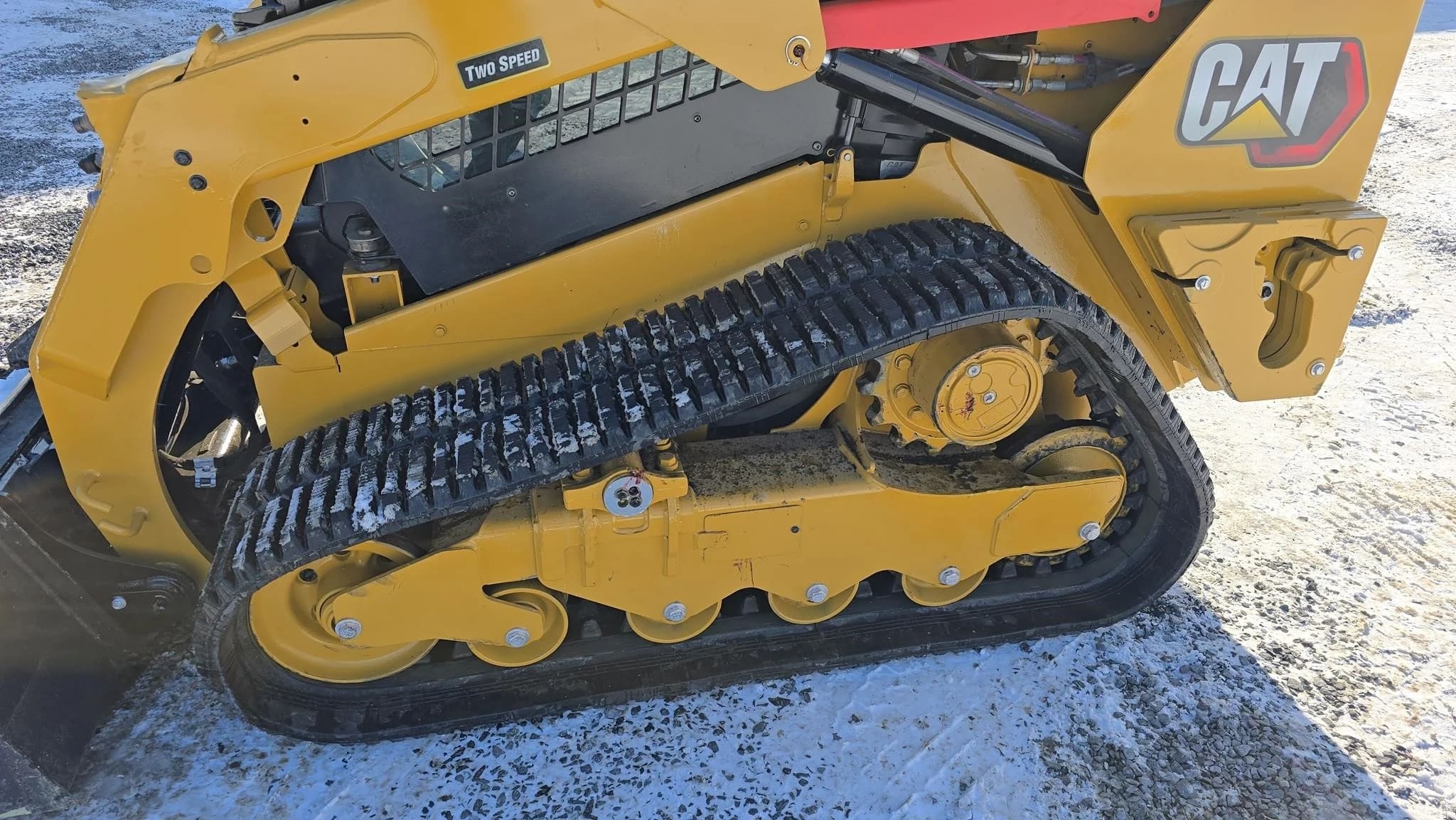

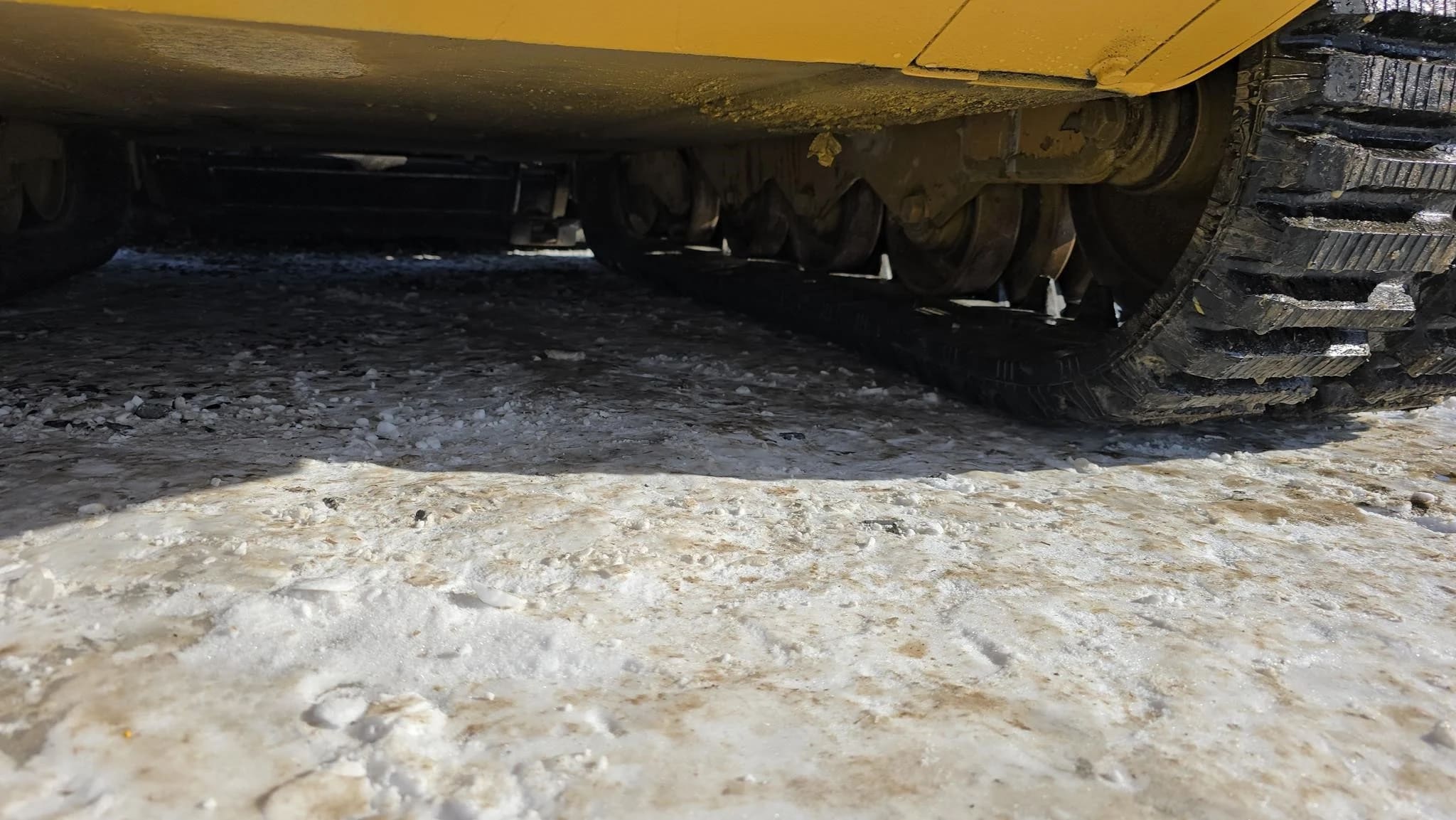

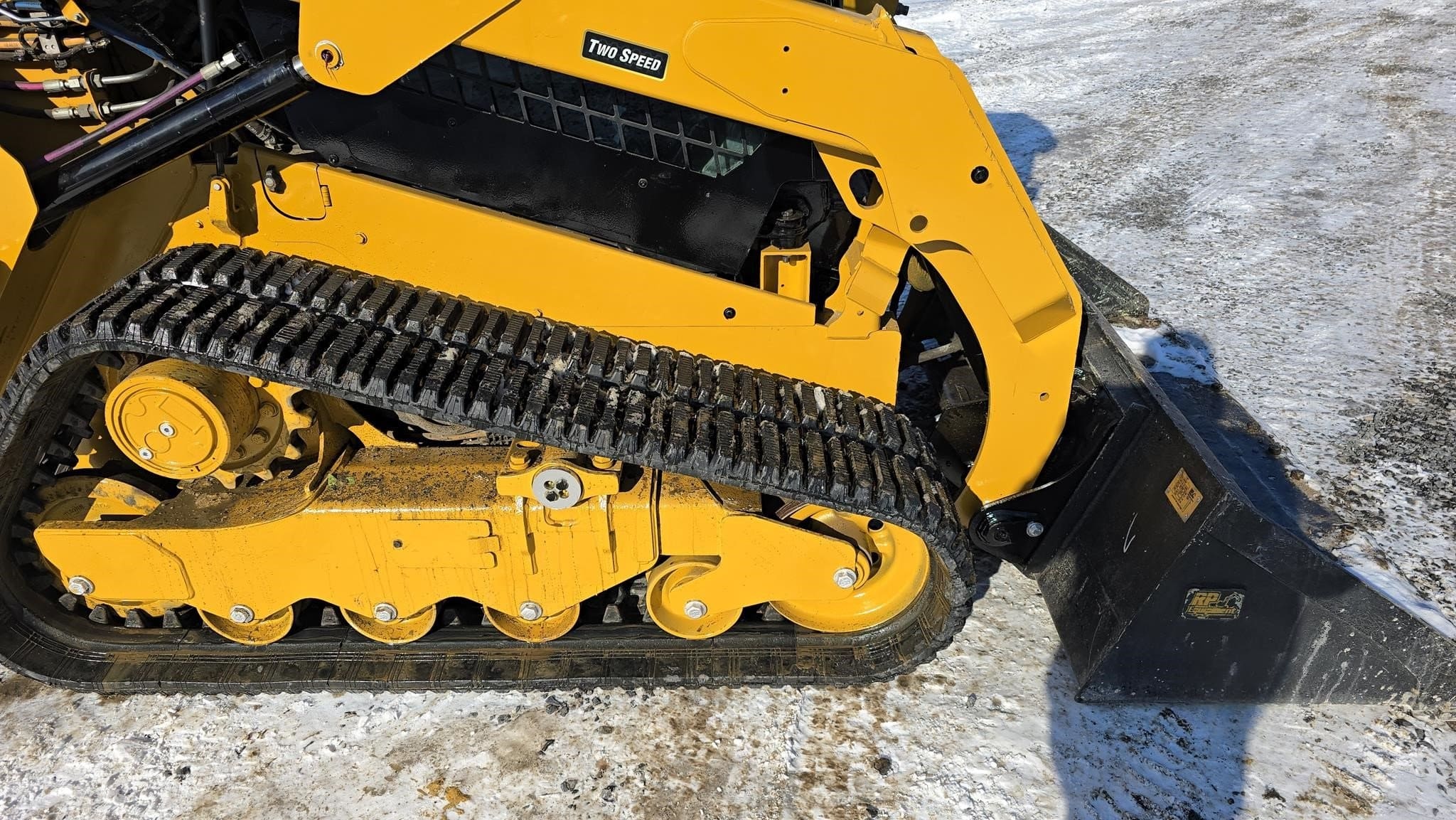

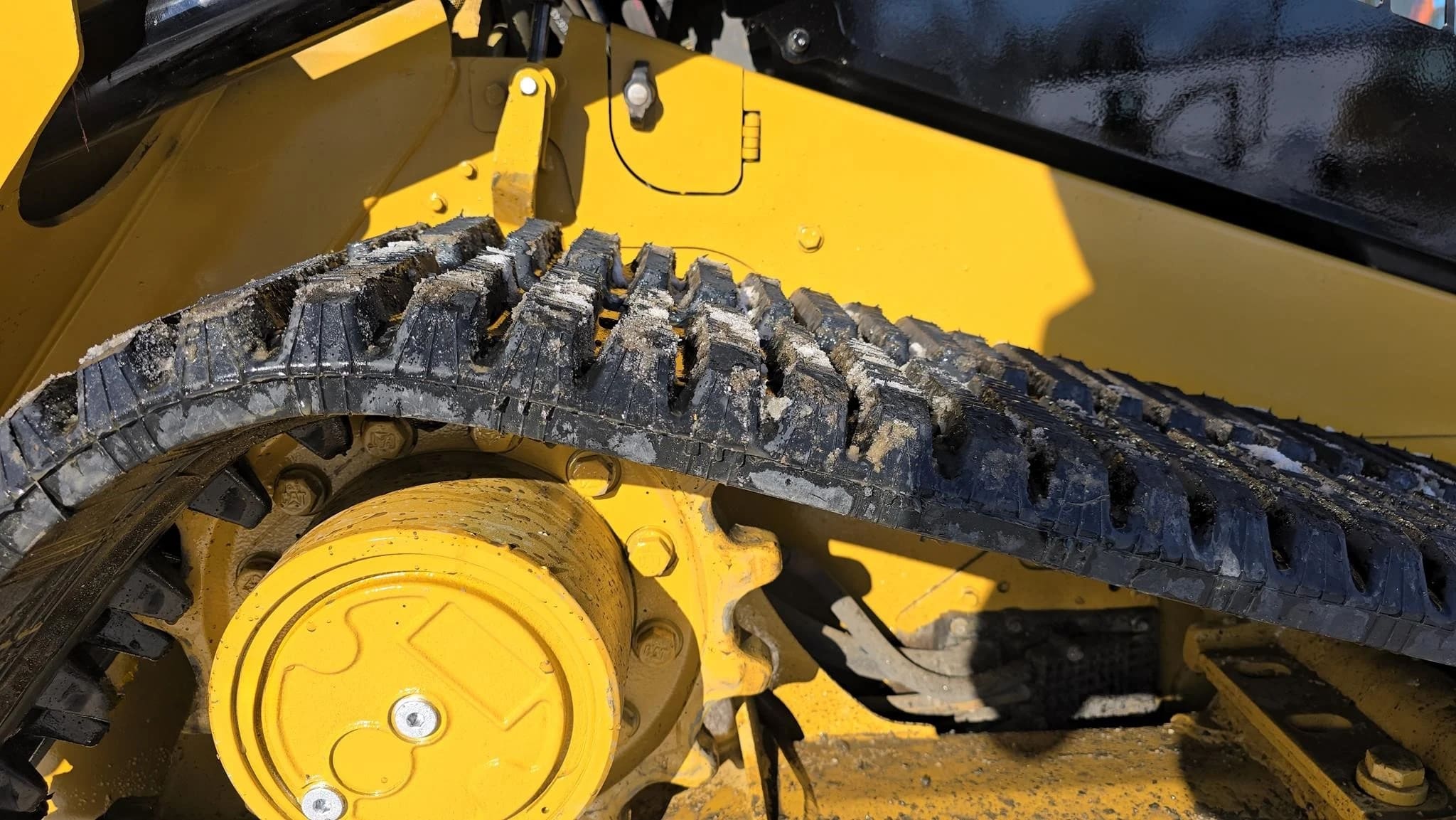

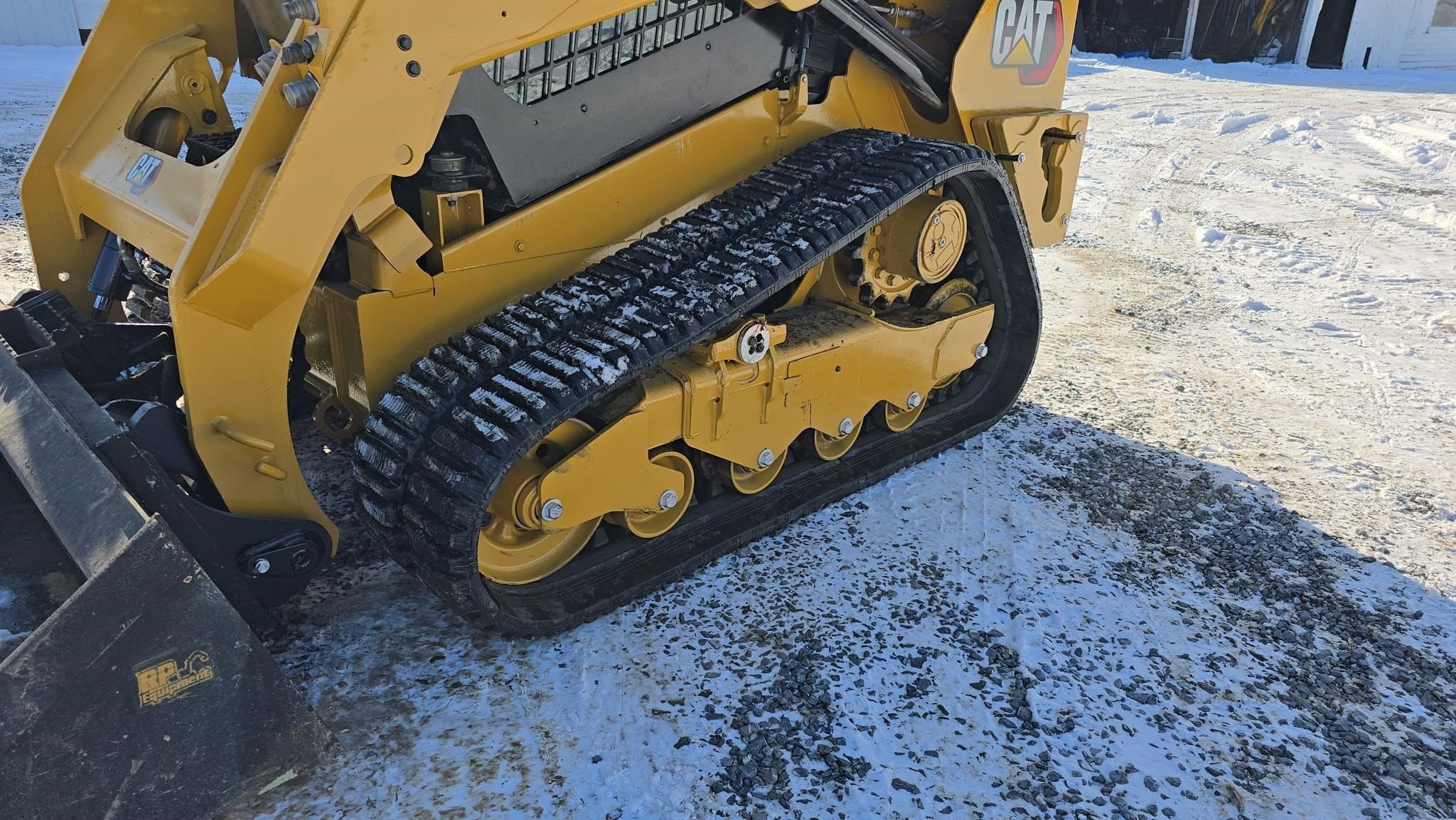

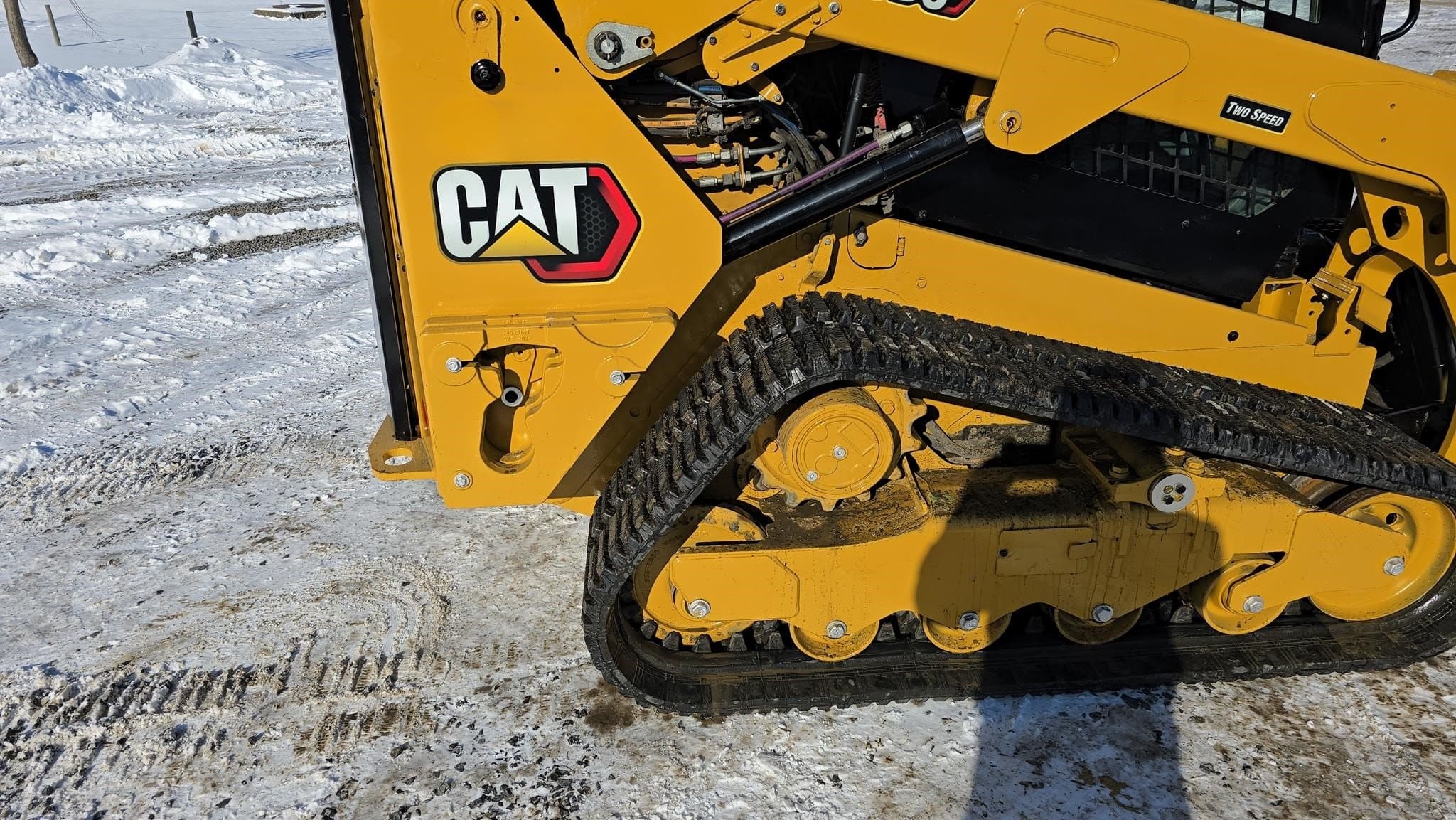

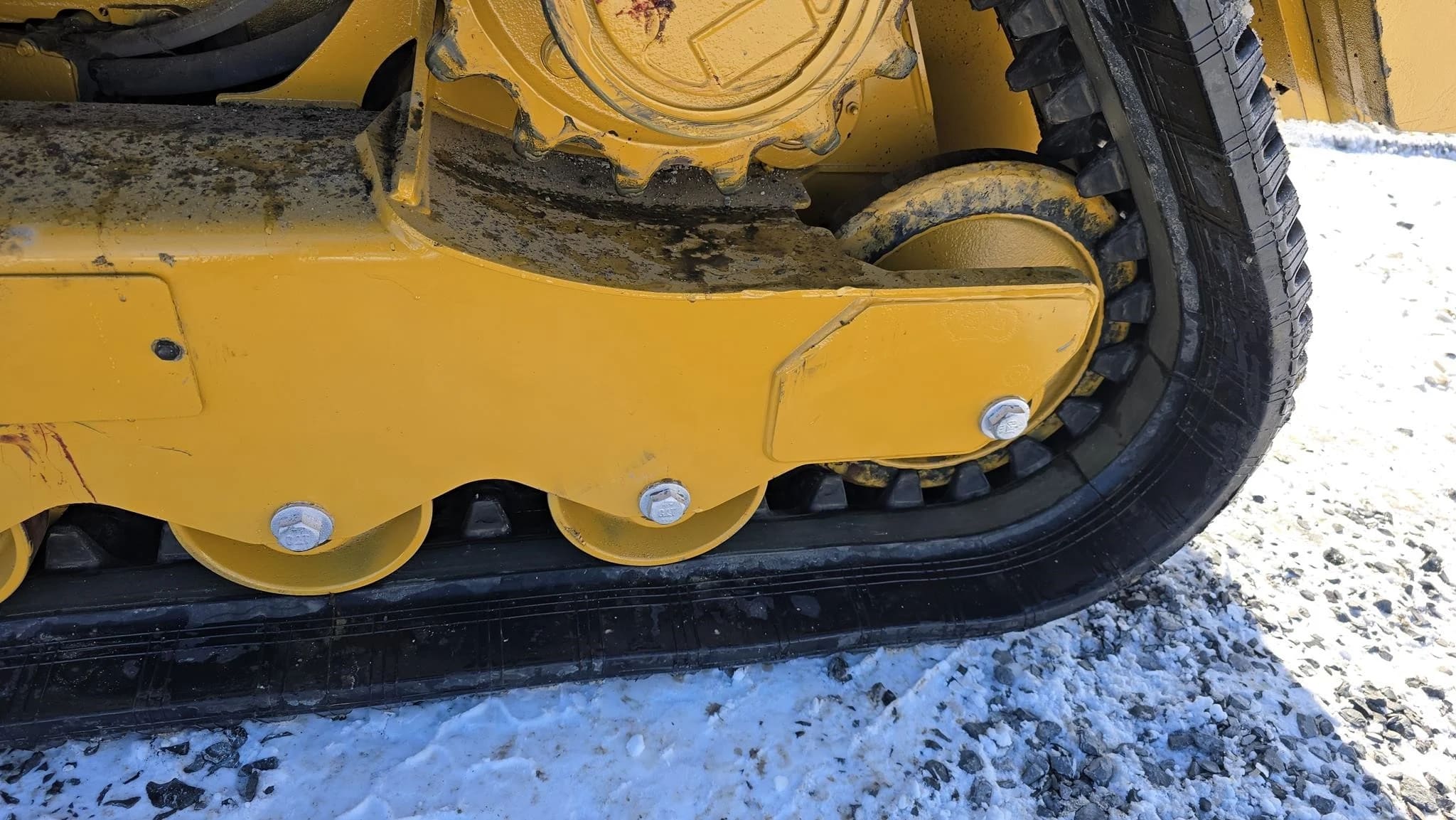

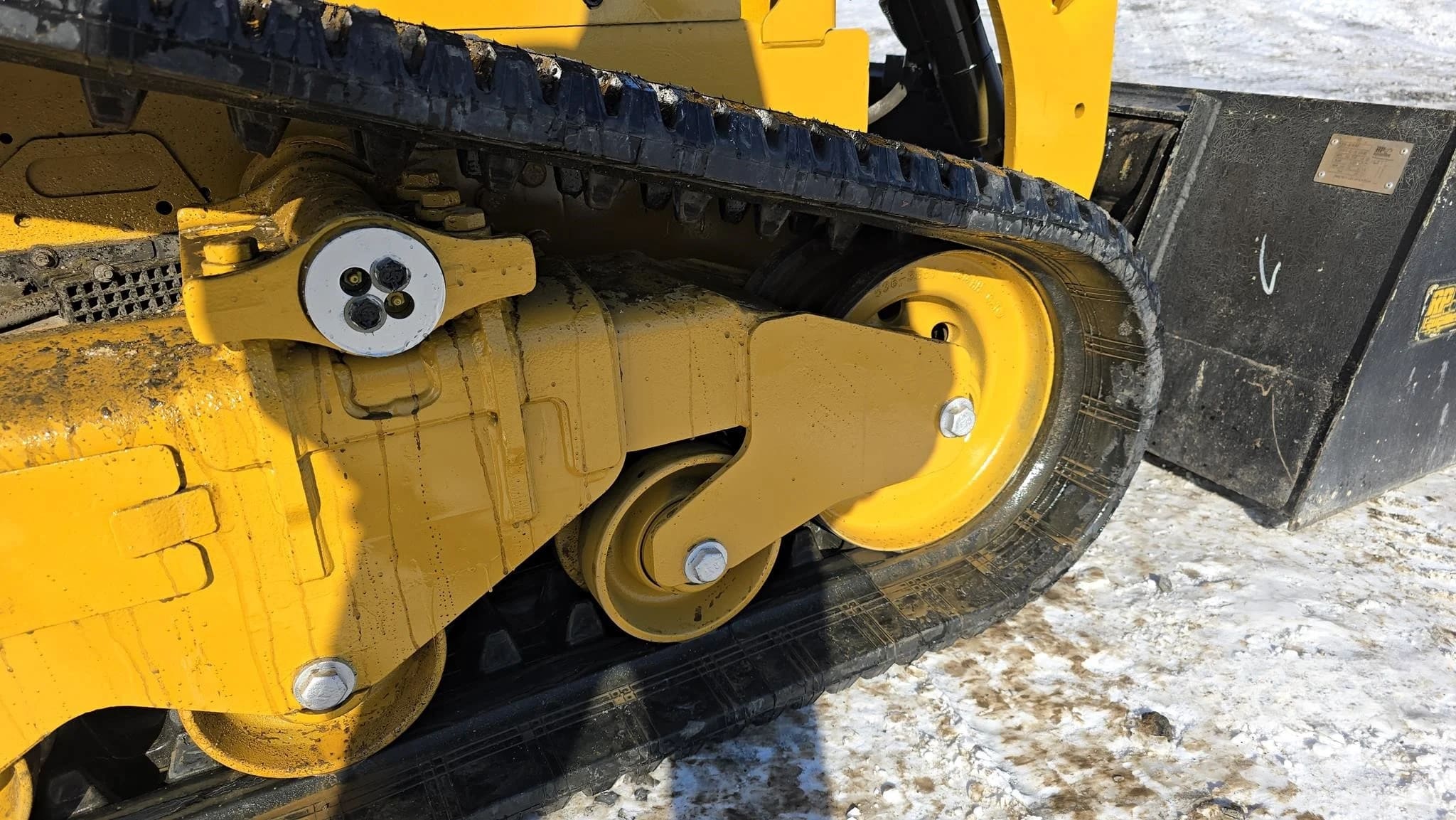

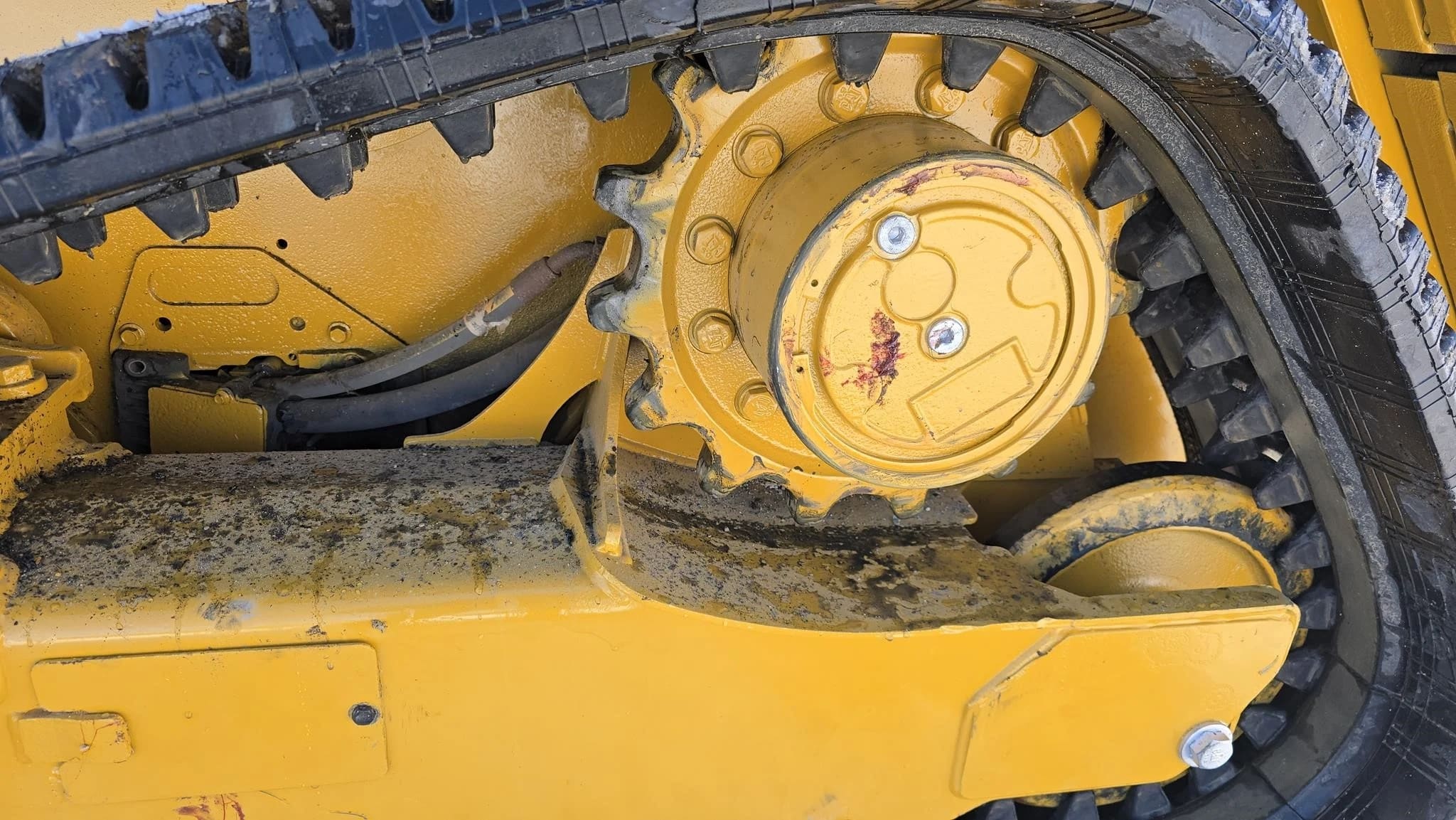

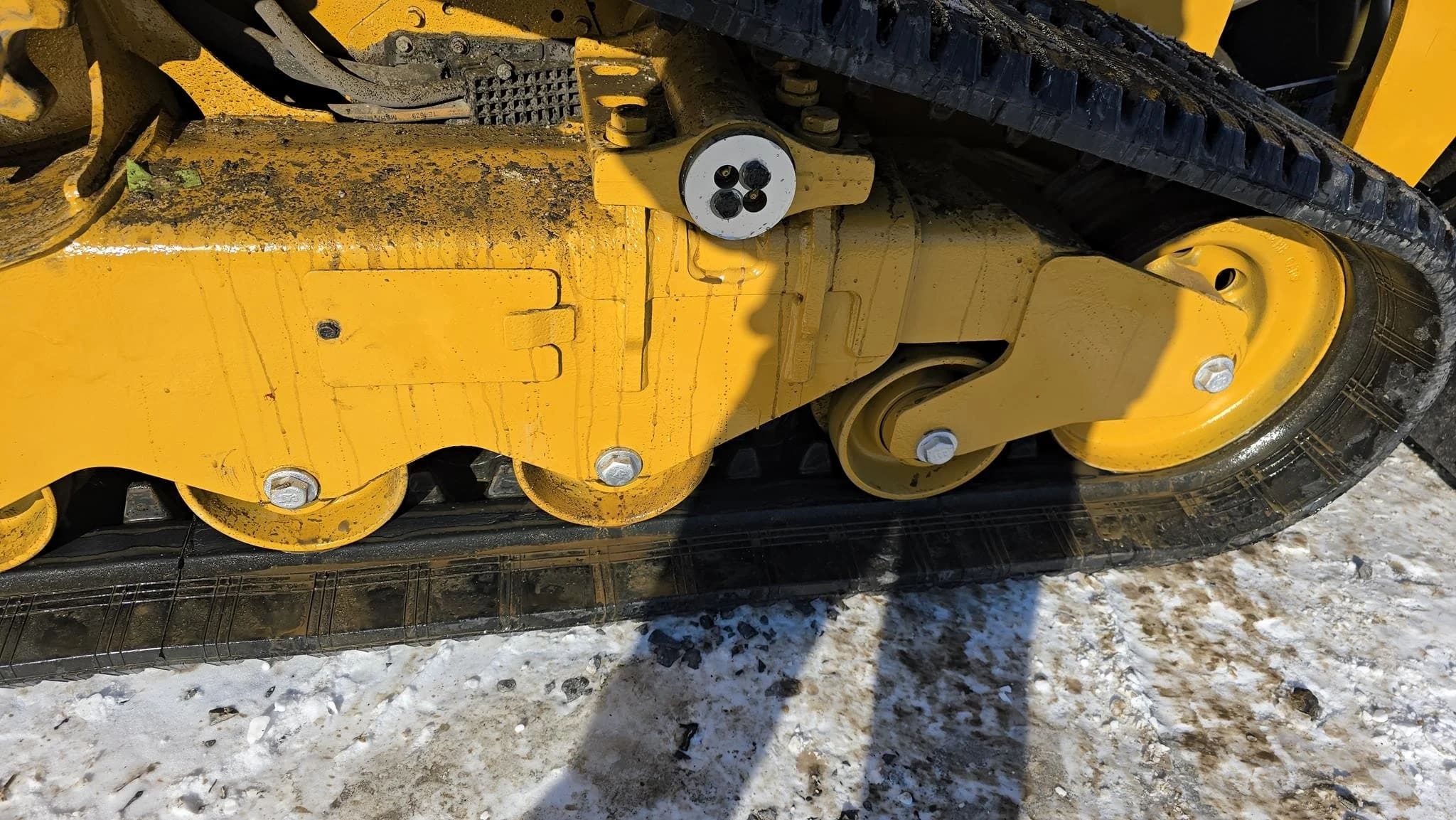

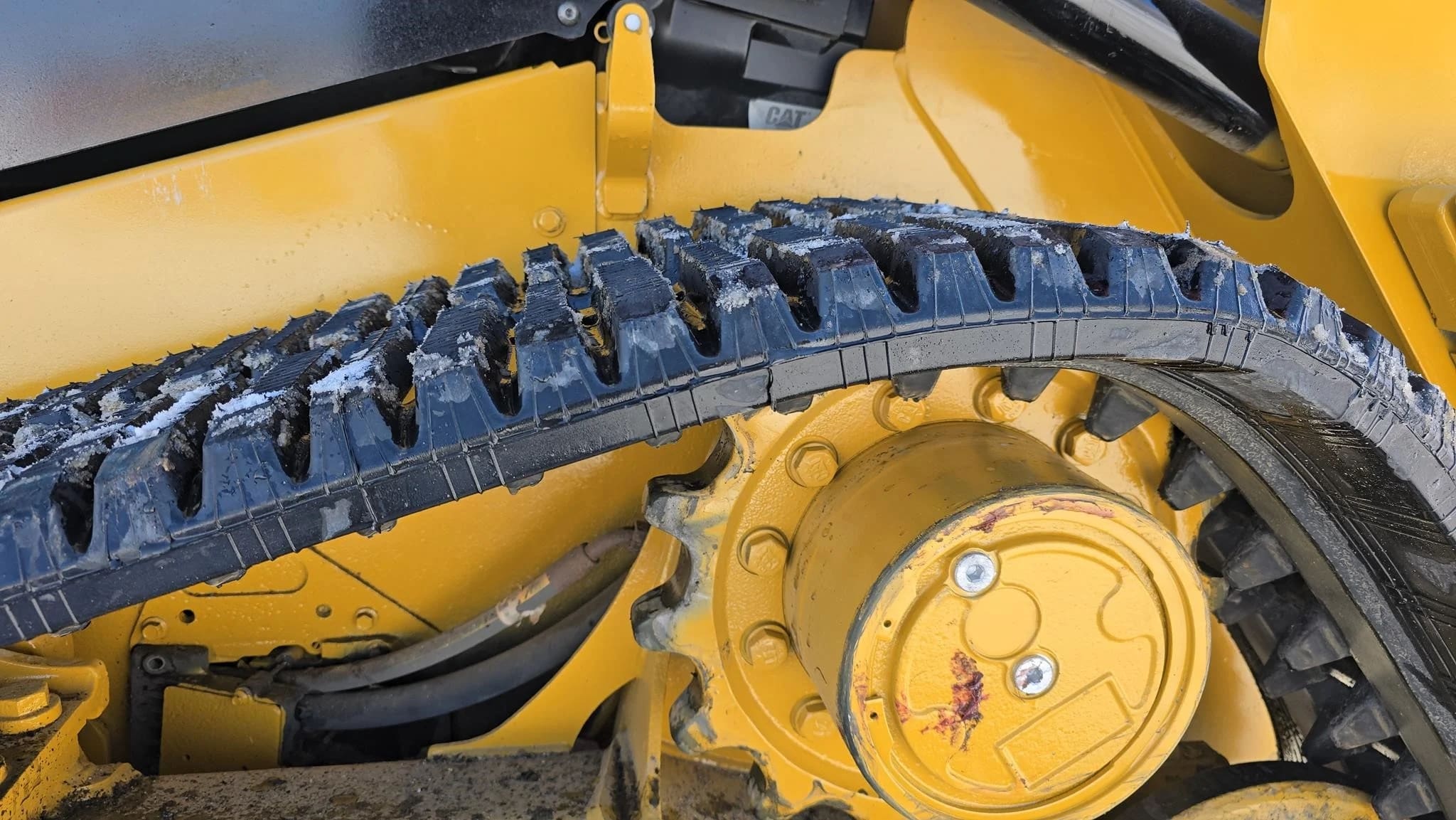

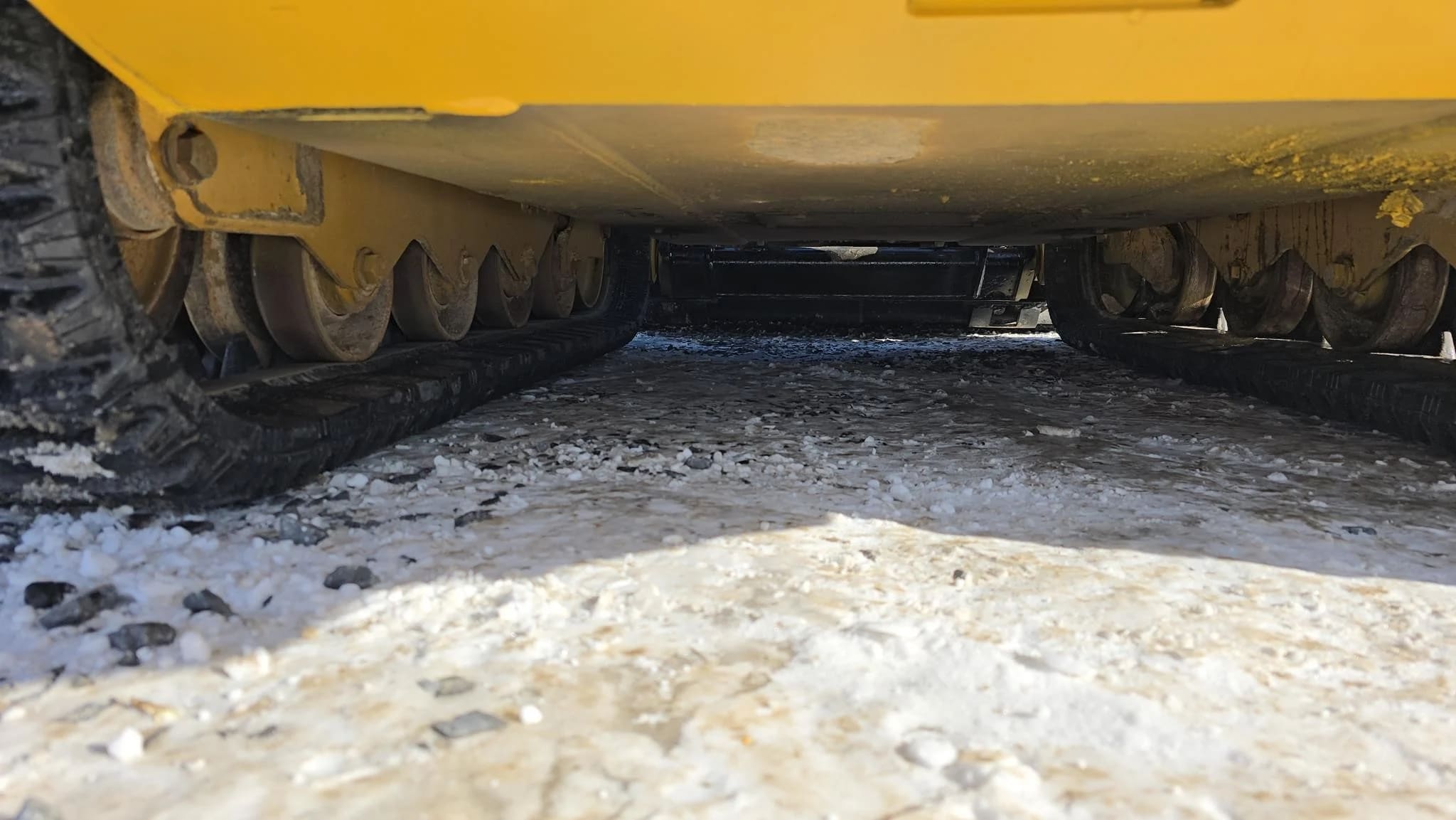

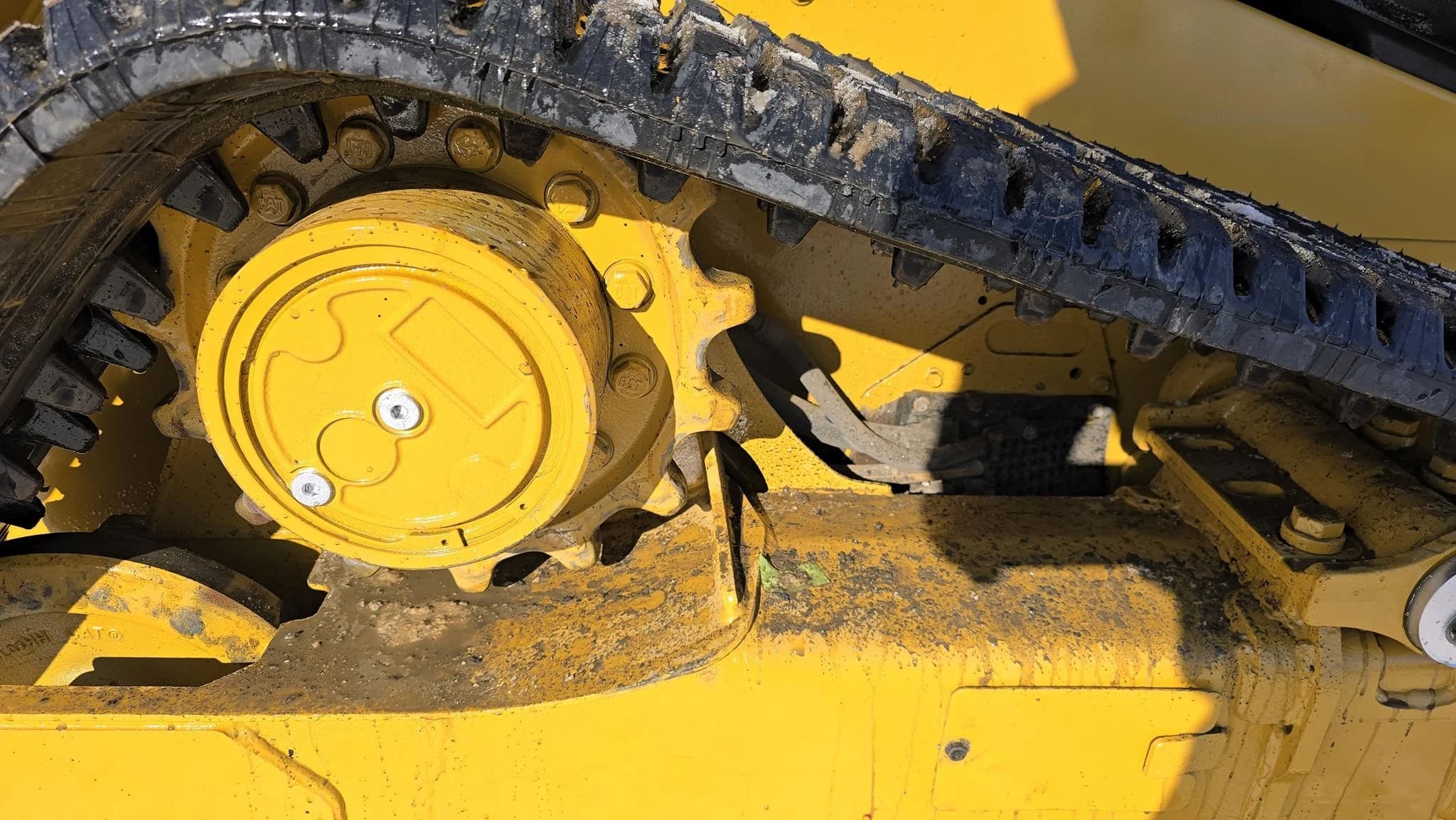

Undercarriage:

Length Of Track On Ground: 11.44ft in
Ground Pressure: 5.97psi
Ground Contact Area: 1488.01in

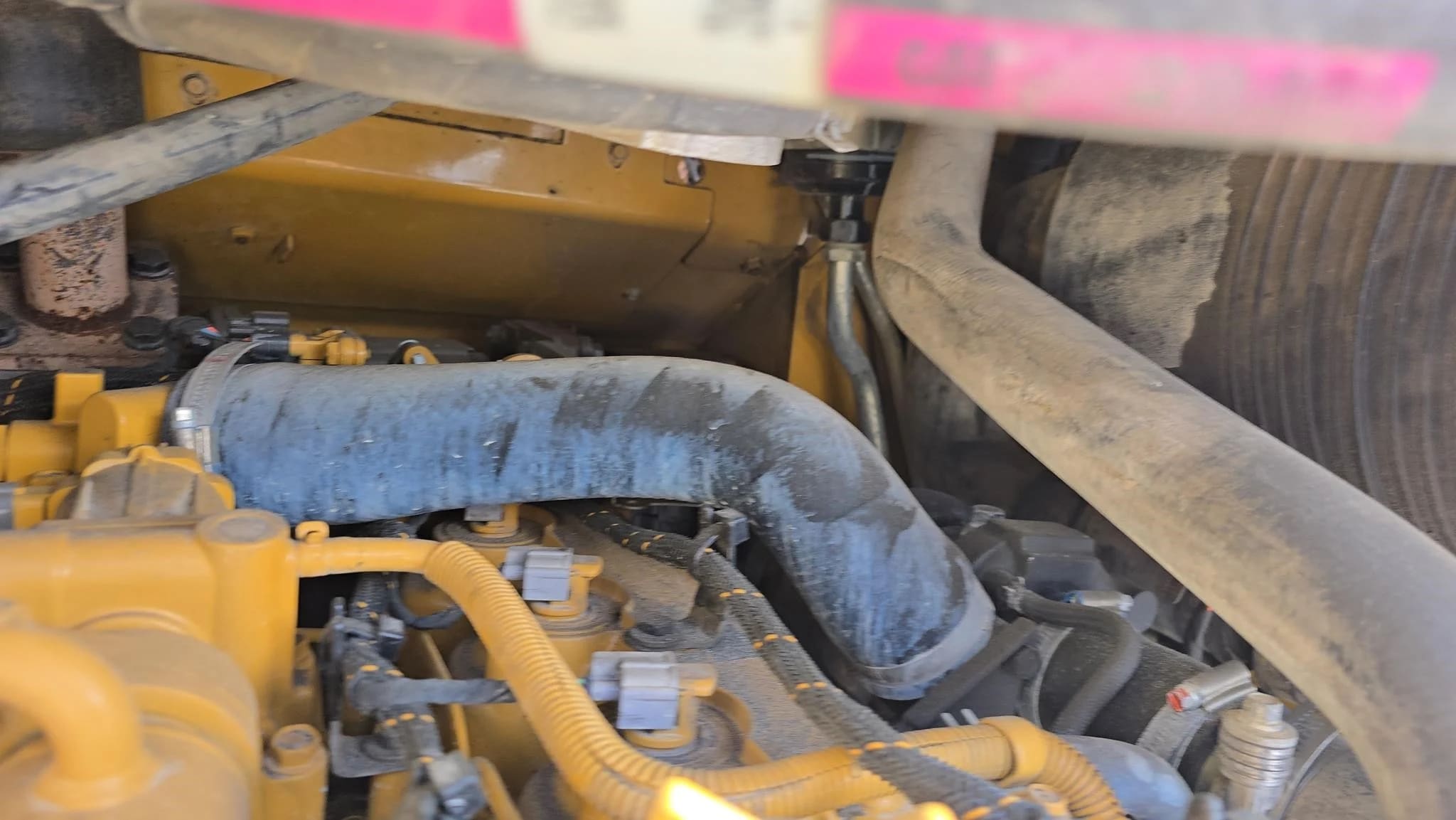

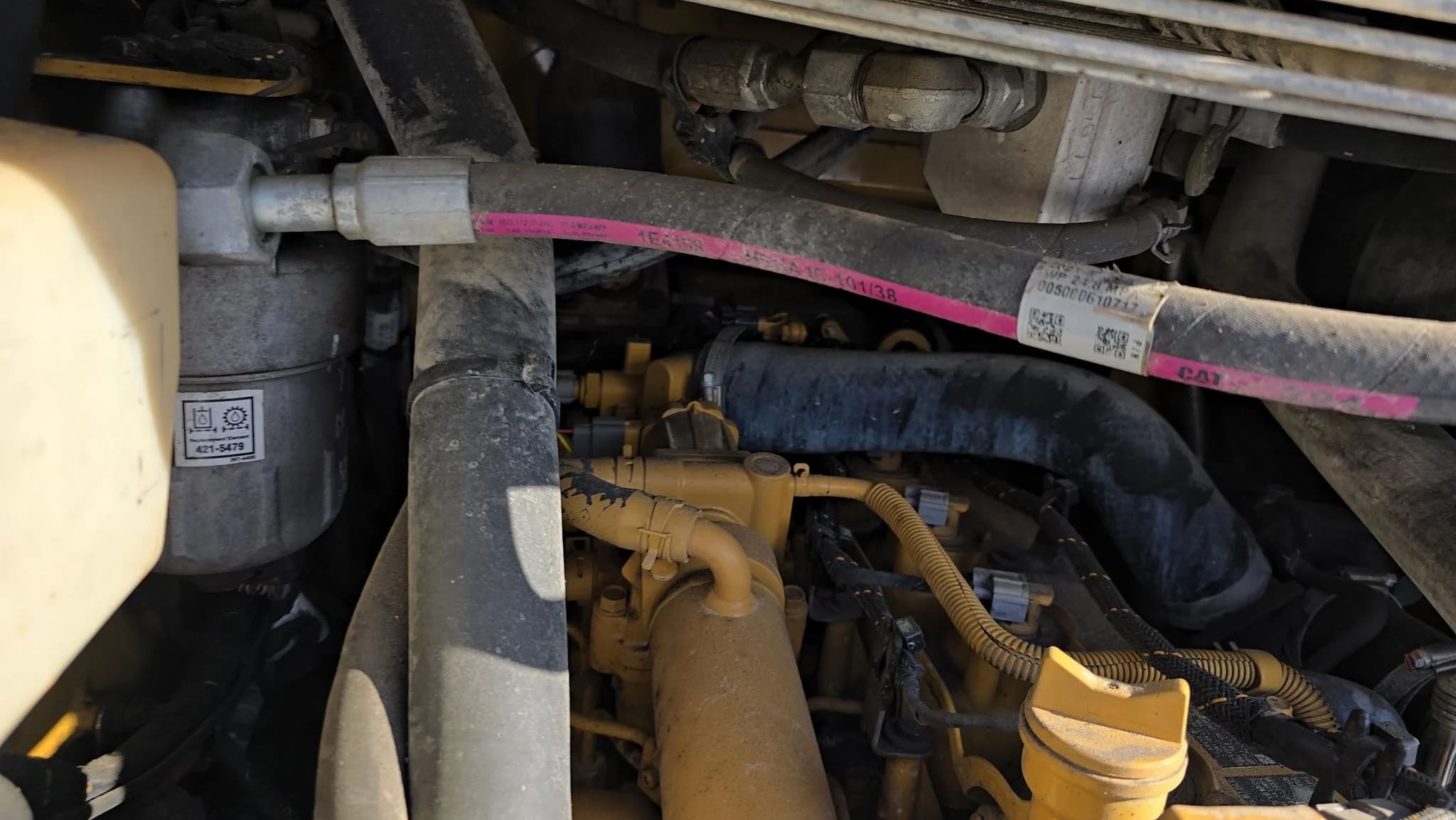

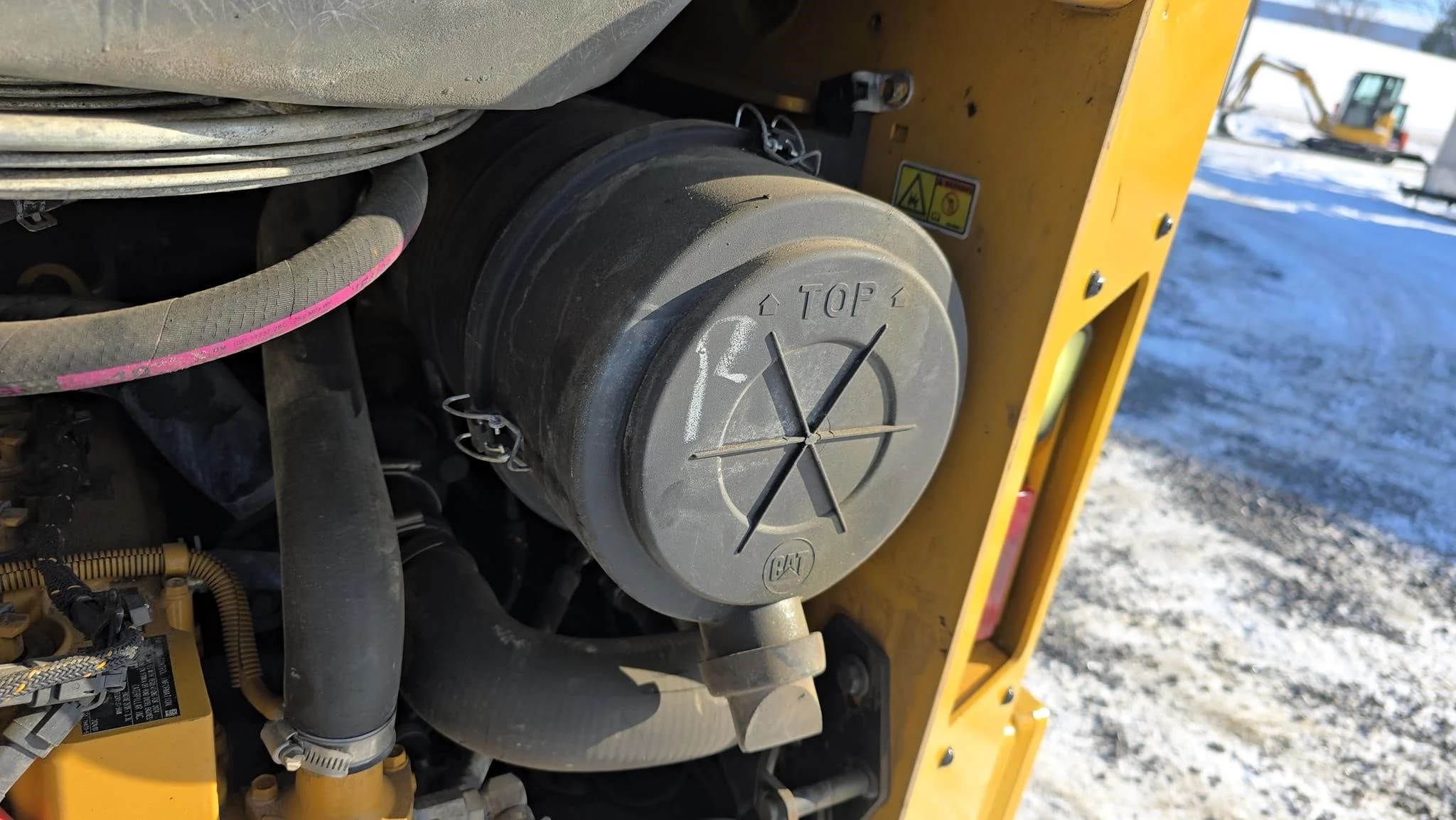

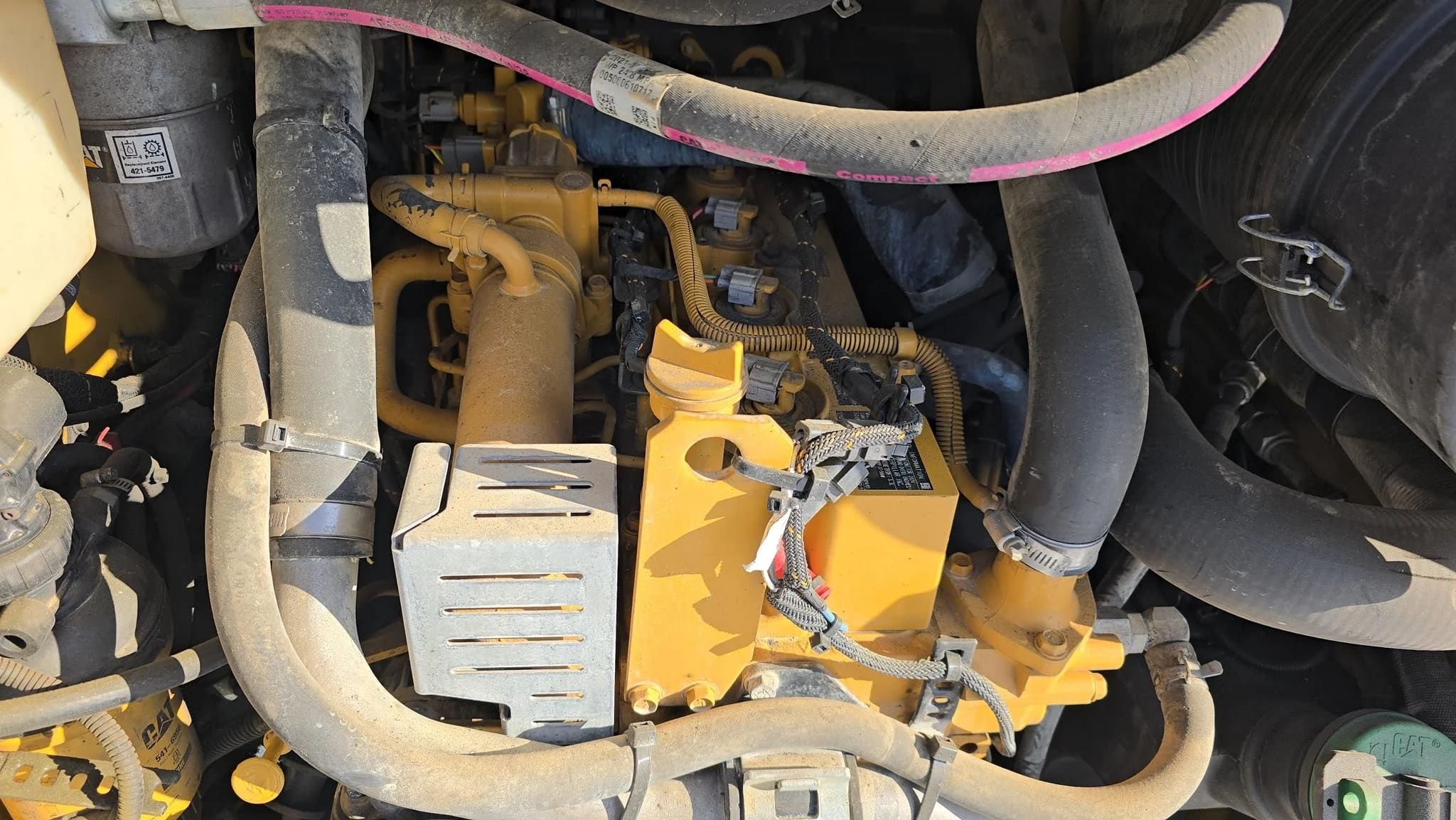

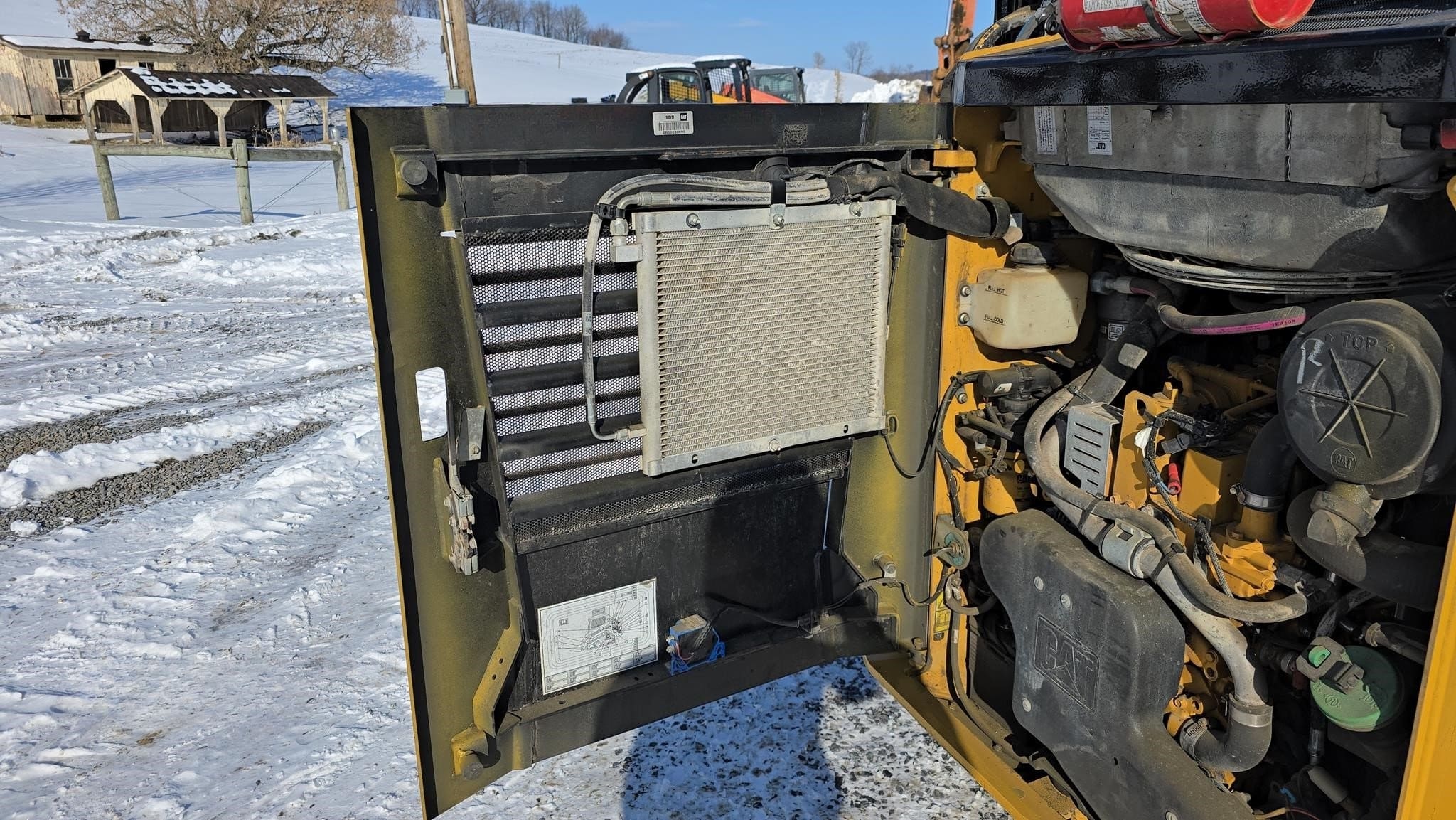

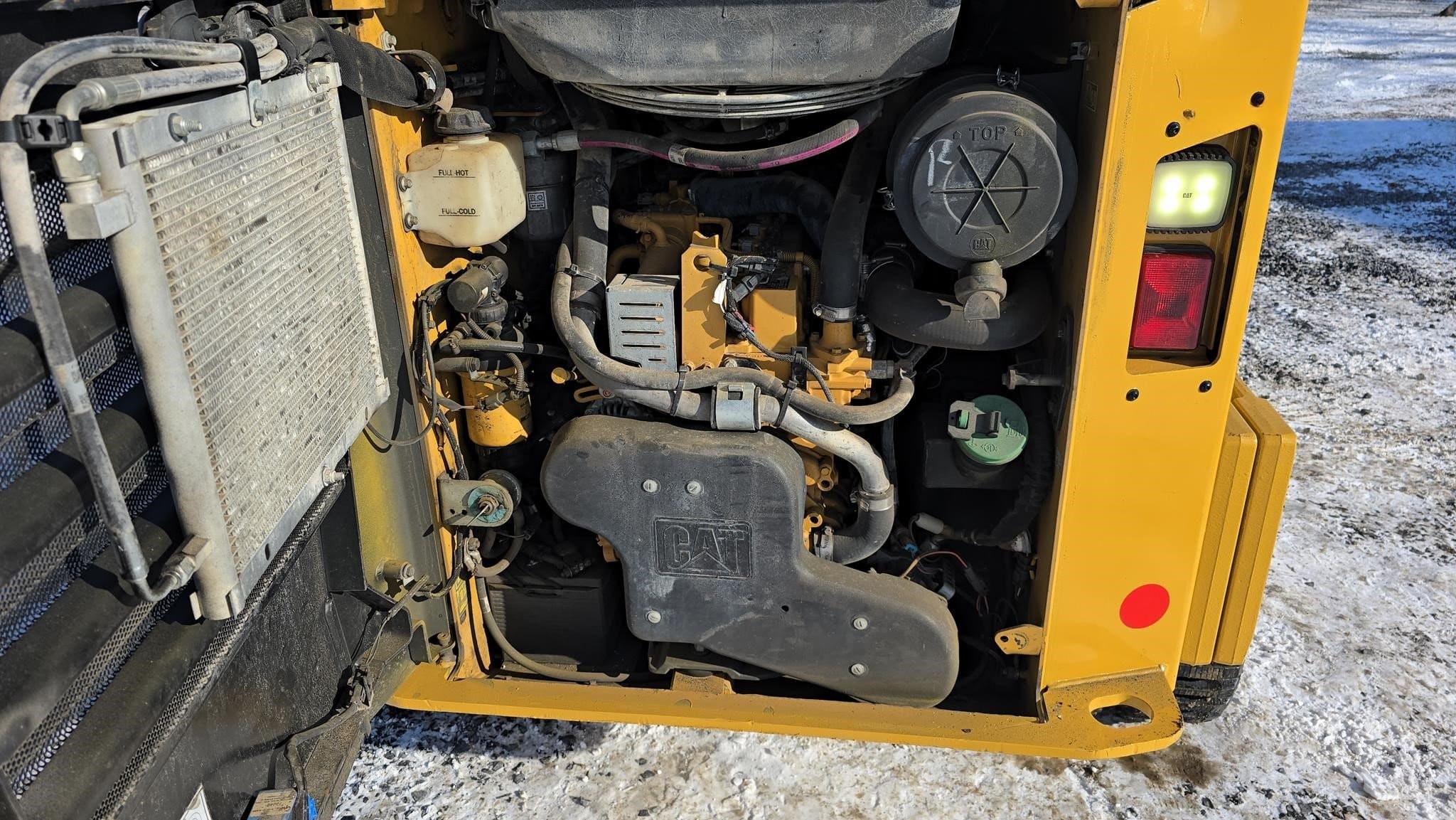

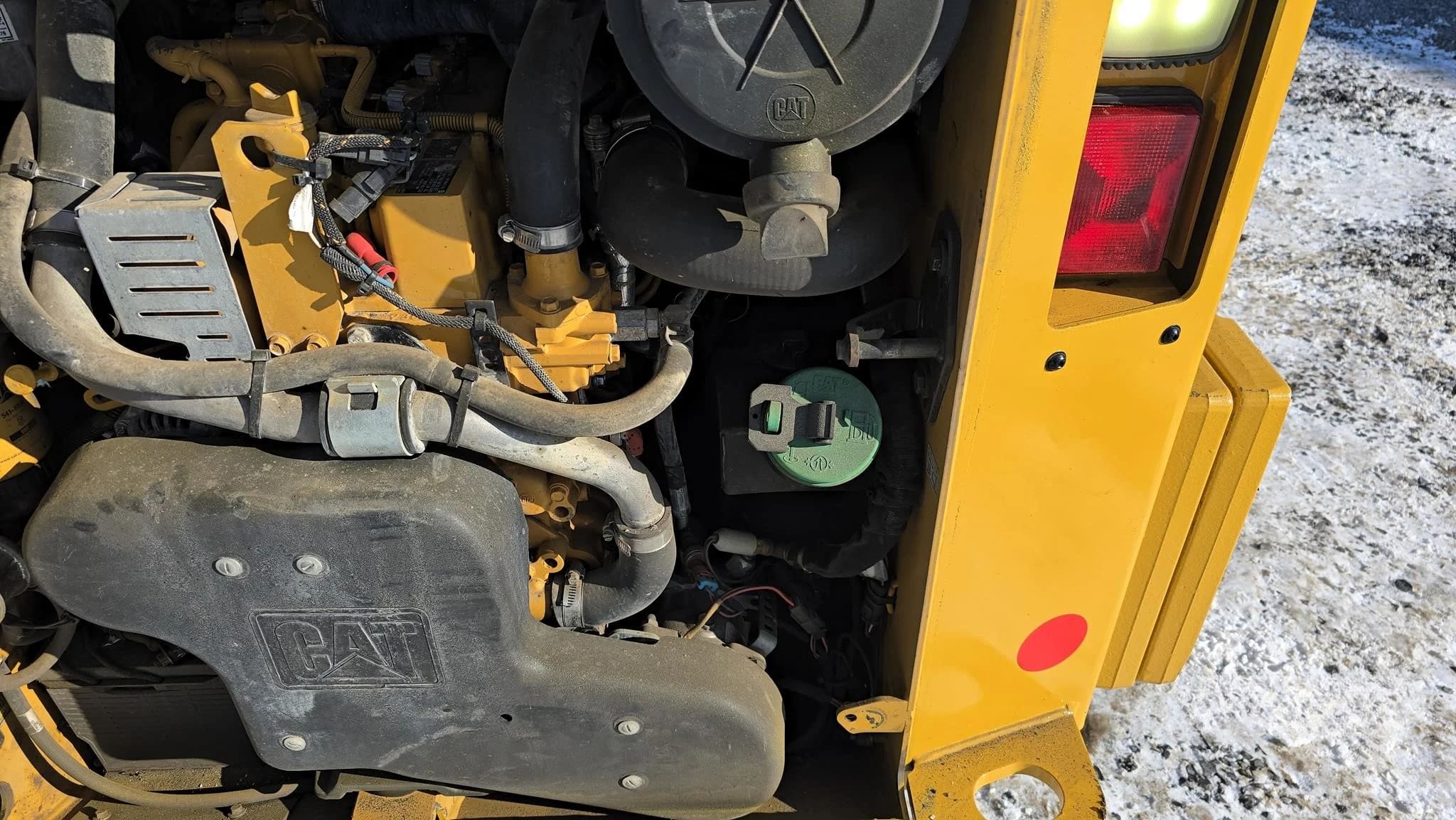

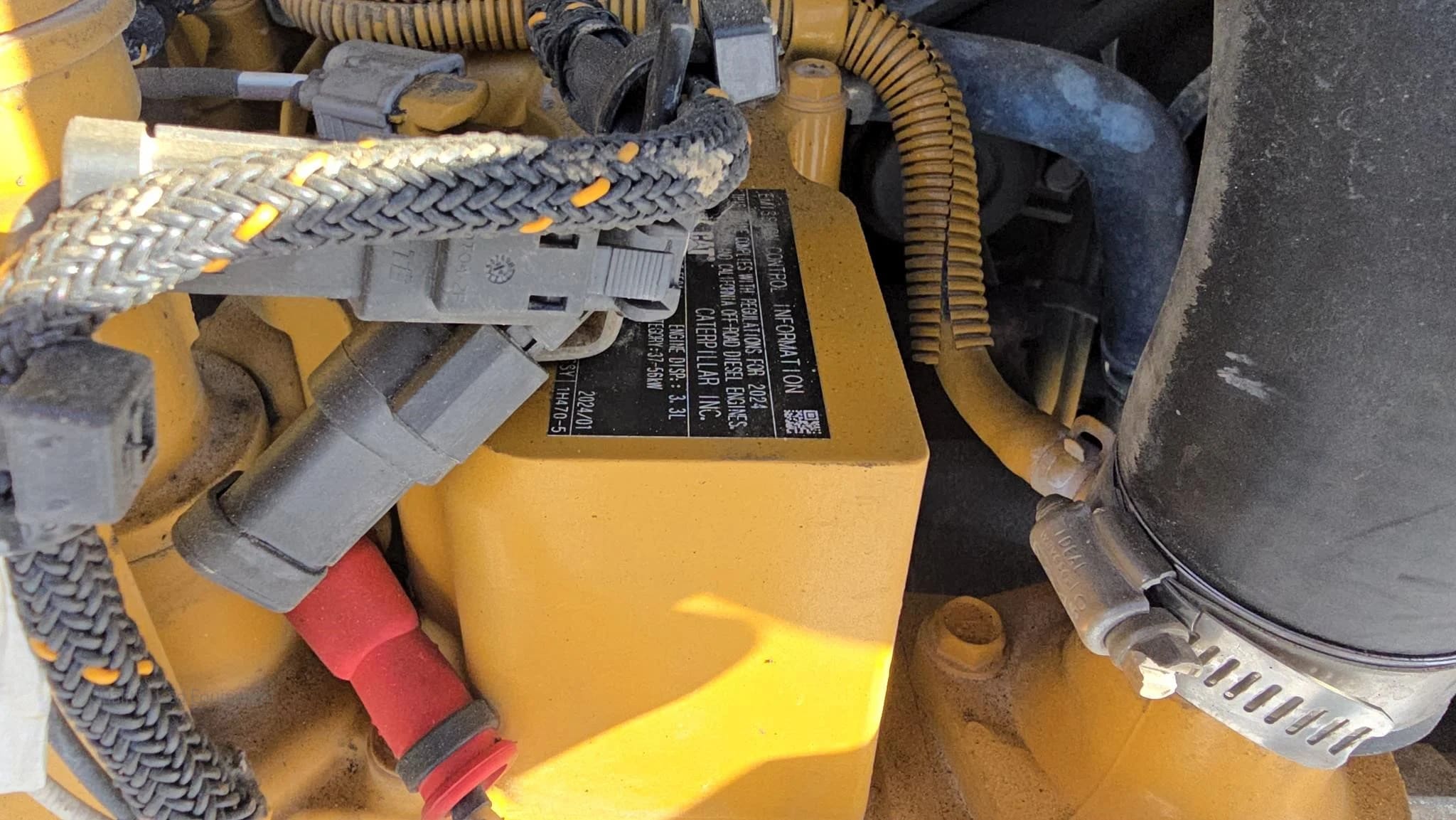

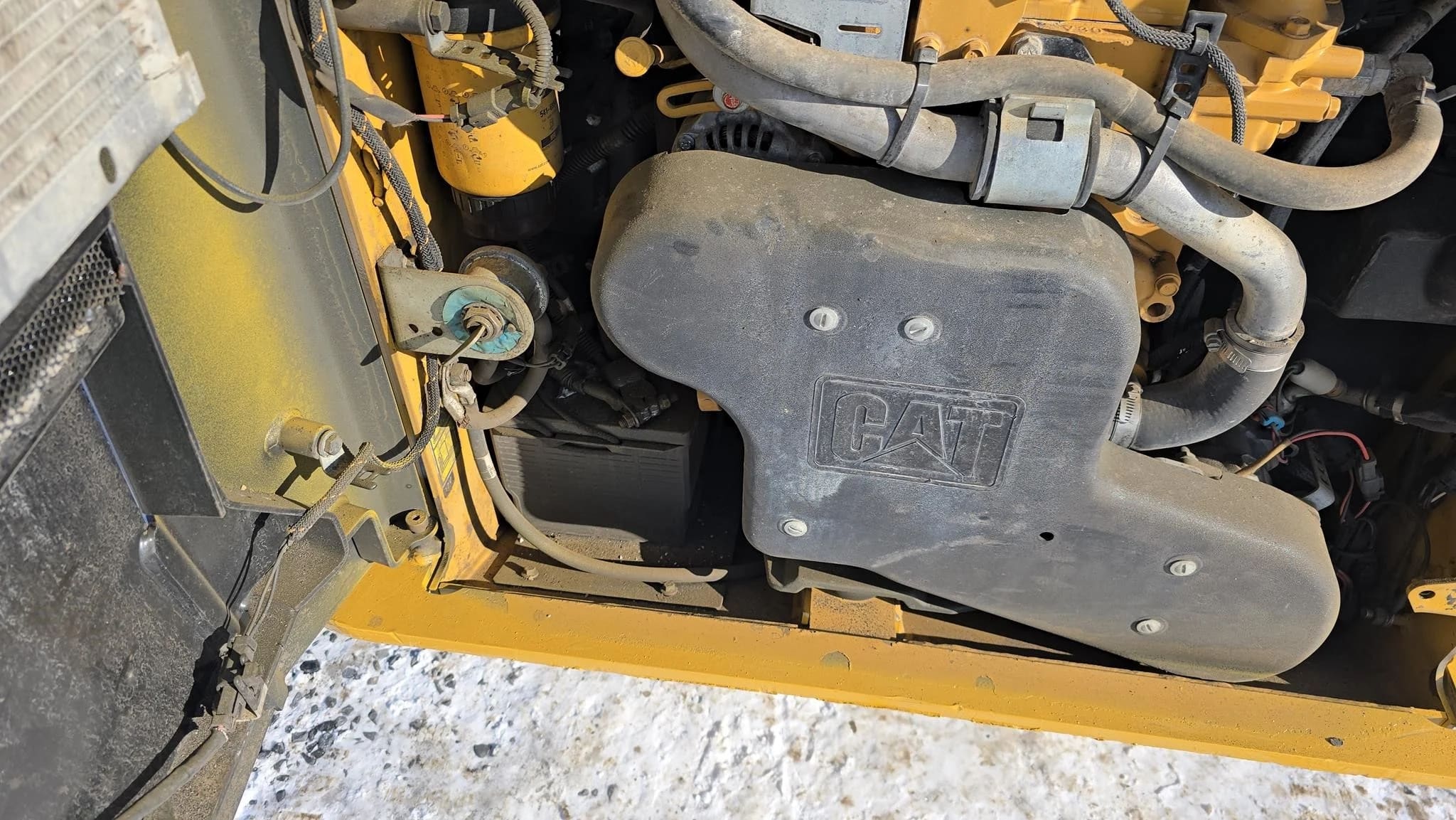

Engine:

Engine Make: DIT
Engine Model: Cat C3.3B
Gross Power: 74.3hp
Net Power: 73.2hp
Peak Torque: 195.5lb ft
Torque Measured @: 1500rpm
Displacement: 203cu in
Bore: 3.7in
Stroke: 4.7in
Net Power - Iso 9249: 73.9hp
Gross Power - Sae J1995: 74.3hp
Engine Model: Cat C3.3B DIT (turbo)
Net Power - Sae 1349: 73.2hp
Peak Torque - 1,500 Rpm - Sae J1995: 195lb ft

Operational:

Operating Weight: 8847.2lb
Cooling System Fluid Capacity: 3.7gal
Fuel Capacity: 27.8gal
Engine Oil Capacity: 3gal
Hydraulic System Fluid Capacity: 13.3gal
Operating Voltage: 12V
Alternator Supplied Amperage: 80amps
Max Speed - Low Range: 6mph
Max Speed - High Range: 8.6mph

Power Train:

Travel Speed - Forward Or Reverse - One Speed: 5.9mph
Travel Speed - Forward Or Reverse - Two Speed: 8.5mph

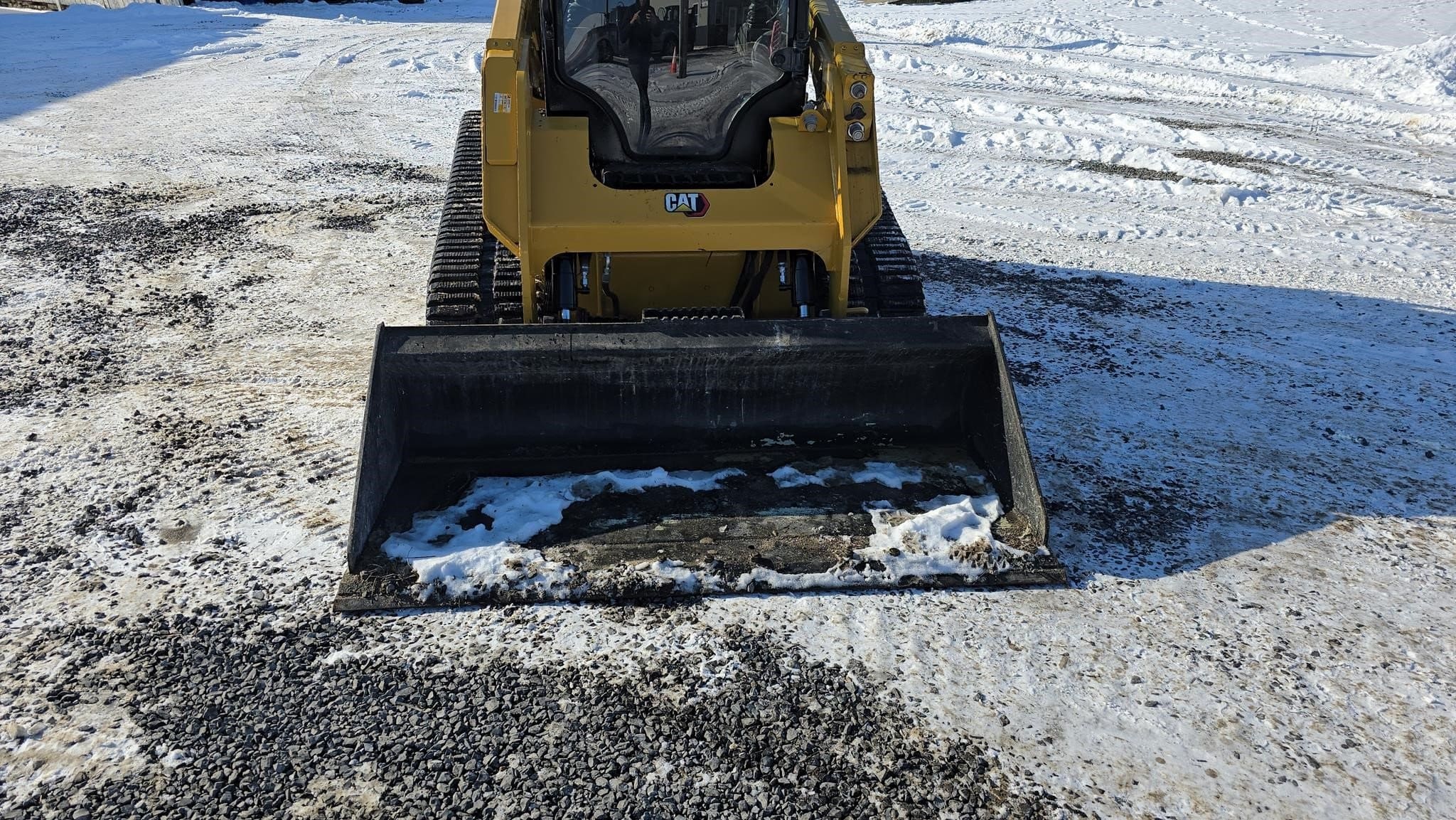

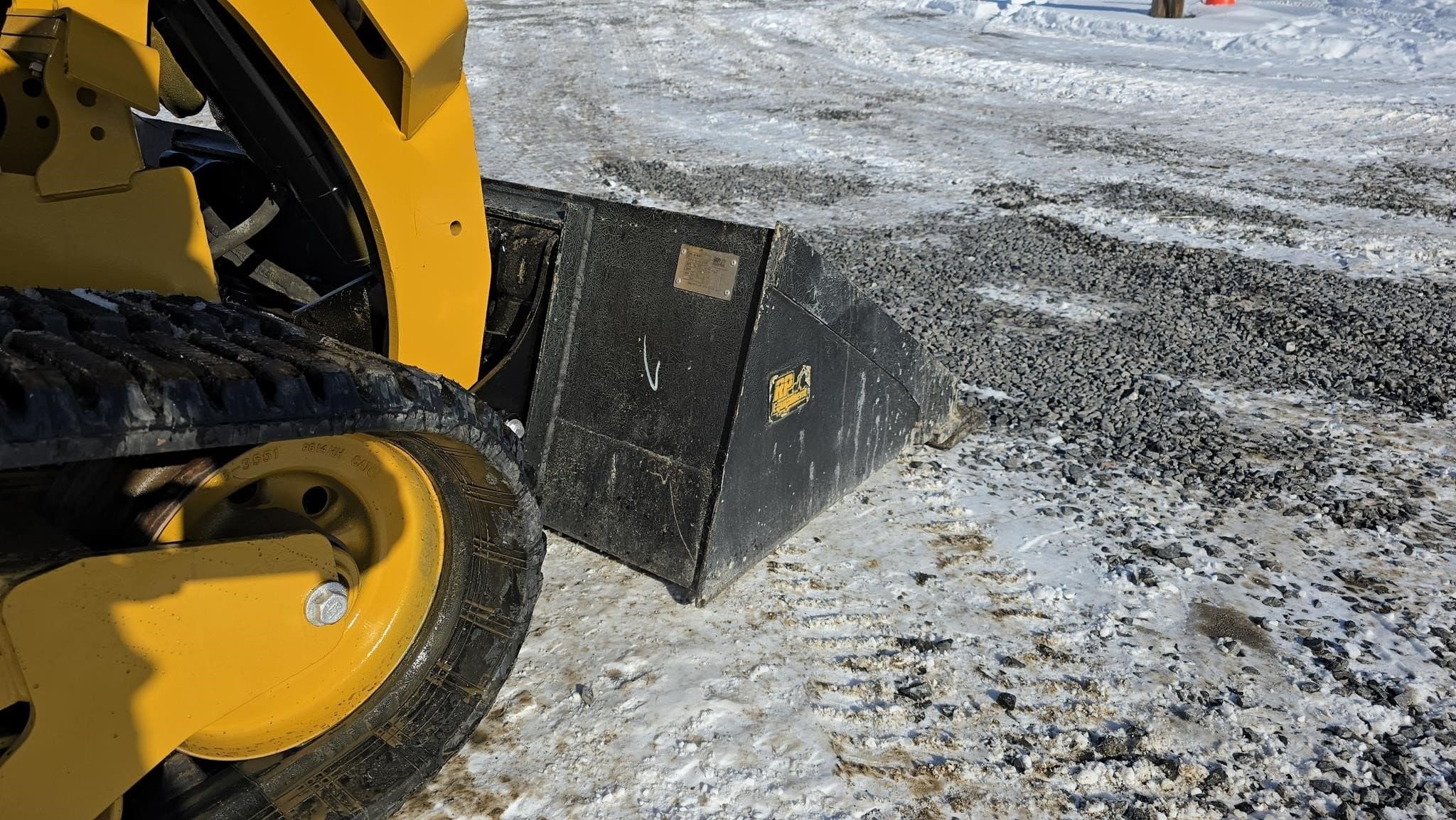

Loader:

Breakout Force: 5035.4lb
Tipping Load: 5800.4lb
Operating Load: 2899.1lb

Weights:

Operating Weight: 8945lb
Operating Weight - 320 Mm/12.6 In Tracks: 8846lb
Operating Weight - 400 Mm/15.7 In Tracks: 8945lb

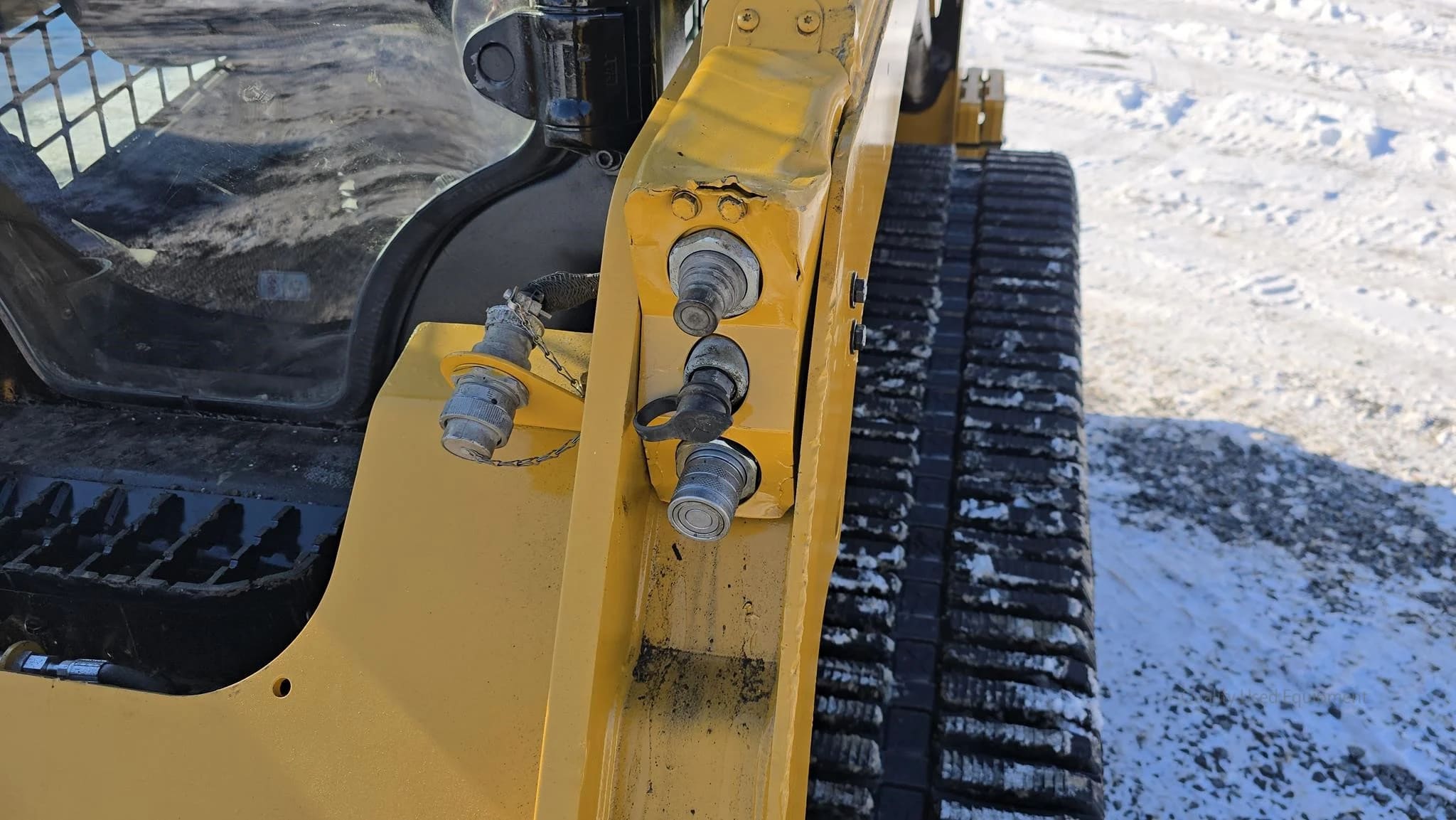

Hydraulic:

Pump Flow: 20.1gal/min
Relief Valve Pressure: 3335.9psi

Hydraulic System:

Hydraulic Flow - Standard - Loader Hydraulic Pressure: 3335 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow: 20 gal/min
Hydraulic Flow - Standard - Hydraulic Power (Calculated): 39hp
Hydraulic Flow - High Flow - Hydraulic Power (Calculated): 58hp
Hydraulic Flow - High Flow - Loader Hydraulic Pressure: 3335 psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow: 30 gal/min

Operating Specifications:

Rated Operating Capacities - 50% Tipping Load: 2900lb
Rated Operating Capacities - 35% Tipping Load: 2030lb
Rated Operating Capacity With Optional Counterweight: 3100lb
Tipping Load: 5800lb
Breakout Force - Tilt Cylinder: 5035lb
Ground Contact Area - With 400 Mm/15.7 In Track: 1848in2
Ground Pressure - With 400 Mm/15.7 In Track: 4.8 psi
Ground Contact Area - With 320 Mm/12.6 In Track: 1483in2
Ground Pressure - With 320 Mm/12.6 In Track: 6 psi

Service Refill Capacities:

Cooling System: 3.7gal
Fuel Tank: 27.7gal
Hydraulic Tank: 10.3gal
Engine Crankcase: 3gal
Hydraulic System: 13.2gal

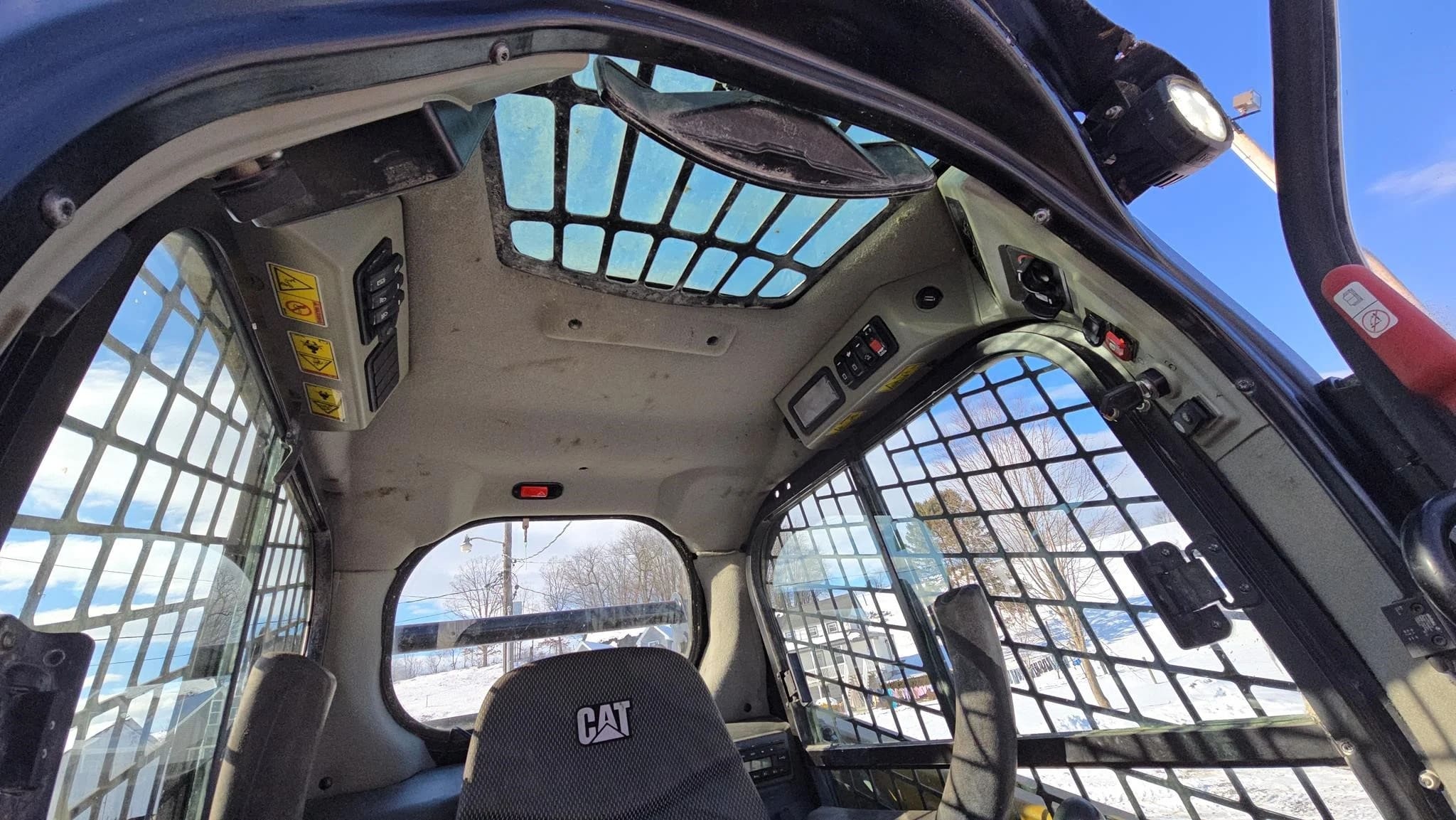

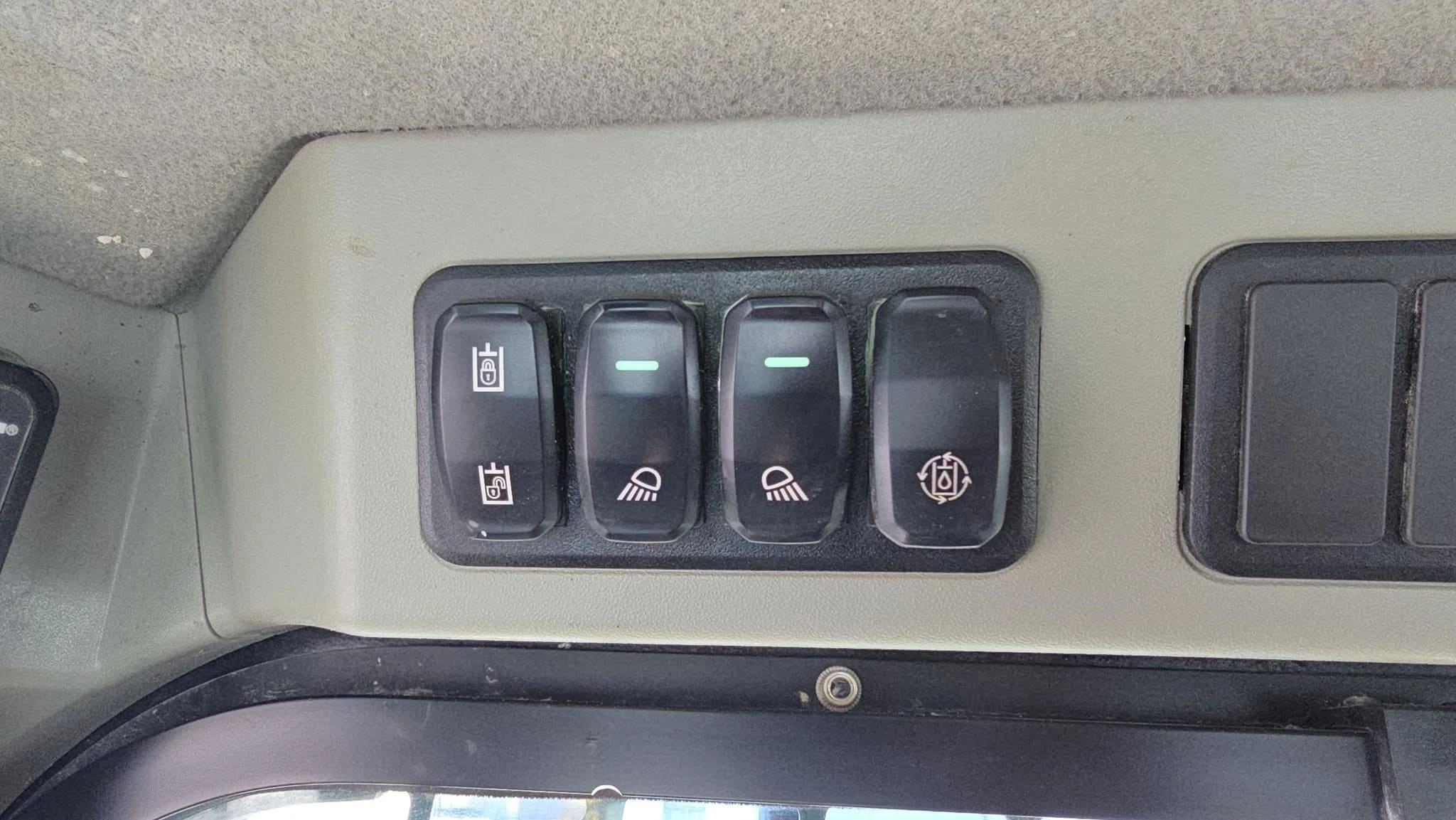

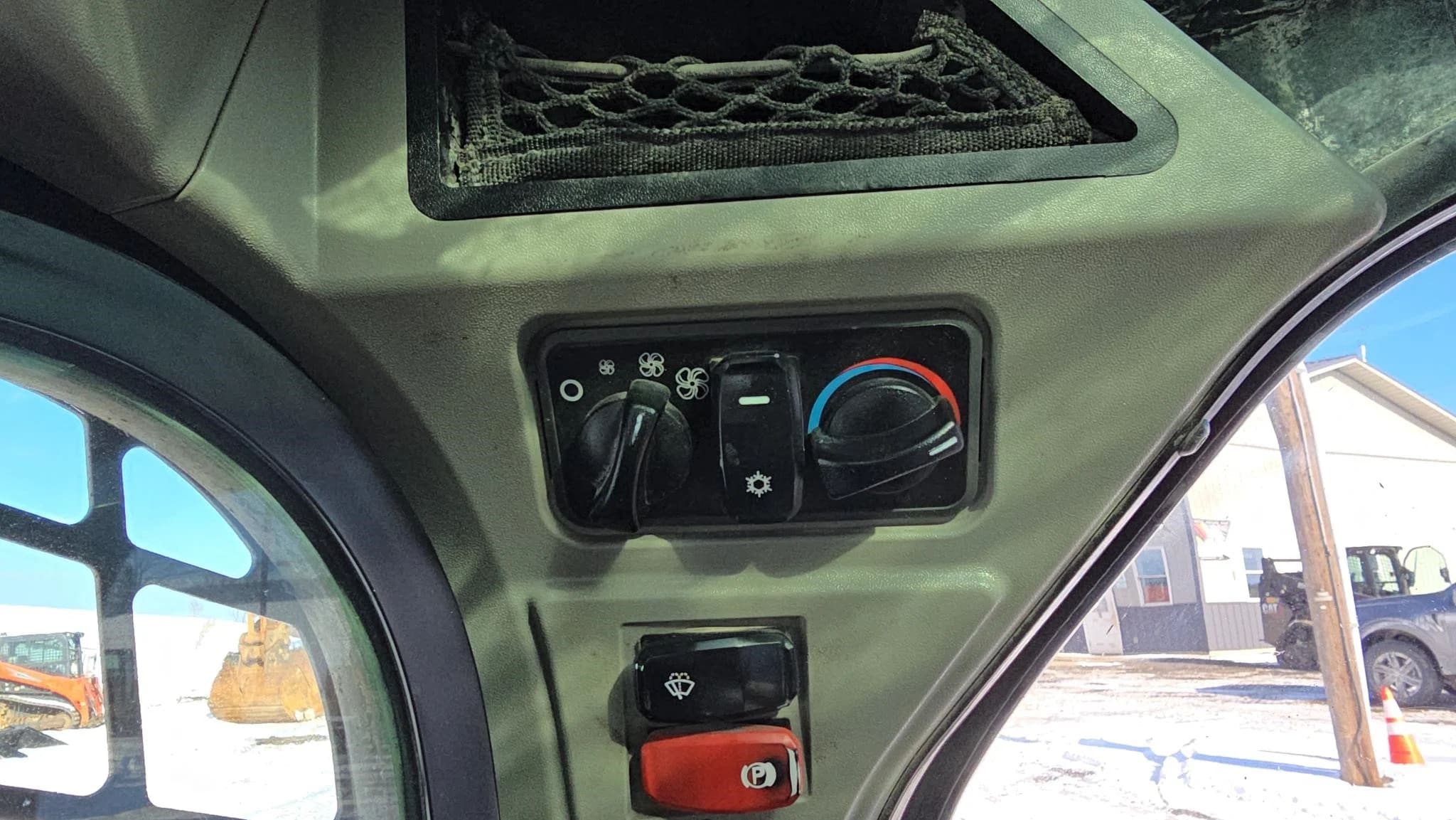

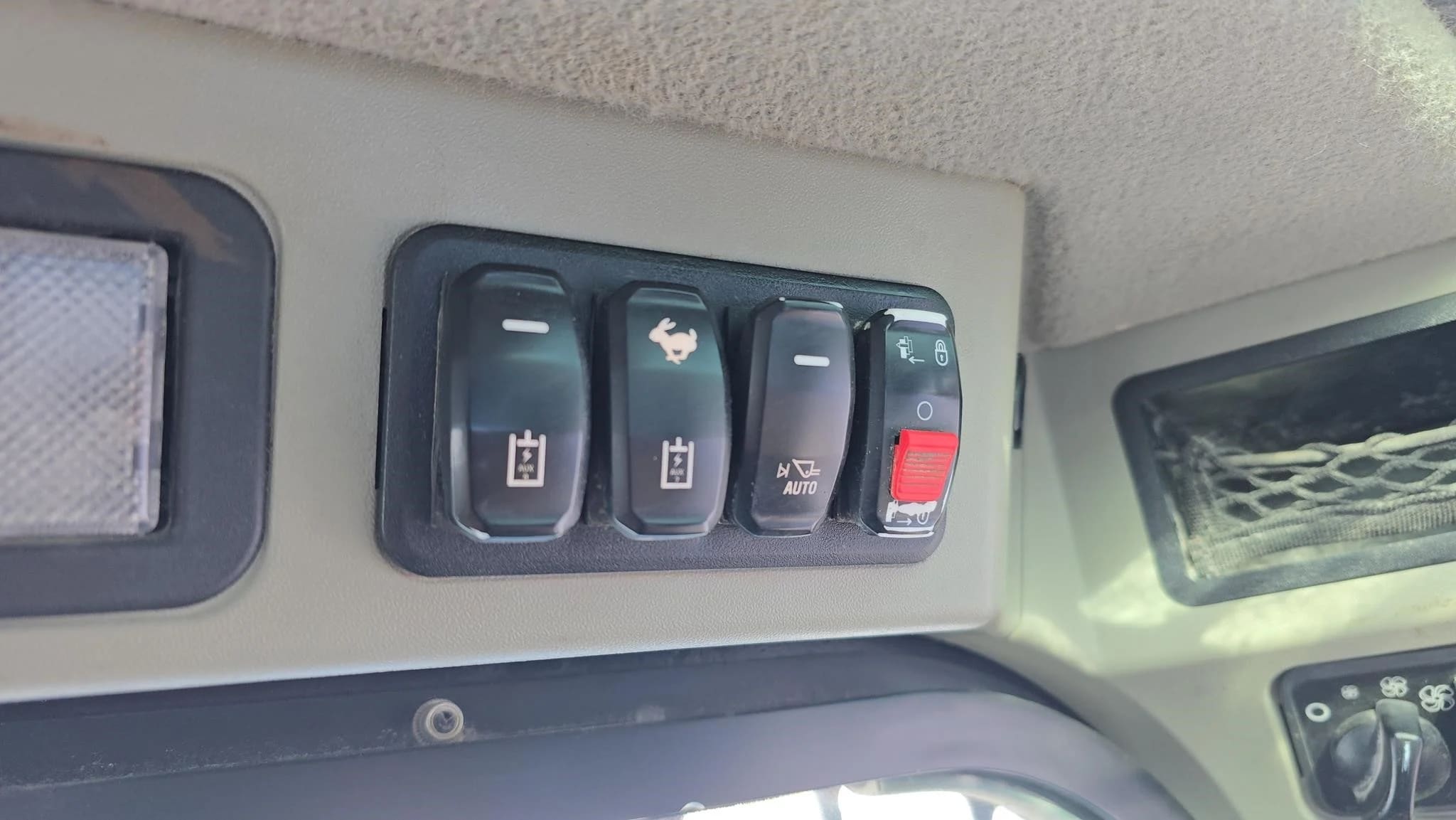

Cab:

Rops: ISO 3471:2008
Fops: ISO 3449:2005 Level I
Fops Level Ii: ISO 3449:2005 Level II
